Volume, SM-Bank 166

The cube and cylinder below both have the same volume.


  1. Calculate the volume of the cube in cubic centimetres.  (2 marks)

  2. Calculate the height of the cylinder, \(\large h\), in centimetres. Give your answer correct to 1 decimal place.  (2 marks)
Show Answers Only

a.    \(64\ \text{cm}^3\)

b.    \(5.1\ \text{cm (1 d.p.)}\)

Show Worked Solution


a.    \(V\) \(=l\times b\times h\)
    \(=4^3\)
    \(=64\)


\(\therefore\ \text{The volume of the cube is 64 cm}^3\)


b.    \(\text{Diameter = 4 cm}\ \longrightarrow\ \text{Radius = 2 cm}\)

\(V\) \(=\pi r^2h\)
\(64\) \(=\pi\times 2^2\times h\)
\(64\) \(=4\pi h\)
\(\therefore\ h\) \(=\dfrac{64}{4\pi}\)
  \(=5.092\dots\approx 5.1\ \text{(1 d.p.)}\)


\(\therefore\ \text{The height of the cylinder is approximately 5.1 cm}\)

Volume, SM-Bank 165

The cylinder and rectangular prism below both have the same volume.


  1. Calculate the volume of the cylinder in cubic centimetres, correct to 2 decimal places.  (2 marks)

  2. Calculate the length of the side labelled \(\large x\), in the rectangular prism. Give your answer correct to 1 decimal place.  (2 marks)
Show Answers Only

a.    \(314.16\ \text{cm}^3\ \text{(2 d.p.)}\)

b.    \(9.8\ \text{cm (1 d.p.)}\)

Show Worked Solution


a.    \(\text{Diameter = 10 cm }\longrightarrow\ \text{Radius = 5 cm}\)

\(V\) \(=\pi r^2h\)
  \(=\pi\times 5^2\times 4\)
  \(=314.159\dots\)
  \(\approx 314.16\ \text{(2 d.p.)}\)


\(\therefore\ \text{The volume of the cylinder is approximately 314.16 cm}^3\)


b.    \(V\) \(=l\times b\times h\)
  \(314.16\) \(=8\times x\times 4\)
  \(314.16\) \(=32x\)
  \(\therefore\ x\) \(=\dfrac{314.16}{32}\)
    \(=9.8175\)
    \(\approx 9.8\ \text{(1 d.p.)}\)


\(\therefore\ \text{The side labelled }x\ \text{is approximately 9.8 cm in length}\)

Volume, SM-Bank 164

A half-cylinder has a height of 44 millimetres and a diameter of 20 millimetres. Calculate the volume of the half-cylinder in cubic centimetres, giving your answer as an exact value in terms of \(\pi\).  (2 marks)

Show Answers Only

\(2200\pi\ \text{cm}^3\)

Show Worked Solution

\(\text{NOTE: change measurements to centimetres before calculations}\)

\(V\) \(=\dfrac{1}{2}\pi r^2h\)
  \(=\dfrac{1}{2}\times\pi\times 10^2\times 44\)
  \(=2200\pi\)


\(\therefore\ \text{The exact volume of the half-cylinder is }2200\pi\ \text{cm}^3\)

Volume, SM-Bank 163

A quarter-cylinder has a height of 160 centimetres and a radius of 800 centimetres . Calculate the volume of the quarter-cylinder in cubic metres, giving your answer as an exact value in terms of \(\pi\).  (2 marks)

Show Answers Only

\(25.6\pi\ \text{m}^3\)

Show Worked Solution

\(\text{NOTE: change measurements to metres before calculations}\)

\(V\) \(=\dfrac{1}{4}\pi r^2h\)
  \(=\dfrac{1}{4}\times\pi\times 8^2\times 1.6\)
  \(=25.6\pi\)


\(\therefore\ \text{The exact volume of the quarter-cylinder is }25.6\pi\ \text{m}^3\)

Volume, SM-Bank 162

A half-cylinder has a height of 12 centimetres and a radius of 9 centimetres. Calculate the volume of the half-cylinder, giving your answer as an exact value in terms of \(\pi\).  (2 marks)

Show Answers Only

\(486\pi\ \text{cm}^3\)

Show Worked Solution
\(V\) \(=\dfrac{1}{2}\pi r^2h\)
  \(=\dfrac{1}{2}\times\pi\times 9^2\times 12\)
  \(=486\pi\)


\(\therefore\ \text{The exact volume of the half-cylinder is }486\pi\ \text{cm}^3\)

Volume, SM-Bank 161

A right cylinder has a height of 100 millimetres and a radius of 1.1 millimetres. Calculate the volume of the cylinder, giving your answer as an exact value in terms of \(\pi\).  (2 marks)

Show Answers Only

\(121\large\pi\ \)\(\text{mm}^3\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
  \(=\pi\times 1.1^2\times 100\)
  \(=121\large\pi\)


\(\therefore\ \text{The exact volume of the cylinder is }121\large\pi\ \)\(\text{mm}^3\)

Volume, SM-Bank 160

A right cylinder has a height of 7 metres and a radius of 4 metres. Calculate the volume of the cylinder, giving your answer as an exact value in terms of \(\pi\).  (2 marks)

Show Answers Only

\(112\large\pi\ \)\(\text{m}^3\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
  \(=\pi\times 4^2\times 7\)
  \(=112\large\pi\)


\(\therefore\ \text{The exact volume of the cylinder is }112\large\pi\ \)\(\text{m}^3\)

Volume, SM-Bank 159

A right cylinder has a volume of \(11\ 451\) cubic metres. Calculate the radius of the cylinder if the height is 45 metres.

Give your answer to the nearest whole centimetre.  (2 marks)

Show Answers Only

\(9\ \text{m}\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
\(11\ 451\) \(=\pi\times r^2\times 45\)
\(11\ 451\) \(=10\pi\times r^2\)
\(r^2\) \(=\dfrac{11\ 451}{45\pi}\)
\(r^2\) \(=80.999\dots\)
\(r\) \(=\sqrt{80.999}=8.999\dots\)
\(r\) \(\approx 9\ \text{m (nearest whole m)}\)


\(\therefore\ \text{The radius of the cylinder is approximately 9 m}\)

Volume, SM-Bank 158

A right cylinder has a volume of 22 cubic metres. Calculate the diameter of the cylinder if the height is 7 metres.

Give your answer to the nearest whole metre.  (3 marks)

Show Answers Only

\(2\ \text{m}\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
\(22\) \(=\pi\times r^2\times 7\)
\(22\) \(=7\pi\times r^2\)
\(r^2\) \(=\dfrac{22}{7\pi}\)
\(r^2\) \(=1.000\dots\)
\(r\) \(=\sqrt{1.000}=1.000\dots\)
\(r\) \(\approx 1\ \text{m (nearest whole m)}\)


\(\therefore\ \text{The diameter of the cylinder is approximately 2 m}\)

Volume, SM-Bank 157

A right cylinder has a volume of 8482.3 cubic millimetres. Calculate the diameter of the cylinder if the height is 12 millimetres.

Give your answer to the nearest whole millimetre.  (3 marks)

Show Answers Only

\(30\ \text{mm}\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
\(8482.3\) \(=\pi\times r^2\times 12\)
\(8482.3\) \(=12\pi\times r^2\)
\(r^2\) \(=\dfrac{8482.3}{12\pi}\)
\(r^2\) \(=224.999\dots\)
\(r\) \(=\sqrt{224.999}=14.999\dots\)
\(r\) \(\approx 15\ \text{mm (nearest whole mm)}\)


\(\therefore\ \text{The diameter of the cylinder is approximately 30 mm}\)

Volume, SM-Bank 156

A right cylinder has a volume of \(10\ 178.76\) cubic centimetres. Calculate the radius of the cylinder if the height is 10 centimetres.

Give your answer to the nearest whole centimetre.  (2 marks)

Show Answers Only

\(18\ \text{cm}\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
\(10\ 178.76\) \(=\pi\times r^2\times 10\)
\(10\ 178.76\) \(=10\pi\times r^2\)
\(r^2\) \(=\dfrac{10\ 178.76}{10\pi}\)
\(r^2\) \(=323.999\dots\)
\(r\) \(=\sqrt{323.9999}=17.999\dots\)
\(r\) \(\approx 18\ \text{cm (nearest whole centimetre)}\)


\(\therefore\ \text{The radius of the cylinder is approximately 18 cm}\)

Volume, SM-Bank 155

A right cylinder has a volume of 50.27 cubic millimetres. Calculate the height of the cylinder if the radius is 2 millimetres.

Give your answer to the nearest whole millimetre.  (2 marks)

Show Answers Only

\(4\ \text{mm}\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
\(50.27\) \(=\pi\times 2^2\times h\)
\(50.27\) \(=4\pi\times h\)
\(h\) \(=\dfrac{50.27}{4\pi}\)
  \(=4.00\dots\)
  \(\approx 4\ \text{mm (nearest whole millimetre)}\)


\(\therefore\ \text{The height of the cylinder is approximately 4 mm}\)

Volume, SM-Bank 154

A right cylinder has a volume of 4021 cubic metres. Calculate the height of the cylinder if the radius is 8 cm.

Give your answer to the nearest whole metre.  (2 marks)

Show Answers Only

\(20\ \text{m}\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
\(4021\) \(=\pi\times 8^2\times h\)
\(4021\) \(=64\pi\times h\)
\(h\) \(=\dfrac{4021}{64\pi}\)
  \(=19.998\dots\)
  \(\approx 20\ \text{m (nearest whole metre)}\)


\(\therefore\ \text{The height of the cylinder is approximately 20 m}\)

Volume, SM-Bank 153

A right cylinder has a volume of 2827 cubic centimetres. Calculate the height of the cylinder if the radius is 10 cm.

Give your answer to the nearest whole centimetre.  (2 marks)

Show Answers Only

\(9\ \text{cm}\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
\(2827\) \(=\pi\times 10^2\times h\)
\(2827\) \(=100\pi\times h\)
\(h\) \(=\dfrac{2827}{100\pi}\)
  \(=8.998\dots\)
  \(\approx 9\ \text{cm (nearest whole centimetre)}\)


\(\therefore\ \text{The height of the cylinder is approximately 9 cm}\)

Volume, SM-Bank 152

The 3D shape below is a composite prism consisting of a half-cylinder and a rectangular prism.


Calculate the volume of the of the prism in cubic centimetres, giving your answer correct to one decimal place.  (2 marks)

Show Answers Only

\( 4881.7\ \text{cm}^3\ (\text{1 d.p.})\)

Show Worked Solution

\(\text{Diameter of cylinders = 10 cm  }\longrightarrow\  r=5\ \text{cm}\)

\(\text{Volume = rectangular prism + ½ cylinder}\)

\(\therefore\ V\) \(=l\times b\times h+\dfrac{1}{2}\times\pi r^2h\)
  \(=24\times 6.5\times 25+\dfrac{1}{2}\times\pi\times 5^2\times 25\)
  \(=3900+981.747\dots\)
  \(=4881.747\dots\)
  \(\approx 4881.7\ \text{cm}^3\ (\text{1 d.p.})\)

Volume, SM-Bank 151

A piece of metal in the shape of a rectangular prism has had two cylindrical holes, each with a diameter of 8 millimetres, drilled through it.


Calculate the volume of the remaining metal in cubic millimetres, giving your answer correct to one decimal place.  (2 marks)

Show Answers Only

\( 4937.6\ \text{mm}^3\ (\text{1 d.p.})\)

Show Worked Solution

\(\text{Diameter of cylinders = 8 mm  }\longrightarrow\  r=4\ \text{mm}\)

\(\text{Volume = rectangular prism – 2 × cylinders}\)

\(\therefore\ V\) \(=l\times b\times h-2\times\pi r^2h\)
  \(=32\times 16\times 12-2\times\pi\times 4^2\times 12\)
  \(=6144-1206.371\dots\)
  \(=4937.628\dots\)
  \(\approx 4937.6\ \text{mm}^3\ (\text{1 d.p.})\)

Volume, SM-Bank 150

A a skateboard ramp has been constructed using a rectangular prism that has had a quarter-cylinder removed to create the curved surface.


Calculate the volume of the skateboard ramp, giving your answer correct to one decimal place.  (2 marks)

Show Answers Only

\( 92.2\ \text{m}^3\ (\text{1 d.p.})\)

Show Worked Solution

\( V\) \(=l\times b\times h-\dfrac{1}{4}\times\pi r^2h\)
  \(=7\times 5\times 6-\dfrac{1}{4}\times\pi\times 5^2\times 6\)
  \(=210-117.809\dots\)
  \(=92.190\dots\)
  \(\approx 92.2\ \text{m}^3\ (\text{1 d.p.})\)

Volume, SM-Bank 149

A a chicken feeder has been constructed using a rectangular prism and a quarter-cylinder.


Calculate the volume of the chicken feeder, giving your answer correct to one decimal place.  (2 marks)

Show Answers Only

\( 61\ 703.4\ \text{cm}^3\ (\text{1 d.p.})\)

Show Worked Solution
\(V\) \(=\dfrac{1}{4}\times\pi r^2h+l\times b\times h\)
  \(=\dfrac{1}{4}\times\pi\times 24^2\times 60+24\times 24\times 60\)
  \(=27\ 143.360\dots+34\ 560\)
  \(=61\ 703.360\dots\)
  \(\approx 61\ 703.4\ \text{cm}^3\ (\text{1 d.p.})\)

Volume, SM-Bank 148

A large machinery storage shed has been constructed on a property. The shed is made up of a rectangular prism and a half cylinder.


Calculate the volume of the machinery shed, giving your answer to the nearest cubic metre.  (2 marks)

Show Answers Only

\(3126\ \text{m}^3\)

Show Worked Solution

\(\text{Diameter semi-circle = 12 m }\rightarrow\ \text{r = 6 m}\)

\(\therefore\ V\) \(=\dfrac{1}{2}\times\pi r^2h+l\times b\times h\)
  \(=\dfrac{1}{2}\times\pi\times 6^2\times 19+12\times 9\times 19\)
  \(=1074.424\dots+2052\)
  \(=3126.424\dots\)
  \(\approx 3126\ \text{m}^3\ (\text{nearest m}^3)\)

Volume, SM-Bank 147

A concrete half-pipe was constructed in a park. The pipe has a constant thickness 0.5 metres.


  1. Calculate the volume of the concrete used to create the half-pipe, giving your answer to the nearest cubic metre.  (2 marks)
  2. Calculate the capacity of the concrete used in kilolitres.  (1 mark)
Show Answers Only

a.    \(19\ \text{m}^3\)

b.    \(9\ \text{kL}\)

Show Worked Solution

a.    \(\text{diameter large semi-circle = 4 m }\rightarrow\ \text{R = 2 m}\)

\(\text{diameter small semi-circle = 3 m }\rightarrow\ \text{r = 1.5 m}\)

\(\therefore\ V\) \(=\dfrac{1}{2}\times\pi R^2h-\dfrac{1}{2}\times\pi r^2h\)
  \(=\dfrac{1}{2}\times\pi\times 2^2\times 7-\dfrac{1}{2}\times\pi\times 1.5^2\times 7\)
  \(=19.242\dots\)
  \(\approx 19\ \text{m}^3\ (\text{nearest m}^3)\)



b.    \(\text{1 kL = 1 m}^3\)

\(\therefore\ 19\ \text{m}^3\) \(=19\ \text{kL}\)

Volume, SM-Bank 146

Geraldine created a large chocolate mould in the shape of a half cylinder using her 3D printer.


  1. Calculate the volume of the mould, giving your answer to the nearest cubic centimetre.  (2 marks)
  2. Calculate the capacity of the mould in litres.  (1 mark)
Show Answers Only

a.    \(8310\ \text{cm}^3\)

b.    \(8.31\ \text{L}\)

Show Worked Solution

a.    \(\text{diameter = 23 cm }\rightarrow\ \text{radius = 11.5 cm}\)

\(\therefore\ V\) \(=\dfrac{1}{2}\times \pi r^2h\)
  \(=\dfrac{1}{2}\times \pi\times 11.5^2\times 41\)
  \(=8309.512\dots\)
  \(\approx 8310\ \text{cm}^3\ \text{nearest cm}^3)\)



b.    \(\text{1 litre = 1000 cm}^3\)

\(\therefore\ 8310\ \text{cm}^3\) \(=\Bigg(\dfrac{8310}{1000}\Bigg)\ \text{L}\)
  \(=8.31\ \text{L}\)

Volume, SM-Bank 145

Calculate the volume of the figure below in cubic millimetres. Give your answer correct to 1 decimal place.  (2 marks)


Show Answers Only

\(942.5\ \text{mm}^3\)

Show Worked Solution

\(\text{Figure is }\dfrac{60}{360}=\dfrac{1}{6}\ \text{of a cylinder}\)

\(\therefore\ V\) \(=\dfrac{1}{6}\times \pi r^2h\)
  \(=\dfrac{1}{6}\times \pi\times 10^2\times 18\)
  \(=942.477\dots\)
  \(\approx 942.5\ \text{mm}^3\ (\text{1 d.p.})\)

Volume, SM-Bank 144

Calculate the volume of the figure below in cubic metres. Give your answer correct to 1 decimal place.  (2 marks)


Show Answers Only

\(17.9\ \text{m}^3\)

Show Worked Solution

\(\text{Figure is }\dfrac{3}{4}\ \text{of a cylinder}\)

\(\therefore\ V\) \(=\dfrac{3}{4}\times \pi r^2h\)
  \(=\dfrac{3}{4}\times \pi\times 1.3^2\times 4.5\)
  \(=17.918\dots\)
  \(\approx 17.9\ \text{m}^3\ (\text{1 d.p.})\)

Volume, SM-Bank 143

Calculate the volume of the quarter cylinder below in cubic centimetres.  Give your answer correct to the nearest cubic centimetre.  (2 marks)


Show Answers Only

\(113\ \text{cm}^3\)

Show Worked Solution
\(V\) \(=\dfrac{1}{4}\times \pi r^2h\)
  \(=\dfrac{1}{4}\times \pi\times 4^2\times 9\)
  \(=113.097\dots\)
  \(\approx 113\ \text{cm}^3\ (\text{nearest cubic cm.})\)

Volume, SM-Bank 142

Calculate the volume of the cylinder below in cubic metres.  Give your answer correct to 2 decimal places.  (2 marks)


Show Answers Only

\(508\ 938.01\ \text{m}^3\)

Show Worked Solution

\(\text{diameter =180 m }\rightarrow\text{ radius = 90 m}\)

\(V\) \(=\pi r^2h\)
  \(=\pi\times 90^2\times 20\)
  \(=508\ 938.009\dots\)
  \(\approx 508\ 938.01\ \text{m}^3\ (\text{2 d.p.})\)

Volume, SM-Bank 141

Calculate the volume of the cylinder below in cubic metres.  Give your answer correct to 1 decimal place.  (2 marks)


Show Answers Only

\(23.5\ \text{m}^3\)

Show Worked Solution

\(\text{diameter = 2.4 m }\rightarrow\text{ radius = 1.2 m}\)

\(V\) \(=\pi r^2h\)
  \(=\pi\times 1.2^2\times 5.2\)
  \(=23.524\dots\)
  \(\approx 23.5\ \text{m}^3\ (\text{1 d.p.})\)

Volume, SM-Bank 140

Calculate the volume of the cylinder below in cubic centimetres.  Give your answer correct to 2 decimal places.  (2 marks)


Show Answers Only

\(1.78\ \text{cm}^3\)

Show Worked Solution

\(\text{diameter = 1.8 cm }\rightarrow\text{ radius = 0.9 cm}\)

\(V\) \(=\pi r^2h\)
  \(=\pi\times 0.9^2\times 0.7\)
  \(=1.781\dots\)
  \(\approx 1.78\ \text{cm}^3\ (\text{2 d.p.})\)

Volume, SM-Bank 139

Calculate the volume of the cylinder below in cubic metres.  Give your answer correct to 2 decimal places.  (2 marks)


Show Answers Only

\(9424.78\ \text{m}^3\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
  \(=\pi\times 10^2\times 30\)
  \(=9424.777\dots\)
  \(\approx 9424.78\ \text{m}^3\ (\text{2 d.p.})\)

Volume, SM-Bank 138

Calculate the volume of the cylinder below in cubic metres.  Give your answer correct to the nearest cubic metre.  (2 marks)


Show Answers Only

\(5\ \text{m}^3\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
  \(=\pi\times 0.6^2\times 4\)
  \(=4.523\dots\)
  \(\approx 5\ \text{m}^3\ (\text{nearest cubic metre})\)

Volume, SM-Bank 137

Calculate the volume of the cylinder below in cubic millimetres.  Give your answer correct to one decimal place.  (2 marks)


Show Answers Only

\(16\ 964.6\ \text{mm}^3\)

Show Worked Solution
\(V\) \(=\pi r^2h\)
  \(=\pi\times 15^2\times 24\)
  \(=16\ 964.600\dots\)
  \(\approx 16\ 964.6\ \text{mm}^3\ (\text{1 d.p.})\)

Volume, SM-Bank 014

A closed cylindrical water tank has external diameter 3.5 metres.

The external height of the tank is 2.4 metres.

The walls, floor and top of the tank are made of concrete 0.25 m thick.


Geometry and Trig, FUR2 2006 VCAA 3

  1. What is the internal radius, \(r\), of the tank?  (1 mark)

  2. What is the internal height, \(h\), of the tank?  (1 mark)

  3. Determine the maximum amount of water this tank can hold.
    Write your answer correct to the nearest cubic metre.  (2 marks)

Show Answers Only

a.    \(1.5\ \text{m}\)

b.    \(13\ \text{m}^3\ \text{(nearest m³)}\)

Show Worked Solution

a.   \(\text{Internal radius}\ (r)\)

\(=\dfrac{1}{2}\times (3.5-2\times 0.25)\)

\(=1.5\ \text{m}\)


b.    \(\text{Internal Height}\ (h)\) \(=2.4-(2\times 0.25)\)
    \(=1.9\ \text{m}\)



c.    \(\text{Volume}\) \(=\pi r^2 h\)
    \(=\pi\times 1.5^2\times 1.9\)
    \(=13.430\dots\)
    \(=13\ \text{m}^3\ \text{(nearest m³)}\)

Volume, SM-Bank 012

Tennis balls are packaged in cylindrical containers.

Frank purchases a container of tennis balls that holds three standard tennis balls, stacked one on top of the other.

This container has a radius of 3.4 cm and a height of 20.4 cm, as shown in the diagram below.


  1. Calculate the volume of the cylinder in cubic centimetres, correct to one decimal place.  (2 marks)


  2. If one tennis ball has a volume of 164.6 cm³, how much unused volume, in cubic centimetres, surrounds the tennis balls in this container?
    Round your answer to the nearest whole number.  (1 mark)

Show Answers Only

a.    \(740.9\ \text{cm}^3\ \text{(to 1 d.p.)}\)

b.    \(247\ \text{cm}^3\ \text{(nearest cm}^3 \text{)}\)

Show Worked Solution
a.
\(\text{Volume}\) \(=Ah\)
    \(=\pi\times 3.4^2\times 20.4\)
    \(= 740.86\dots\)
    \(=740.9\ \text{cm}^3\ \text{(to 1 d.p.)}\)



b.
\(\text{Unused volume}\) \(=\text{cylinder volume}-\text{volume of balls}\)
    \(= 740.9-3\times 164.6\)
    \(= 247.1\)
    \(=247\ \text{cm}^3\ \text{(nearest cm}^3 text{)}\)

Volume, SM-Bank 006

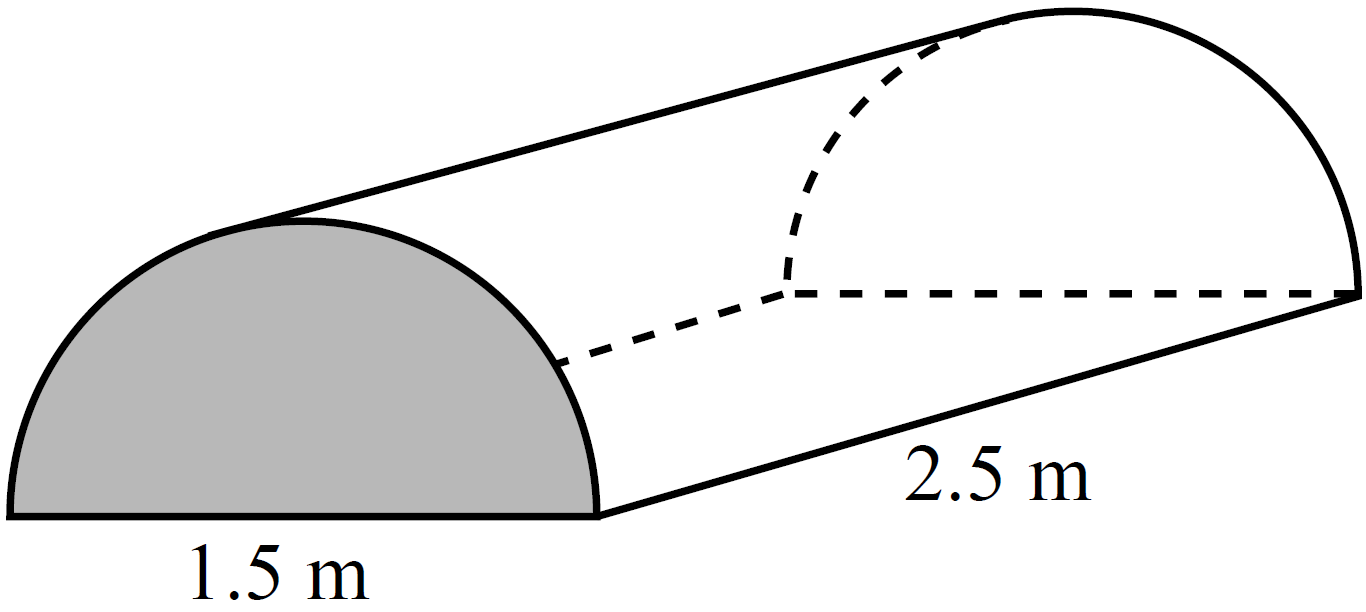

A tent with semicircular ends is in the shape of a prism. The diameter of the ends is 1.5 m. The tent is 2.5 m long.


GEOMETRY, FUR1 2008 VCAA 6 MC

Calculate the total volume of the tent in cubic metres, correct to one decimal place.  (2 marks)

Show Answers Only

\(2.2\ \text{m}^3\ \text{(1 d.p.)}\)

Show Worked Solution

\(\text{Diameter}=1.5\ \text{metres}\ \ \Rightarrow\ \ \ \text{Radius}= \dfrac{1.5}{2} = 0.75\ \text{metres}\)

\(V\) \(=\dfrac{1}{2}\times \pi r^2h\)
  \(=\dfrac{1}{2}\times \pi\times 0.75^2\times 2.5\)
  \(=2.2089\dots\)
  \(\approx 2.2\ \text{m}^3\ \text{(1 d.p.)}\)

Volume, SM-Bank 004 MC

GEOMETRY, FUR1 2008 VCAA 4 MC

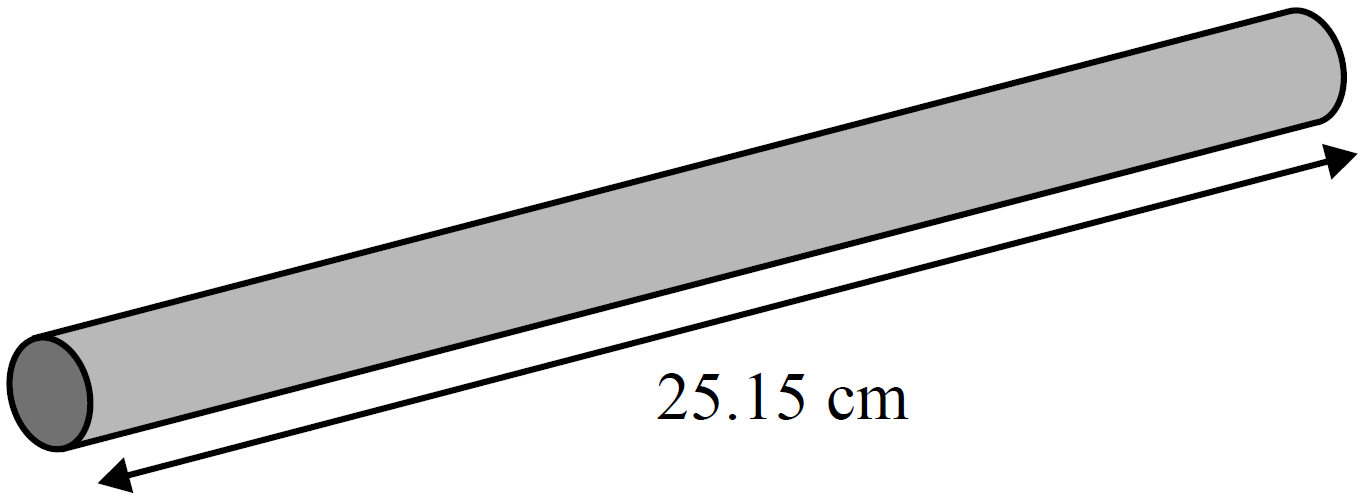

The solid cylindrical rod shown above has a volume of 490.87 cm3. The length is 25.15 cm.

The radius (in cm) of the cross-section of the rod, correct to one decimal place, is

  1. \(2.5\)
  2. \(5.0\)
  3. \(6.3\)
  4. \(19.6\)
Show Answers Only

\(A\)

Show Worked Solution

\(V=\pi r^2h\)

\(\text{Where length} =h = 25.15\ \text{cm,}\ V=490.87\ \text{cm}^3\)

\(\therefore\ 490.87\) \(=\pi\times r^2\times 25.15\)
\(r^2\) \(=\dfrac{490.87}{\pi\times 25.15}\)
  \(= 6.2126\dots\)
\(\therefore\ r\) \(= 2.492\dots\ \text{cm}\)
  \(\approx 2.5\ \text{cm (1 d.p.)}\)


\(\Rightarrow A\)
