Algebra, NAP-C4-CA32 SA

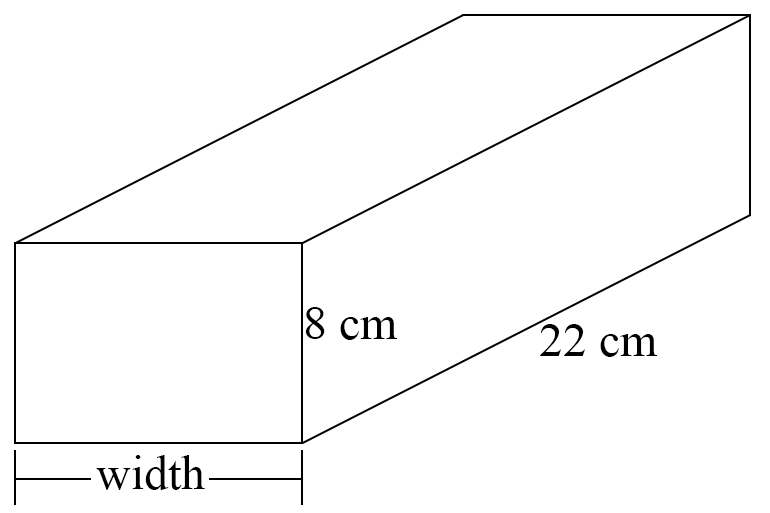

The surface area of a brick is given by the rule:

total surface area = 2 × [(width × height) + (width × length) + (height × length)]

The brick shown has a total surface area of 982 square centimetres.




What is the width of the brick?

   centimetres
Show Answers Only

`10.5\ text(cm)`

Show Worked Solution

`text(Let)\ \ w = text(width of the brick)`

`text(Surface Area)` `= 2 xx [8w + 22w + (8 xx 22)]`
`982` `= 2(30w + 176)`
  `= 60w + 352`
`60w` `= 630`
`:. w` `= 10.5\ text(cm)`

Algebra, NAP-D4-CA07

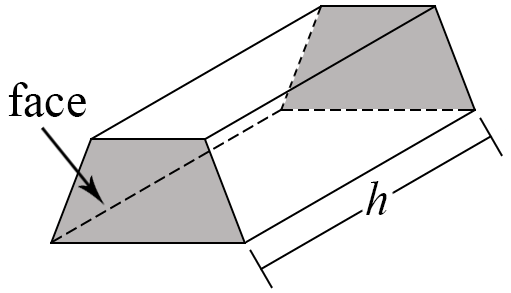

The surface area `(S)` of the prism below can be calculated by multiplying the perimeter of its face `(p)` by its height `(h)`, and adding twice the area of its face `(F)`.





Which one of these formulas could be used for this calculation?


 `S = 2 p h F`

 `S = p h + F`

 `S = p h + 2F`

 `S = 2 ph + 2F`
Show Answers Only

`S = p h + 2F`

Show Worked Solution

`S = p h + 2F`

Measurement, NAP-C4-NC32 SA

The total surface area of a cube is 150 cm².


 How long is an edge of the cube?

  cm
Show Answers Only

`text(5 cm)`

Show Worked Solution

`text(Surface area of 1 face of the cube)`

`=150/6`

`=25\ text(cm²)`



`text(Let)\ \ x=\ text(length of 1 side)`

`x^2` `=25`
`:.\ x` `=5\ text(cm)`

Measurement, NAP-F4-CA21

A cube has a side length of 6 cm.

Two smaller cubes of side length 3 cm are attached to the larger cube as shown in the diagram below.


What is the surface area of the new object?

`216\ text(cm²)` `243\ text(cm²)` `270\ text(cm²)` `288\ text(cm²)`




Show Answers Only

`270\ text(cm²)`

Show Worked Solution

`text(One strategy:)`

`text{Calculate the surface area (S.A.) of the 2 objects joined}`

`text(separately and deduct the area where they join.)`


`text{S.A. (large cube)} = 6 xx 6xx 6 = 216\ text(cm²)`

`text{S.A. (2 smaller cubes joined together)}`

`=2 xx (3 xx 3) + 4 xx (6 xx 3)`

`=90\ text(cm²)`

`text{S.A. to be deducted (where cubes are attached)}`

`= 2 xx (6 xx 3)`

`= 36\ text(cm²)`



`:.\ text{S.A. (new object)}` `= 216 + 90 – 36`
  `=270\ text(cm²)`

Measurement, NAP-G4-CA32

The rectangular prism, shown below, is cut in half to form 2 equal cubes.


What is the ratio of the surface area of the rectangular prism to one of the cubes?

`3 : 5` `5 : 3` `1 : 2` `2 : 1`




Show Answers Only

`5 : 3`

Show Worked Solution

`text(S.A. of rectangular prism)`

`= 2 xx (h xx h) + 4 xx (2h xx h)`

`= 2h^2 + 8h^2`

`= 10 h^2`



`text(S.A. of cube)`

`= 6 xx (h xx h)`

`= 6h^2`



`:.\ text(Ratio of rectangular prism to cube)`

`= 10h^2 : 6h^2`

`= 5 : 3`

Measurement, NAP-I4-CA27 SA

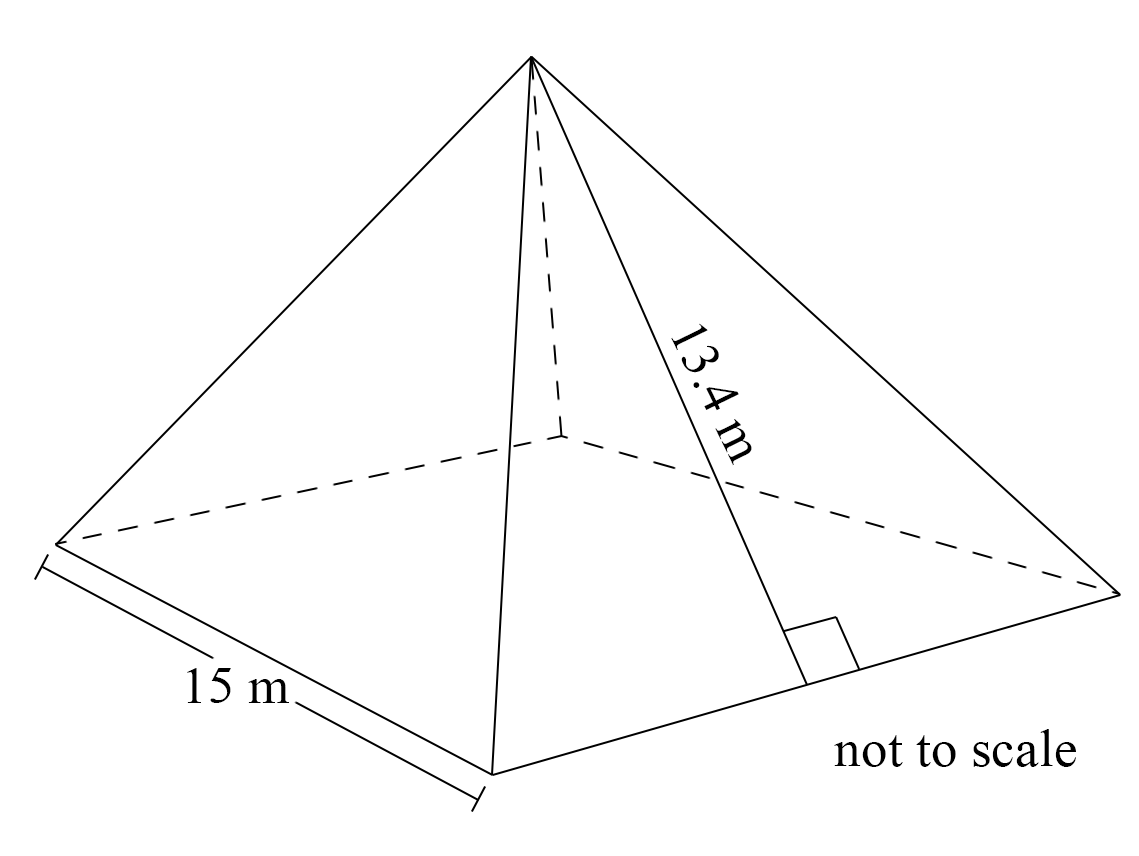

A glass aviary is made up of four triangles and a square, as shown in the diagram below.

 naplan-2016-27
Harry is hired to clean the interior sides of the aviary, not including the floor.

What is the area that Harry will need to clean?

   m²
Show Answers Only

`402\ text(m²)`

Show Worked Solution

`text(Area to clean)`

`= 4 xx 1/2 bh`

`= 4 xx 1/2 xx 15 xx 13.4`

`= 402\ text(m²)`
