smc-672-60-Number of faces/edges

Geometry, NAP-E4-NC21

A T-shaped prism is pictured below.

How many edges does the prism have?

`10`	`19`	`20`	`22`	`24`

Show Answers Only

`24`

Show Worked Solution

`text(Edges on T face) = 8`

`text(Edges connecting top and bottom) = 8`

`:.\ text(Total edges)`	`= 2 xx 8 + 8`
	`= 24`

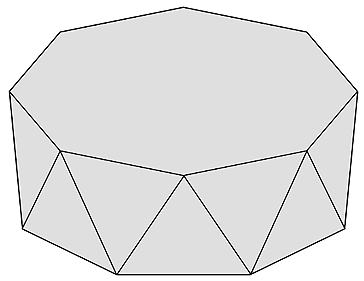

Craig has a drum which has the top and bottom in the shape of regular octagons, as shown below.

The other faces are isosceles triangles.

How many edges does Craig's drum have?

Show Answers Only

`32`

Show Worked Solution

`text(Top and bottom edges)`

`= 8 xx 2 = 16`

`text(Side edges)`

`= 8 xx 2 = 16`

`:.\ text(Total edges )`	`= 16 + 16`
	`= 32`

The edges of a 4 × 4 × 4 cube are formed using blocks as shown below:

In total, 32 blocks are used.

How many blocks would be needed to make the edges of an 8 × 8 × 8 cube in the same way?

Show Answers Only

`80`

Show Worked Solution

`text(Cubes in the top level = 28)`

`text(Cubes in the bottom level = 28)`

`text{Cubes in the vertical pillars (not including top/bottom level)}`

`=4 xx 6`

`= 24`

`:.\ text(Total blocks)`	`= 28 + 28 + 24`
	`=80`
