Circle Geometry, SMB-009

In the diagram, \(OB\) meets the chord \(AC\) such that \(AB = BC\).

The length of chord \(AC = 24\), and \(OC = 13\).

Find the length of \(OB\). (3 marks)

--- 6 WORK AREA LINES (style=lined) ---

Show Answers Only

\(OB=5\)

Show Worked Solution

\(OB \perp AC\ \ \text{(line through centre that bisects chord)}\)

\(BC= \dfrac{1}{2} \times 24 = 12 \)

\(\text{Using Pythagoras in}\ \Delta OBC :\)

\(OB^2\)	\(= 13^2-12^2 \)
	\(= 25\)
\(\therefore OB\)	\(=5\)

Cicle Geometry, SMB-007

In the diagram, a line from the centre of the circle meets a chord at its midpoint.

Find the value of \(\theta\). (2 marks)

Show Answers Only

\(\theta = 47^{\circ}\)

Show Worked Solution

\(\text{Line from centre bisects chord}\ \ \Rightarrow\ \ \text{Line is ⊥ to chord}\)

\(\theta\)	\(= 180-(90+43)\ \ (180^{\circ}\ \text{in}\ \Delta) \)
	\(= 47^{\circ} \)

Circle Geometry, SMB-006

In the circle centred at \(O\), the chord \(AC\) has length 15 and \(OB\) meets the chord \(AC\) at right angles.

Find the length of \(BC\). (1 mark)

Show Answers Only

\(BC = 7.5\)

Show Worked Solution

\(BC\)	\(= \dfrac{1}{2} \times 15\ \ \text{(perpendicular from centre to chord bisects chord)}\)
	\(= 7.5 \)

Circle Geometry, SMB-005

In the diagram, two chords of a circle intersect.

Find \(x\). (2 marks)

Show Answers Only

\(x=8\)

Show Worked Solution

\(3 \times x\)	\(=6 \times 4\ \ \text{(intercepts of intersecting chords)}\)
\(x\)	\(= \dfrac{24}{3} \)
	\(=8\)

Circle Geometry, SMB-004

In the diagram, two chords of a circle intersect.

Find \(x\). (2 marks)

Show Answers Only

\(x=6\)

Show Worked Solution

\(7 \times x\)	\(=3 \times 14\ \ \text{(intercepts of intersecting chords)}\)
\(x\)	\(= \dfrac{42}{7} \)
	\(=6\)

Circle Geometry, SMB-001

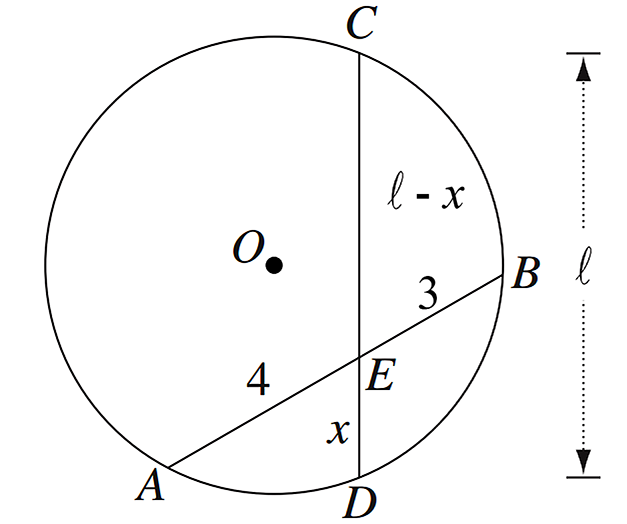

In the circle centred at \(O\) the chord \(AB\) has length 7. The point \(E\) lies on \(AB\) and \(AE\) has length 4. The chord \(CD\) passes through \(E\).

Let the length of \(CD\) be \(\ell\) and the length of \(DE\) be \(x\).

Show that \(x^2-\ell x + 12 = 0\). (2 marks)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(\text{See Worked Solutions}\)

Show Worked Solution

\(\text{Show}\ \ x^2-\ell x + 12 = 0\)

\(AB = 7 \ \ \Rightarrow \ EB=7-4=3\)

\(AE \times EB = ED \times CE\ \ \text{(intercepts of intersecting chords)}\)

\(4 \times 3\)	\(= x(\ell-x)\)
\(12\)	\(= x\ell-x^2\)
\(\therefore x^2-\ell x+12\)	\(=0\)

Plane Geometry, EXT1 2016 HSC 4 MC

In the diagram, `O` is the centre of the circle `ABC`, `D` is the midpoint of `BC`, `AT` is the tangent at `A` and `∠ATB = 40^@`.

What is the size of the reflex angle `DOA`?

`80^@`
`140^@`
`220^@`
`280^@`

Show Answers Only

`C`

Show Worked Solution

`/_ ODT`	`=90^@\ \ text{(line through centre bisecting chord)}`
`/_OAT`	`= 90^@\ \ text{(tangent ⊥ to radius at point of contact)}`
`/_ DOA`	`= 360-(90 + 90 + 40)`
	`= 140^@`

`:. DOA\ \ text{(reflex)}`	`= 360-140`
	`= 220^@`

`=> C`
