smc-4944-30-Sectors

v1 Measurement, STD2 M1 2009 HSC 11 MC

What is the area of the shaded part of this quadrant, to the nearest square centimetre?

68 m²
73 m²
95 m²
193 m²

Show Answers Only

`C`

Show Worked Solution

`text(Area)`	`=\ text(Area of Sector – Area of triangle)`
	`= (theta/360 xx pi r^2)-(1/2 xx bh)`
	`= (90/360 xx pi xx 12^2)-(1/2 xx 6 xx 6)`
	`= 113.097…-18`
	`= 95.097…\ text(m²)`

`=> C`

Area, SM-Bank 139

The diagram shows a sector with an angle of 120° cut from a circle with radius 10 m.

What is the area of the sector? Write your answer correct to 1 decimal place. (2 marks)

NOTE: \(\text{Sector area}=\dfrac{\theta}{360}\times \pi r^2\)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(104.7\ \text{m}^2\ (1\text{ d.p.})\)

Show Worked Solution

\(\text{Sector area}\)	\(=\dfrac{\theta}{360}\times \pi r^2\)
	\(=\dfrac{120}{360}\times \pi\times 10^2\)
	\(=104.719\dots\)
	\(\approx 104.7\ \text{m}^2\ (1\text{ d.p.})\)

Area, SM-Bank 137

The sector shown has a radius of 13 cm and an angle of 230°.

What is the area of the sector to the nearest square centimetre? (2 marks)

NOTE: \(\text{Sector area}=\dfrac{\theta}{360}\times \pi r^2\)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(339\ \text{cm}^2\ (\text{nearest cm}^2)\)

Show Worked Solution

\(\text{Sector area}\)	\(=\dfrac{\theta}{360}\times \pi r^2\)
	\(=\dfrac{230}{360}\times \pi\times 13^2\)
	\(=339.204\dots\)
	\(\approx 339\ \text{cm}^2\ (\text{nearest cm}^2)\)

Area, SM-Bank 128

Calculate the area of the following sector, giving your answer as an exact value in terms of \(\pi\). (2 marks)

NOTE: \(\text{Sector area}=\dfrac{\theta}{360}\times \pi r^2\)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(27\pi\ \text{mm}^2\)

Show Worked Solution

\(\theta=30^{\circ} \ \ r=18\ \text{mm}\)

\(A\)	\(=\dfrac{\theta}{360}\times \pi r^2\)
	\(=\dfrac{30}{360}\times \pi \times 18^2\)
	\(=\dfrac{1}{12}\times 324\pi\)
	\(=27\pi\ \text{mm}^2\)

Area, SM-Bank 127

Calculate the area of the following sector, giving your answer as an exact value in terms of \(\pi\). (2 marks)

NOTE: \(\text{Sector area}=\dfrac{\theta}{360}\times \pi r^2\)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(\dfrac{100\pi}{3}\ \text{m}^2\)

Show Worked Solution

\(\theta=120^{\circ} \ \ r=10\ \text{m}\)

\(A\)	\(=\dfrac{\theta}{360}\times \pi r^2\)
	\(=\dfrac{120}{360}\times \pi\times 10^2\)
	\(=\dfrac{1}{3}\times 100\pi\)
	\(=\dfrac{100\pi}{3}\ \text{m}^2\)

Area, SM-Bank 121

Milan cuts a sector from a circle so that \(\dfrac{3}{8}\) of the area of the circle remains.

If the circle's radius is 4 cm, what is the area of the shape, to the nearest square centimetre? (2 marks)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(19\ \text{cm}^2\ (\text{nearest cm}^2)\)

Show Worked Solution

\(\text{Area}\)	\(=\dfrac{3}{8}\times \pi r^2\)
	\(=\dfrac{3}{8}\times \pi\times 4^2\)
	\(=18.849\dots\)
	\(=19\ \text{cm}^2\ (\text{nearest cm}^2)\)

Area, SM-Bank 115

Calculate the area of the following shape, giving your answer correct to 1 decimal place. (2 marks)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(855.3\ \text{m}^2\ (1\ \text{d.p.})\)

Show Worked Solution

\(\text{Area quadrant}\)	\(=\dfrac{1}{4}\times\pi r^2\)
	\(=\dfrac{1}{4}\times\pi\times 33^2\)
	\(=855.2985\dots\)
	\(\approx 855.3\ \text{m}^2\ (1\ \text{d.p.})\)

Area, SM-Bank 114

Calculate the area of the following shape, giving your answer correct to 1 decimal place. (2 marks)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(84.8\ \text{m}^2\ (1\ \text{d.p.})\)

Show Worked Solution

\(\text{Diameter}=12\ \text{m}\)

\(\therefore\ \text{Radius}=6\ \text{m}\)

\(\text{Area}\)	\(=\dfrac{3}{4}\times\pi r^2\)
	\(=\dfrac{3}{4}\times\pi\times 6^2\)
	\(=84.8230\dots\)
	\(\approx 84.8\ \text{m}^2\ (1\ \text{d.p.})\)

Area, SM-Bank 113

Calculate the area of the following shape, giving your answer as an exact value in terms of \(\pi\). (2 marks)

--- 5 WORK AREA LINES (style=lined) ---

Show Answers Only

\(12\pi \ \text{m}^2\)

Show Worked Solution

\(\text{Area}\)	\(=\dfrac{3}{4}\times\pi r^2\)
	\(=\dfrac{3}{4}\times\pi\times 4^2\)
	\(=12\pi \ \text{m}^2\)

Area, SM-Bank 112

Calculate the area of the following quadrant, giving your answer as an exact value in terms of \(\pi\). (2 marks)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(\dfrac{225\pi}{4}\ \text{cm}^2\)

Show Worked Solution

\(\text{Area quadrant}\)	\(=\dfrac{1}{4}\times\pi r^2\)
	\(=\dfrac{1}{4}\times\pi\times 15^2\)
	\(=\dfrac{225}{4}\pi\)
	\(=\dfrac{225\pi}{4}\ \text{cm}^2\)

Area, SM-Bank 041

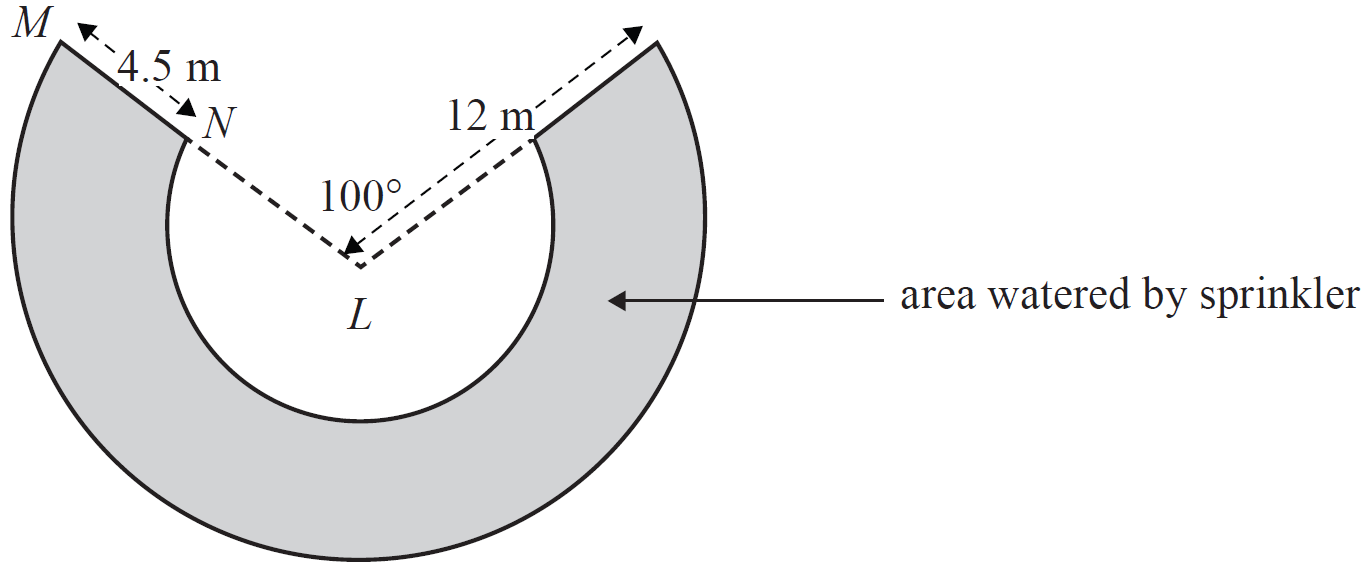

A golf course has a sprinkler system that waters the grass in the shape of a sector, as shown in the diagram below.

A sprinkler is positioned at point \(L\) and can turn through an angle of 100°.

The section of grass that is watered is 4.5 m wide at all points.

Water can reach a maximum of 12 m from the sprinkler at \(L\).

What is the area of grass that this sprinkler will water?

Round your answer to the nearest square metre. (2 marks)

NOTE: \(\text{Sector Area}=\dfrac{\theta}{360}\times \pi r^2\)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

`199\ text{m² (nearest m²)}`

Show Worked Solution

\(\text{Area}\)	\(=\dfrac{360-\theta}{360}\times \pi\times R^2-\dfrac{360-\theta}{360}\times \pi\times r^2\)
	\(=\dfrac{260}{360}\times \pi\times 12^2-\dfrac{260}{360}\times \pi\times 7.5^2\)
	\(= 199.09\dots\)
	\(= 199\ \text{m² (nearest m}^2)\)

Area, SM-Bank 037

The pie chart below displays the results of a survey.

Eighty per cent of the people surveyed selected ‘agree’.

Twenty per cent of the people surveyed selected ‘disagree’.

The radius of the pie chart is 16 mm.

Calculate the area of the "agree" sector, correct to the nearest square millimetre. (2 marks)

--- 4 WORK AREA LINES (style=lined) ---

Show Answers Only

\(643\ \text{mm}^2\)

Show Worked Solution

\(\text{Agree represents }80\text{% of the circle}\)

\(\text{Area}\)	\(=80\text{%}\times \pi r^2\)
	\(=0.8\times \pi\times 16^2\)
	\(=643.39\dots\)
	\(\approx 643\ \text{mm}^2\)

Area, SM-Bank 036

A windscreen wiper blade can clean a large area of windscreen glass, as shown by the shaded area in the diagram below.

The windscreen wiper blade is \(30\) cm long and it is attached to a \(9\) cm long arm.

The arm and blade move back and forth in a circular arc with an angle of \(110^\circ\) at the centre.

Calculate the area cleaned by this blade, in square centimetres, correct to one decimal place. (2 marks)

NOTE: \(\text{Sector area}=\dfrac{\theta}{360}\times \pi r^2\)

--- 5 WORK AREA LINES (style=lined) ---

Show Answers Only

\(1382.3\ \text{cm}^2\)

Show Worked Solution

\(\theta=110^\circ,\ \text{Radius large sector}=39,\ \text{Radius small sector}=9\)

\(\text{Area cleaned}\)	\(\ =\ \text{large sector − small sector}\)
	\(=\dfrac{110}{360}\times \pi\times 39^2-\dfrac{110}{360}\times \pi\times 9^2\)
	\(=1382.300\dots\)
	\(\approx 1382.3\ \text{cm}^2\)

Measurement, STD2 M1 2009 HSC 11 MC

What is the area of the shaded part of this quadrant, to the nearest square centimetre?

34 cm²
42 cm²
50 cm²
193 cm²

Show Answers Only

`B`

Show Worked Solution

`text(Area)`	`=\ text(Area of Sector – Area of triangle)`
	`= (theta/360 xx pi r^2)-(1/2 xx bh)`
	`= (90/360 xx pi xx 8^2)-(1/2 xx 4 xx 4)`
	`= 50.2654…-8`
	`= 42.265…\ text(cm²)`

`=> B`

Measurement, STD2 M1 2013 HSC 16 MC

The shaded region shows a quadrant with a rectangle removed.

What is the area of the shaded region, to the nearest cm²?

38 cm²
52 cm²
61 cm²
70 cm²

Show Answers Only

`B`

Show Worked Solution

`text(Shaded area)`	`=\ text(Area of segment – Area of rectangle)`
	`=1/4 pi r^2-(6xx2)`
	`=1/4 pi xx9^2-12`
	`=51.617…\ text(cm²)`

`=>\ B`
