smc-2830-10-Find f(x) given f'(x)

Calculus, MET2 2020 VCAA 6 MC

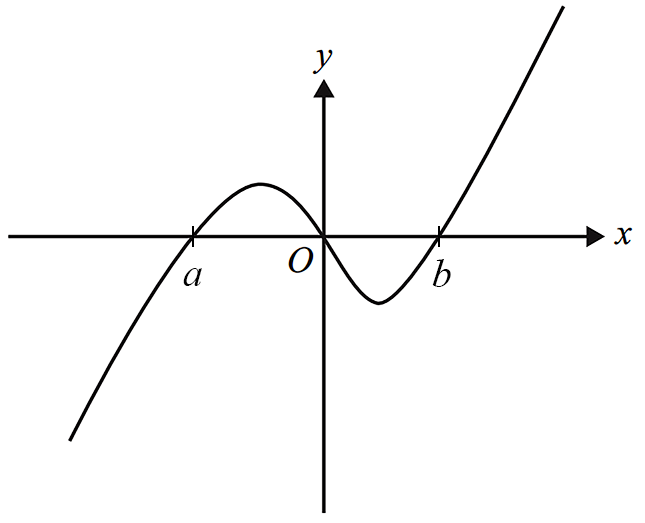

Part of the graph of `y=f^(')(x)` is shown below.

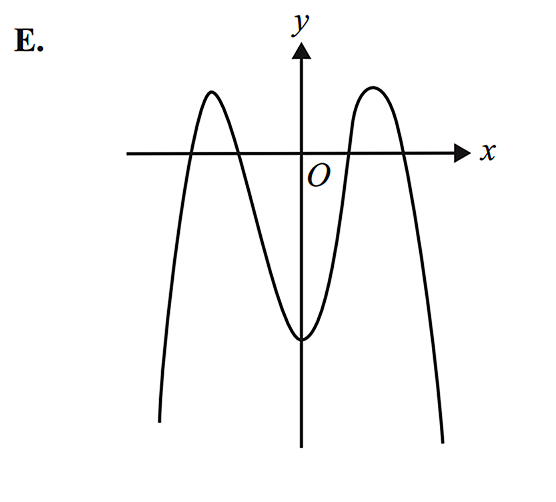

The corresponding part of the graph of `y=f(x)` is best represented by

Show Answers Only

`B`

Show Worked Solution

`text(By elimination:)`

`text(Two stationary points exist where)\ \ f^{‘}(x) =0\ \ text(and)\ \ x<0.`

`=>\ text(Eliminate)\ \ E, C, D`

`text{No other stationary points exist}\ →\ f^{‘}(x) !=0\ \ text(for)\ \ x>0.`

`=>\ text(Eliminate)\ \ E`

`=> B`

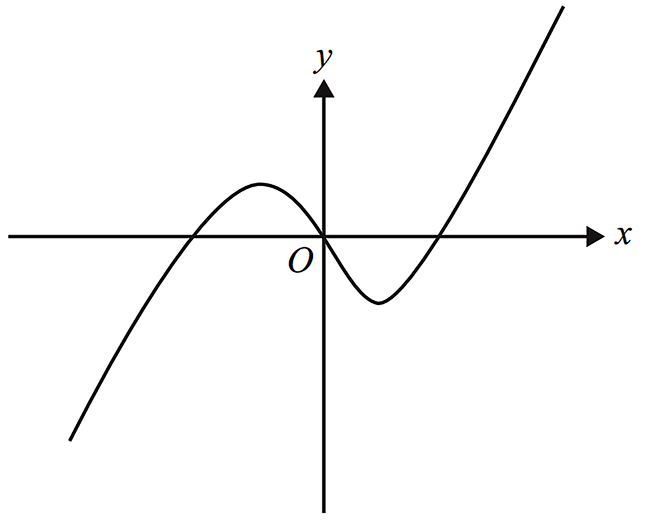

The graph of the gradient function `y = f prime (x)` is shown below.

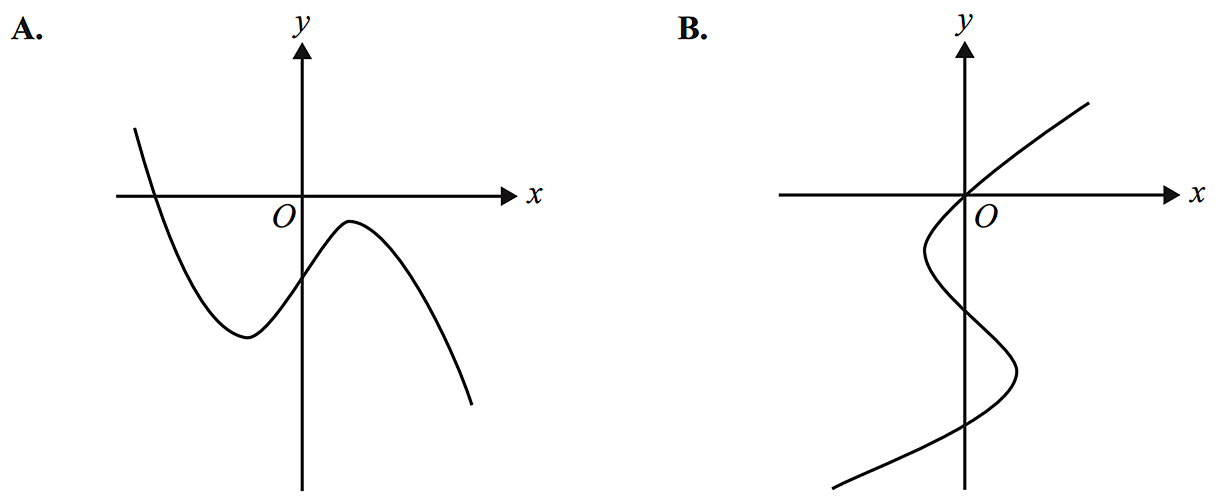

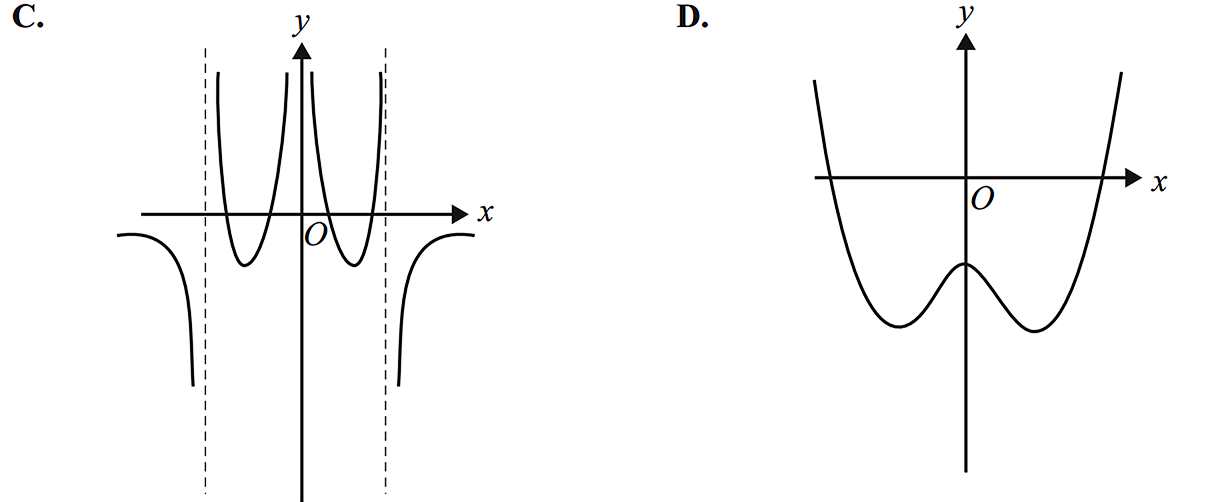

Which of the following could represent the graph of the function `f (x)?`

Show Answers Only

`D`

Show Worked Solution

`text(A gradient table of the graph:)`

`=> D`

If `f prime (x) = 3x^2 - 4`, which one of the following graphs could represent the graph of `y = f (x)`?

Show Answers Only

`B`

Show Worked Solution

`f prime (x) = 3x^2 – 4`

`:. f(x)\ text(is a cubic with two stationary points.)`

`=> B`
