ENGINEERING, PPT 2023 HSC 27b

A portion of a roller coaster wheel sub-assembly is shown.


An exploded pictorial of the wheel sub-assembly is shown.





Complete an assembled sectioned front view of the wheel sub-assembly at scale 1: 2. Apply AS 1100 drawing standards. Do NOT add dimensions.  (6 marks)



Show Answers Only

Show Worked Solution


♦ Mean mark 49%.

ENGINEERING, PPT 2016 HSC 22c

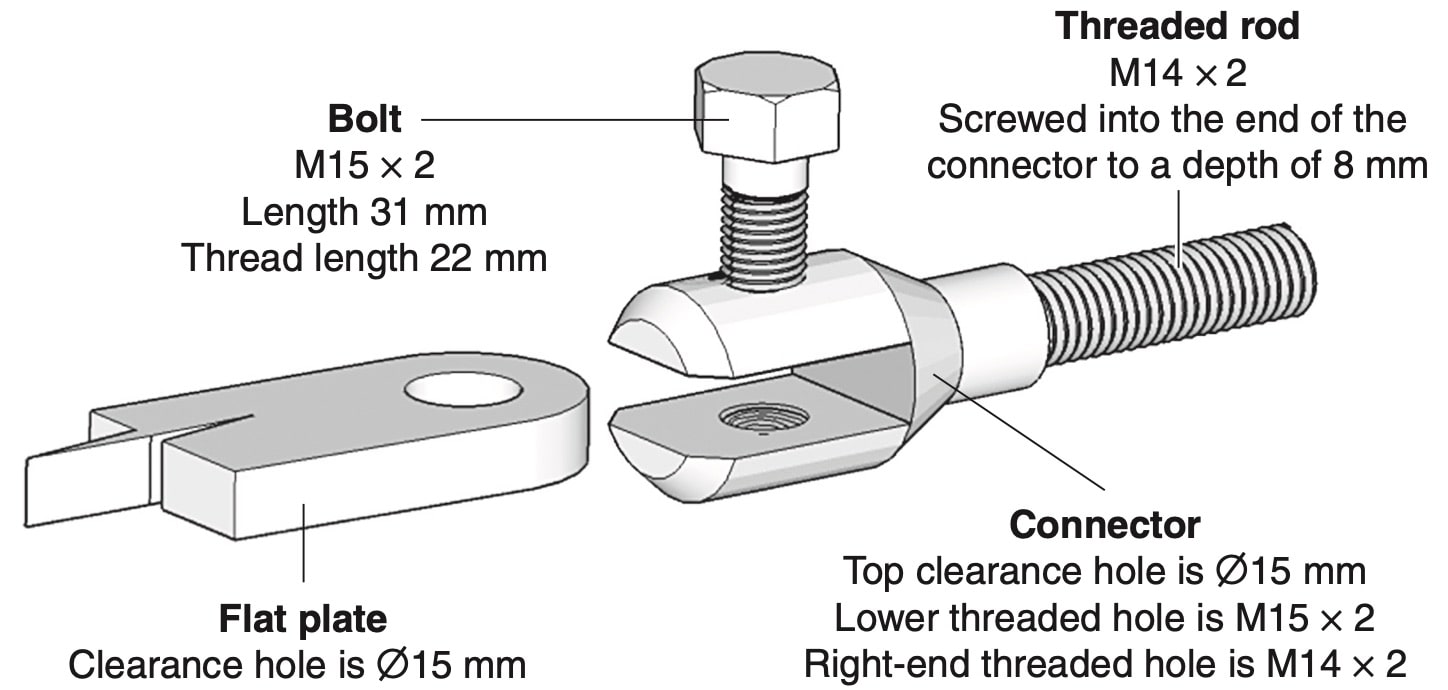

An electrical connector is screwed onto a threaded rod. A flat plate is then secured to the connector by a bolt screwed into a threaded hole.


Complete the scaled sectioned front view with the parts assembled.   (6 marks)


Show Answers Only

The image below should be adjusted to the appropriate scale.

Show Worked Solution

The image below should be adjusted to the appropriate scale.

Key points for this drawing:

  • Do not dimension unless asked
  • Section lines should be at 45 degrees and 3 mm apart
  • No not section threads/bolts
  • Ensure correct bolts dimensions used for the bolt

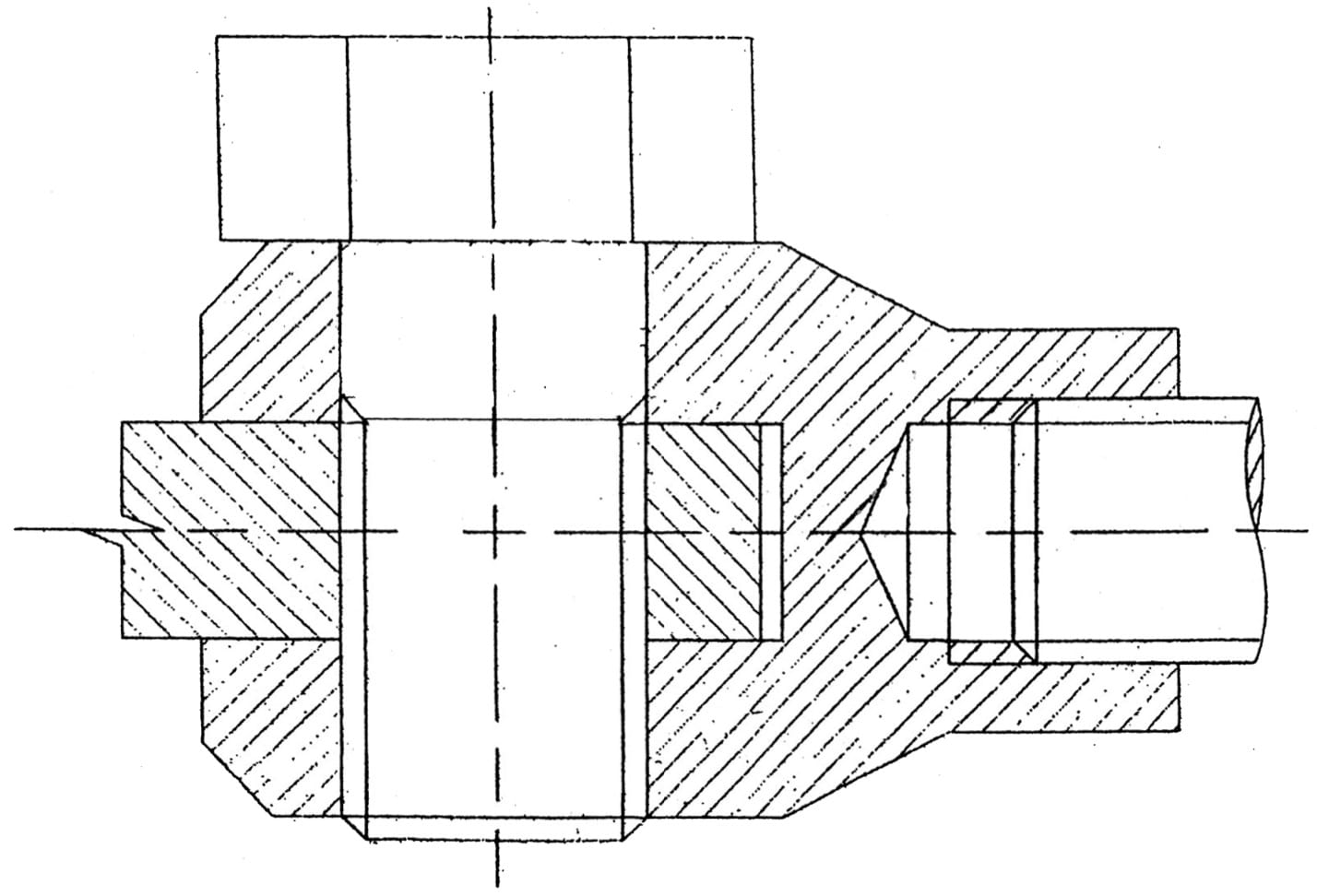

  • The gap in the middle shows that the pieces DO NOT sit flush
  • Swap direction of section lines for adjoining areas

♦♦ Mean mark 43%.

ENGINEERING, PPT 2018 HSC 24c

An exploded view of an adjustable scaffold foot is shown.




On the next page, complete a half-sectioned front view of the scaffold foot with the jack nut arm. The arrow indicates the direction of viewing.   (6 marks)


Show Answers Only

Show Worked Solution

ENGINEERING, PPT 2017 HSC 23c

The U-bolt clamp shown is used to hold a Ø42 digital TV aerial pipe in place.

Draw an assembled half-sectional front view of this U-bolt clamp to AS 1100 standards. The front is indicated by the direction of the arrow.

Use a scale of 2 : 1 and place the half section on the right-hand side.   (6 marks)






Show Answers Only

Show Worked Solution

The AS 1100 drawing reflects the correct scale, but we note exact measurements are required for the exam diagram.

Key Points for this Drawing:

  • There is very little actual sectioning in this drawing as it is being used to test if students know what to section. DO NOT section nuts, bolts or threads.
  • The small rectangle is the only part sectioned as it the only part cut that is not a nut, bolt or thread.
  • Although only 1 nut is shown the instructions say to draw both.
  • Use correct bolt dimensions for nut size.
  • Do not dimension unless asked.
  • Do not show hidden detail on sectioned side.
  • Sectioning lines should be on a 45 degree angle and 3 mm apart.
Mean mark 59%.

ENGINEERING, PPT 2019 HSC 27bii

An assembly drawing of a bracket and lock pin with the flange removed is shown.


Using the starting lines and centre mark provided, draw a fully sectioned top view, to AS 1100 drawing standards. The section plane passes through the centre of the mounting holes. Use the dimensions on the drawing and the lock pin diameter determined in part (b)(i). Use a scale of 1:2.   (3 marks)


Show Answers Only

Show Worked Solution

ENGINEERING, PPT 2019 HSC 19 MC

A webbed flange is shown.

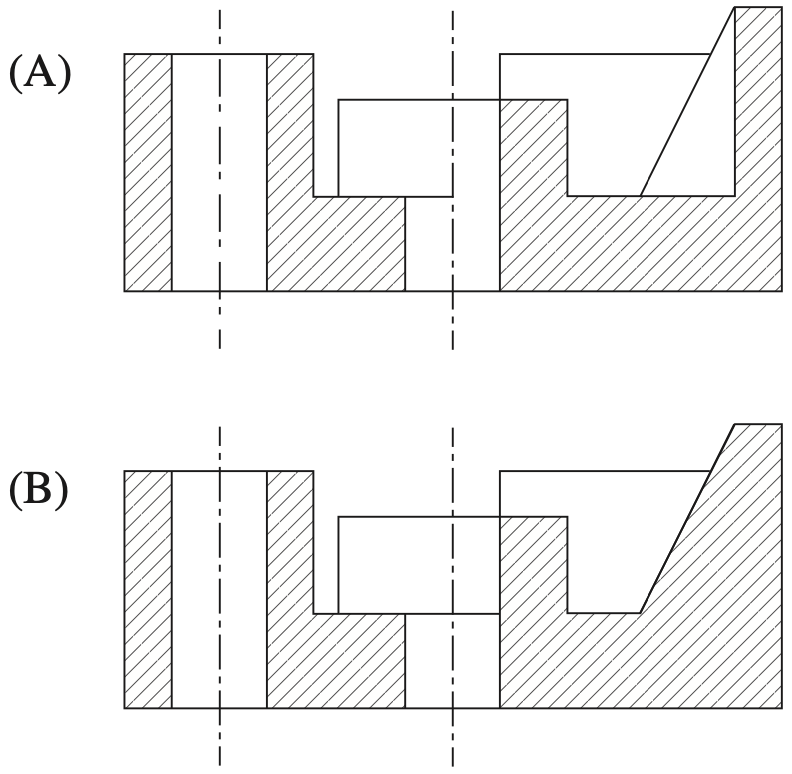

Which image correctly represents section A–A?


Show Answers Only

`C`

Show Worked Solution

By Elimination:

→ Webs do not get sectioned (eliminate `B` and `D`)

→ The upright cylinder itself must be sectioned (eliminate `A`)

`=>C`


♦♦♦ Mean mark 26%.

ENGINEERING, PPT 2022 HSC 25b

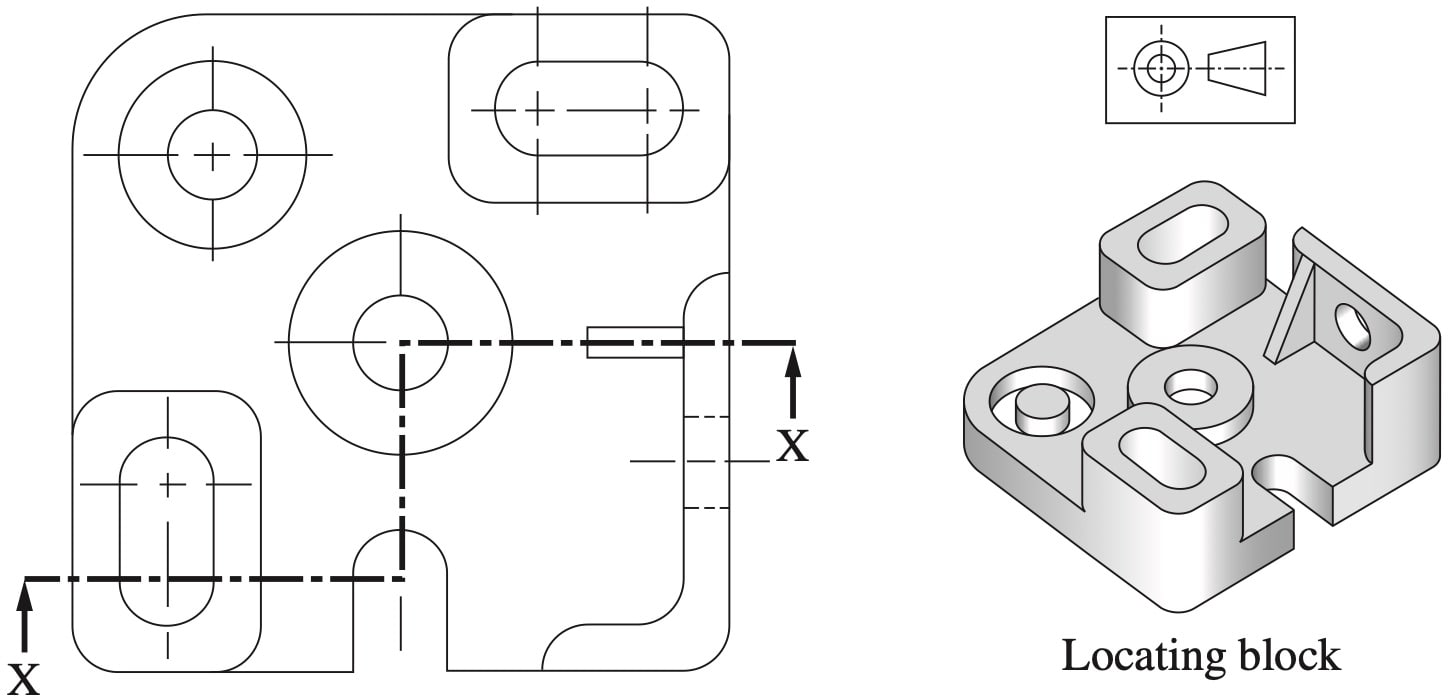

A pictorial view of a machine part is shown.


Use the front view and side view provided to complete a sketch of an offset section of the part in the top view.   (3 marks)



Show Answers Only

Notes on this drawing:

→ Do not dimension if not asked

→ Ensure section is offset, both larger holes and the smaller hole should be visible as the section is not one line, it cuts through all of them.

→ No hidden detail

→ Section lines correct width apart and angle (approx. 3mm and 45°)

Show Worked Solution

Notes on this drawing:

→ Do not dimension if not asked

→ Ensure section is offset, both larger holes and the smaller hole should be visible as the section is not one line, it cuts through all of them.

→ No hidden detail

→ Section lines correct width apart and angle (approx. 3mm and 45°)


♦ Mean mark 44%.

ENGINEERING, PPT 2022 HSC 18 MC

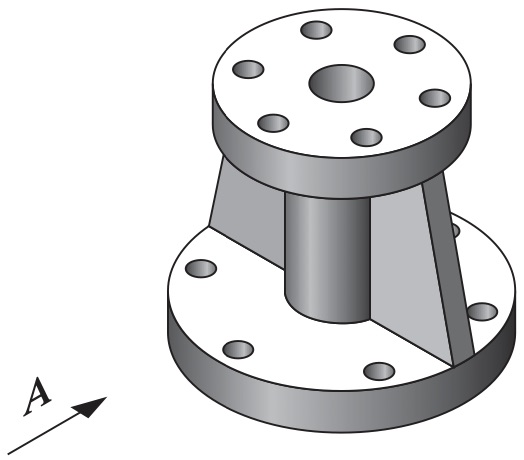

A pictorial view of a machine component is shown.

When viewed from the direction of arrow A, which drawing correctly shows the half-sectional view?


Show Answers Only

`D`

Show Worked Solution

By Elimination:

→ `A`and `B` are full sectional views of the actual body of the component.

→ Do not section webs in sectional drawings (eliminate `C`)

`=>D`


♦ Mean mark 48%.

ENGINEERING, PPT 2021 HSC 24d

A drive mechanism used to control the satellite dish of a mobile TV transmission van is shown.

Key dimensions of components are given.





The dimensions of each of the five holes in the gear are  \( \phi 10 \vee \phi 16 \times 90°\) on one side.

A partially sectioned drawing of the gear and shaft is provided below.

Complete the sectioned assembly of this drive mechanism to AS 1100 from the direction indicated by the arrow. Include break lines where appropriate.   (6 marks)


Show Answers Only

Show Worked Solution

Critical aspects of this drawing:

→ Do not section wedges

→ Do not section counterbores or holes

→ Break line must be included

→ Section lines of adjacent areas should go in different directions

→ Section lines should be at 45° and 3mm apart

→ Answer may be drawn half sectioned as it is symmetrical


♦♦ Mean mark 41%.
