smc-792-30-Patterns

Algebra, STD2 A2 SM-Bank 20

Peter uses matchsticks to make a pattern of shapes, as shown in the table below.

How many sticks (`S`) will be needed to make Shape Number (`N`) 13? (2 marks)

--- 5 WORK AREA LINES (style=lined) ---

Show Answers Only

`66`

Show Worked Solution

`text(Shape 1:)\ \ S=5 xx 1 +1 =6`

`text(Shape 2:)\ \ S=5 xx 2 +1 =11`

`vdots`

`text(Shape)\ N:\ \ S=5N +1 `

`:.\ text(Sticks required when)\ \ N=13`

`=13 xx 5 +1`

`=66`

Algebra, STD2 A2 2017 HSC 20 MC

A pentagon is created using matches.

By adding more matches, a row of two pentagons is formed.

Continuing to add matches, a row of three pentagons can be formed.

Continuing this pattern, what is the maximum number of complete pentagons that can be formed if 100 matches in total are available?

A. `25`

B. `24`

C. `21`

D. `20`

Show Answers Only

`=>\ text(B)`

Show Worked Solution

`text(1 pentagon: 5 matches)`

`text(2 pentagons: 5 + 4 = 9)`

`text(3 pentagons: 5 + 4 × 2 = 13)`

`vdots`

`n\ text(pentagons:)\ 5 + 4(n – 1)`

`5 + 4(n – 1)`	`= 100`
`4n – 4`	`= 95`
`4n`	`= 99`
`n`	`= 24.75`

`:.\ text(Complete pentagons possible = 24)`

`=>\ text(B)`

Algebra, STD2 A2 2007 HSC 18 MC

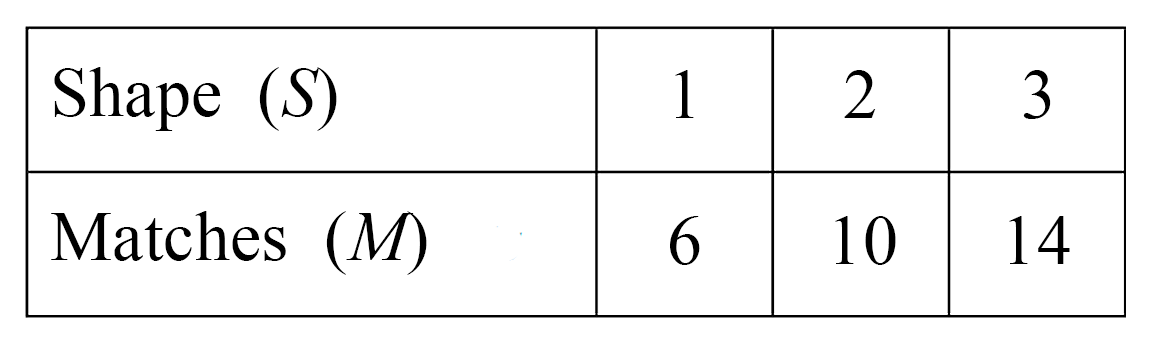

Chris started to make this pattern of shapes using matchsticks.

If the pattern of shapes is continued, which shape would use exactly 486 matchsticks?

Shape 96
Shape 97
Shape 121
Shape 122

Show Answers Only

`C`

Show Worked Solution

`text(Equation rule:)`

`M = 4S + 2`

`text(Find)\ \ x\ \ text(when)\ \ M = 486:`

`486`	`= 4S+2`
`4S`	`= 484`
`S`	`=121`

`:.\ text(The 121st shape uses 486 matchsticks.)`

`=> C`

Algebra, STD2 A2 2011 HSC 23b

Sticks were used to create the following pattern.

The number of sticks used is recorded in the table.

\begin{array} {|l|c|}
\hline
\rule{0pt}{2.5ex} \text{Shape $(S)$} \rule[-1ex]{0pt}{0pt} & \;\;\; 1 \;\;\; & \;\;\; 2 \;\;\; & \;\;\; 3 \;\;\; \\
\hline
\rule{0pt}{2.5ex} \text{Number of sticks $(N)$}\; \rule[-1ex]{0pt}{0pt} & \;\;\; 5 \;\;\; & \;\;\; 8 \;\;\; & \;\;\; 11 \;\;\; \\
\hline
\end{array}

Draw Shape 4 of this pattern. (1 mark)

--- 4 WORK AREA LINES (style=lined) ---
How many sticks would be required for Shape 100? (1 mark)

--- 3 WORK AREA LINES (style=lined) ---
Is it possible to create a shape in this pattern using exactly 543 sticks?

Show suitable calculations to support your answer. (2 marks)

--- 5 WORK AREA LINES (style=lined) ---

Show Answers Only

`text(See Worked Solutions.)`
`302`
`text(No)`

Show Worked Solution

i. `text(Shape 4 is shown below:)`

ii. `text(S)text(ince)\ \ N=2+3S`

♦ Mean mark 48%.
MARKER’S COMMENT: Students should attempt to find a “rule” in such questions, and use this formula to solve the question, as per the Worked Solution.

`text(If)\ \ S`	`=100`,
`N`	`=2+(3xx100)`
	`=302`

iii.	`543`	`=2+3S`
	`3S`	`=541`
	`S`	`=180 1/3`

`text(S)text(ince S is not a whole number, 543 sticks)`

`text(will not create a figure.)`

Algebra, STD2 A2 2012 HSC 8 MC

Dots were used to create a pattern. The first three shapes in the pattern are shown.

The number of dots used in each shape is recorded in the table.

\begin{array} {|l|c|}
\hline
\rule{0pt}{2.5ex} \text{Shape $(S)$} \rule[-1ex]{0pt}{0pt} &\;\;\; 1 \;\;\; & \;\; \;2 \;\;\; & \;\;\; 3 \;\;\; \\
\hline
\rule{0pt}{2.5ex} \text{Number of dots $(N)$} \rule[-1ex]{0pt}{0pt} &\;\;\; 6 \;\;\; & \;\; \;8 \;\;\; & \;\; \;10\; \;\; \\
\hline
\end{array}

How many dots would be required for Shape 156?

`316`
`520`
`624`
`936`

Show Answers Only

`A`

Show Worked Solution

`text(Linear relationship where)`

`N=4+(2 xx S)`

`text(When)\ \ S = 156`

`N`	`= 4 + (2 xx 156)`
	`=316`

`=> A`
