Functions, 2ADV F2 EQ-Bank 2

A graph of the hyperbola  \(y=\dfrac{1}{x+p}+q\)  is shown, where \(p\) and \(q\) are constants.


Find the values of \(p\) and \(q\) and hence the graphs \(x\)-axis intercept.   (2 marks)

Show Answers Only

\(\text {Vertical asymptote at } \ x=-1 \ \ \Rightarrow p=1\)

\(\text {Horizontal asymptote at } \ y=\dfrac{3}{2} \ \  \Rightarrow q=\dfrac{3}{2}\)

\(y=\dfrac{1}{x+1}+\dfrac{3}{2}\)


\(x\text{-intercept when} \ \ y=0:\)

  \(\dfrac{1}{x+1}+\dfrac{3}{2}\)  \(=0\)
  \(\dfrac{1}{x+1}\)  \(=-\dfrac{3}{2}\)
  \(3 x+3\)  \(=-2\)
  \(3x\)  \(=-5\)
  \(x\)  \(=-\dfrac{5}{3}\)

Show Worked Solution

\(\text {Vertical asymptote at } \ x=-1 \ \ \Rightarrow p=1\)

\(\text {Horizontal asymptote at } \ y=\dfrac{3}{2} \ \  \Rightarrow q=\dfrac{3}{2}\)

\(y=\dfrac{1}{x+1}+\dfrac{3}{2}\)


\(x\text{-intercept when} \ \ y=0:\)

  \(\dfrac{1}{x+1}+\dfrac{3}{2}\)  \(=0\)
  \(\dfrac{1}{x+1}\)  \(=-\dfrac{3}{2}\)
  \(3 x+3\)  \(=-2\)
  \(3x\)  \(=-5\)
  \(x\)  \(=-\dfrac{5}{3}\)

Functions, 2ADV F2 2022 SPEC2 3 MC

The graph of  `y=\frac{x^2+2x+c}{x^2-4}`, where `c \in R`, will always have

  1. two vertical asymptotes and one horizontal asymptote.
  2. a vertical asymptote with equation `x=-2` and one horizontal asymptote with equation `y=1`.
  3. one horizontal asymptote with equation `y=1` and only one vertical asymptote with equation `x=2`.
  4. a horizontal asymptote with equation `y=1` and at least one vertical asymptote.
Show Answers Only

`D`

Show Worked Solution

`y=\frac{x^2+2x+c}{x^2-4}\ \ =>\ \ y=\frac{x^2+2x+c}{(x-2)(x+2)}`

`text{Vertical asymptotes:}\ x=2, \ x=-2`

`->\ text{However, if}\ c=0,\ \text{only 1 vertical asymptote at}\ \ x=2.`

`text{Horizontal asymptote:}\ y=1`

`=>D`


♦♦ Mean mark 38%.
41% of students chose `A` and did not consider when `c = 0`

Functions, 2ADV F2 2023 MET1 3

  1. Sketch the graph of  \(f(x)=2-\dfrac{3}{x-1}\) on the axes below, labelling all asymptotes with their equation and axial intercepts with their coordinates.   (3 marks)



  2. Find the values of \(x\) for which \(f(x)\leq1\).   (1 mark)
Show Answers Only

a.

b.    \(1<x\leq4\ \ \ \text{or}\ \ \big(1,4\big]\)

Show Worked Solution

a.    \(\text{Vertical asymptote when}\ \ x=1\)

\(y\text{-int:}\ y=2-(-3)\ \ \Rightarrow\ \ y=5\)

\(x\text{-int:}\ 2-\dfrac{3}{x-1}=0\ \ \Rightarrow\ \ x=\dfrac{5}{2} \)

\(\text{As}\ \ x \rightarrow \infty, \ \ y \rightarrow 2^{-}; \ \ x \rightarrow -\infty, \ \ y \rightarrow 2^{+} \)

b.    \(\text{From the graph:}\)

\(f(x)=1\ \text{when }x=4\)

\(x>1\ \text{to the right of the vertical asymptote}\)

\(\therefore\ f(x)\leq1\ \text{when}\ \ 1<x\leq4\ \ \ \text{or}\ \ \big(1,4\big]\)


♦♦ Mean mark (b) 38%.
MARKER’S COMMENT: Many students did not use their graph from part (a).

Functions, 2ADV F2 SM-Bank 20

  1. Sketch the graph of  `y = 1 - 2/(x - 2)`  on the axes below. Label asymptotes with their equations and axis intercepts with their coordinates.  (3 marks)



  2. Find the values of  `x`  for which  `1 - 2/(x - 2) >= 3`.  (1 mark)

Show Answers Only

a.

b. `x in [1, 2)`

Show Worked Solution

a.   `text(Asymptotes:)`

`x=2`

`text(As)\ \ x→ +-oo, \ y→1\ \ =>\ text(Asymptote at)\ \ y=1`

`ytext(-intercept at)\ (0,2)`

`xtext(-intercept at)\ (4,0)`




b.   `text(By inspection of the graph:)`

`1-2/(x-2) >=3\ \ text(for)\ \ x in [1, 2)`

Functions, 2ADV F2 2021 HSC 19

Without using calculus, sketch the graph of  `y = 2 + 1/(x + 4)`, showing the asymptotes and the `x` and `y` intercepts.  (3 marks)

Show Answers Only

Show Worked Solution

`text(Asymptotes:)\ x = -4`

`text(As)\ \ x -> ∞, y -> 2`

`ytext(-intercept occurs when)\ \ x = 0:`

`y = 2.25`

`xtext(-intercept occurs when)\ \ y = 0:`

`2 + 1/(x + 4) = 0 \ => \ x = -4.5`


Functions, 2ADV F2 EQ-Bank 9

Consider the function  `f(x) = 1/(4x - 1)`.

  1. Find the domain of  `f(x)`.  (1 mark)

  2. Sketch  `f(x)`, showing all asymptotes and intercepts?  (2 marks)

Show Answers Only
  1. `{text(all real)\ x,  x!=1/4}`
  2.
Show Worked Solution
i.    `4x – 1` `!= 0`
  `x` `!= 1/4`


`:.\ text(Domain:)\ {text(all real)\ x,  x!=1/4}`



ii.   `text(When)\ \ x = 0, \ y = −1`

`text(As)\ \ x -> ∞, \ y -> 0^+`

`text(As)\ \ x -> −∞, \ y -> 0^−`

Functions, 2ADV F2 SM-Bank 12

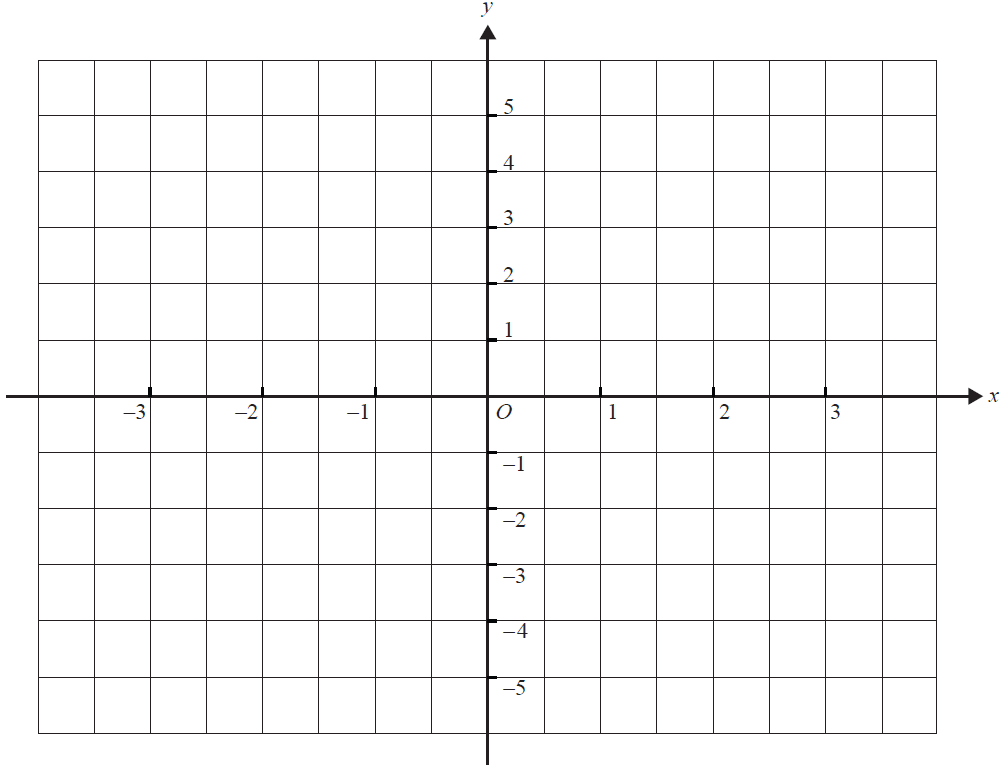

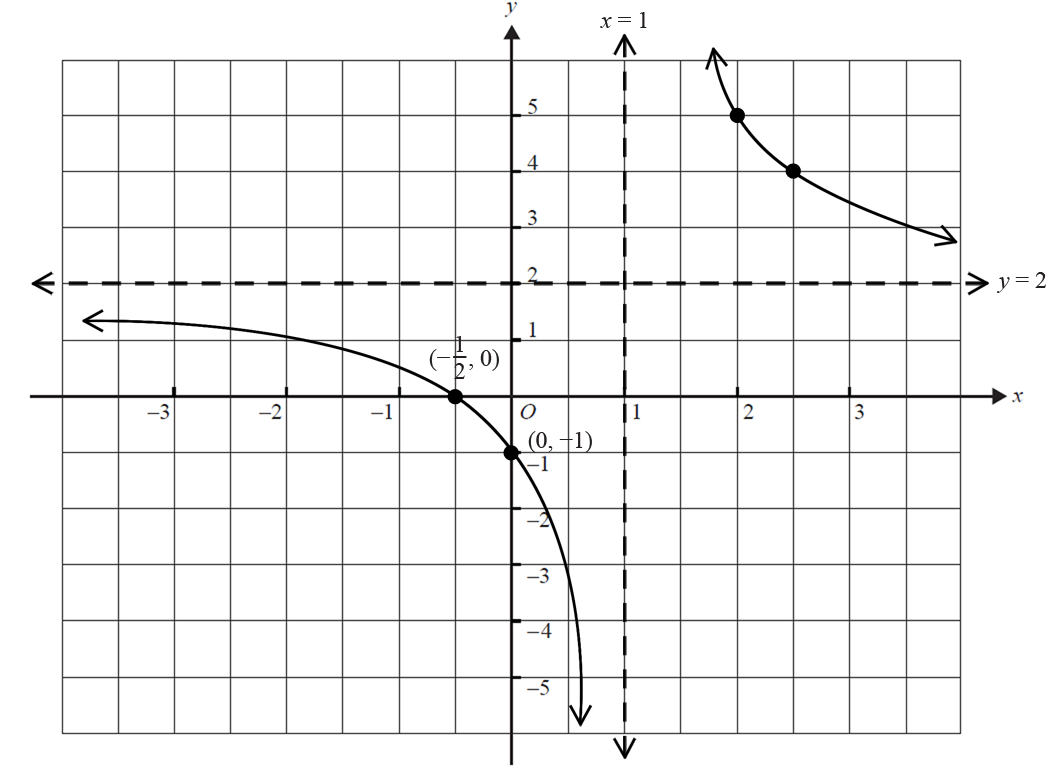

Sketch the graph of  `f(x) = (2x+1)/(x-1)`. Label the axis intercepts with their coordinates and label any asymptotes with the appropriate equation.  (4 marks)



Show Answers Only

Show Worked Solution
`(2x+1)/(x-1)` `=(2x-2+3)/(x-1)`
  `=(2(x-1)+3)/(x-1)`
  `=2 + 3/(x-1)`

COMMENT: Manipulation of the equation makes graphing much easier.


`text(Asymptotes:)\ \ x = 1,\ \ y = 2`

`text(As)\ \ x->oo,\ \ y->2(+)`

`text(As)\ \ x->-oo,\ \ y->2(-)`

`text(As)\ \ x->-1 (-),\ \ y->-oo`

`text(As)\ \ x->-1 (+),\ \ y->oo`





Functions, 2ADV F2 EQ-Bank 11

On the axes below, sketch the graph of   `f(x) = (2x-2)/(x + 1)`.

Label all axis intercepts. Label each asymptote with its equation. (4 marks)

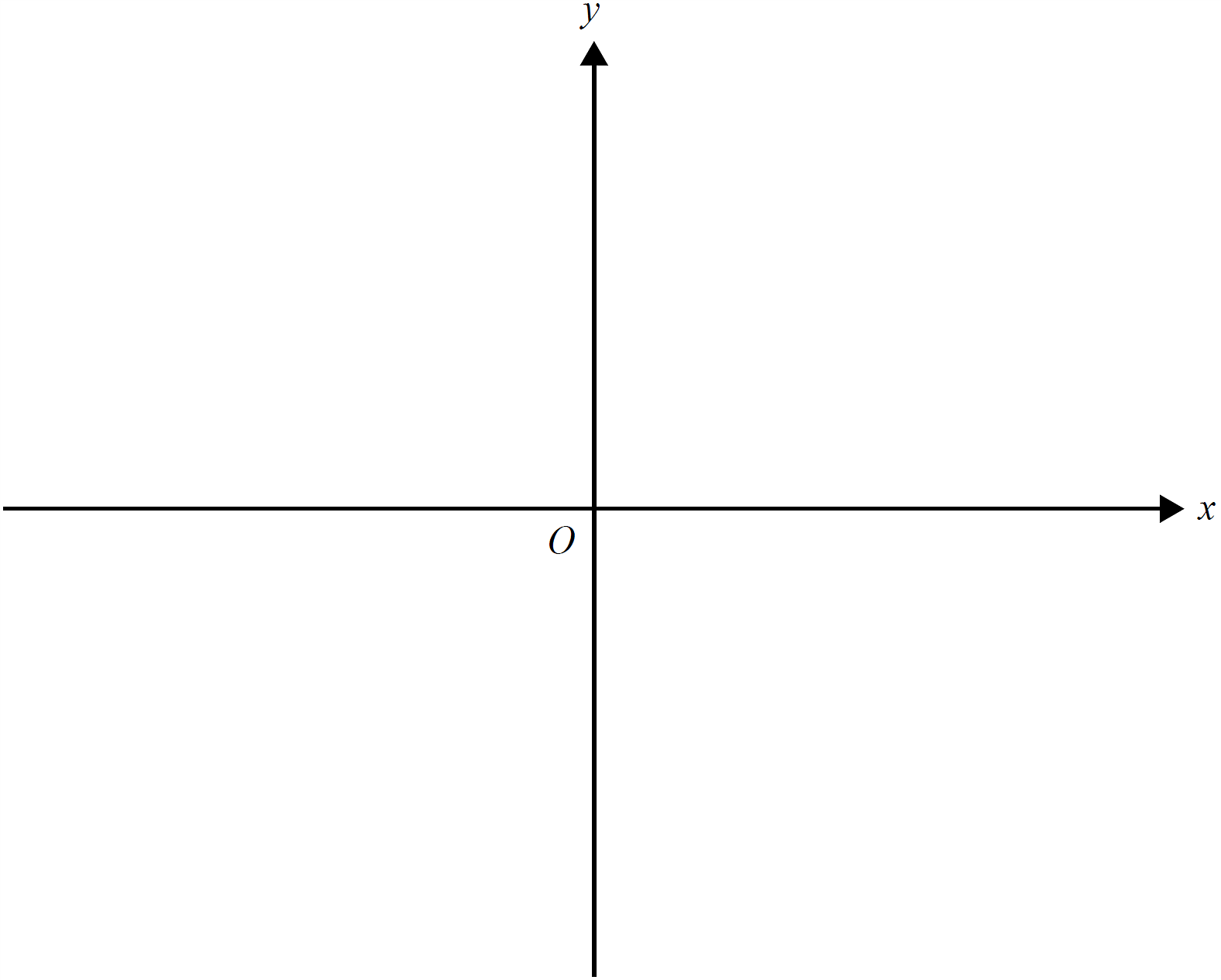

met1-2008-vcaa-q2

Show Answers Only

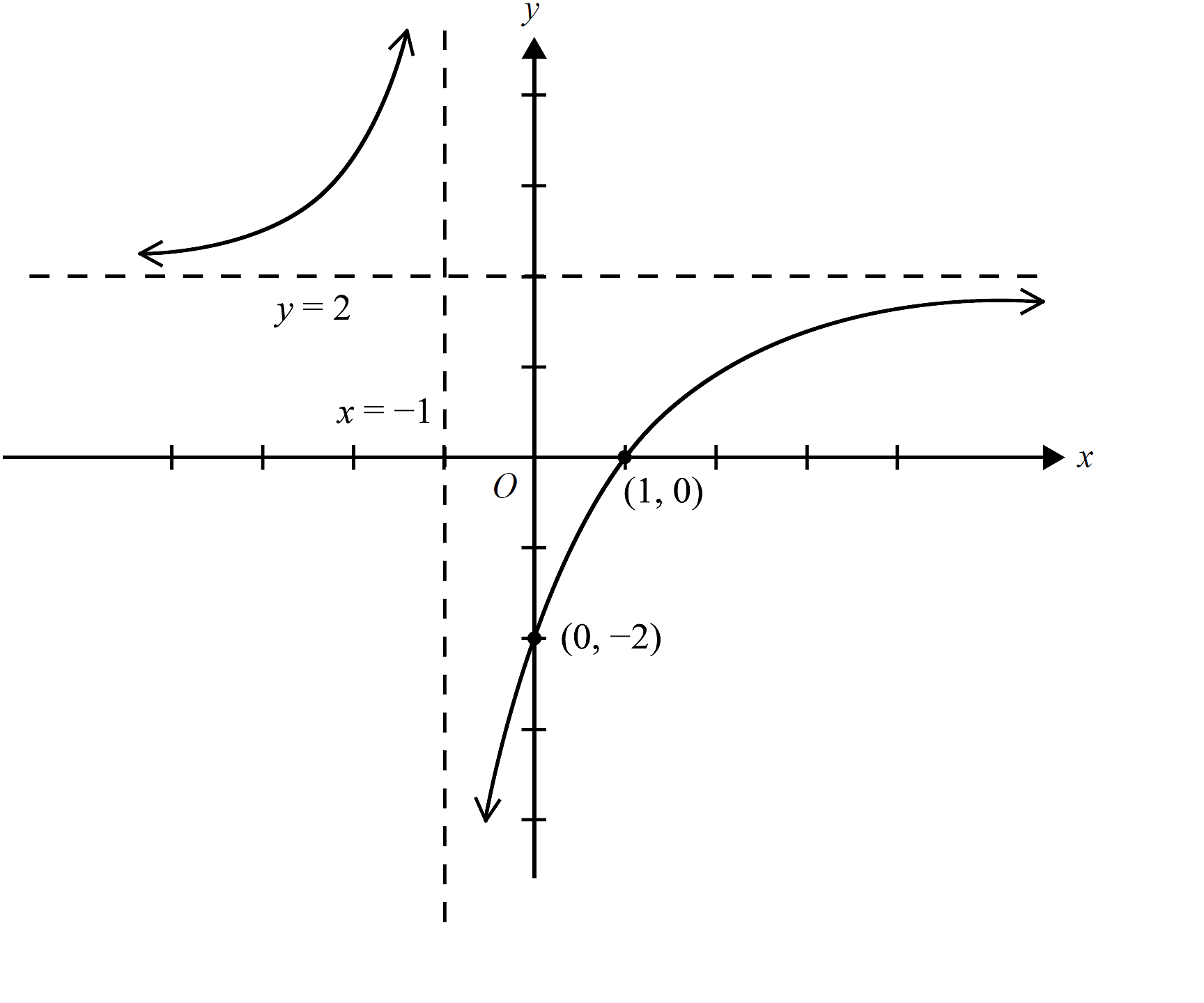

met1-2008-vcaa-q2-answer1

Show Worked Solution
`(2x-2)/(x + 1)` `=(2(x+1) – 4)/(x+1)`
  `=2- 4/((x+1)`


`text(Asymptotes:)\ \ x = −1,\ \ y = 2`

`text(As)\ \ x->oo,\ \ y->2(-)`

`text(As)\ \ x->-oo,\ \ y->2(+)`

`text(As)\ \ x->-1 (-),\ \ y->oo`

`text(As)\ \ x->-1 (+),\ \ y->-oo`



met1-2008-vcaa-q2-answer1

Functions, 2ADV F2 SM-Bank 10

Consider the function  `f(x) = x/(4 - x^2)`.

  1. Identify the domain of  `f(x)`.   (1 mark)

  2. Sketch the graph  `y = f(x)`, showing all intercepts and asymptotes.   (3 marks)

Show Answers Only
  1. `text(Domain:)\ \ text(all)\ x,\ x != +- 2`
  2.

Show Worked Solution

i.   `4-x^2 !=0`

`=> x!= 2 or -2`

`:.\ text(Domain:)\ \ text(all)\ x,\ x != +- 2`



ii. `text(Asymptotes at)\ \ x = +- 2`

`text(Passes through)\ (0,0)`

COMMENT: Note that  `x->2^(–)`  is a short way of writing as `x` approaches 2 from the negative (or left-hand) side. This notation can save time when required.
`text(As)` `\ \ x -> 2^(-),` `\ y -> oo`
  `\ \ x -> 2 ^(+),` `\ y -> – oo`
`text(As)` `\ \ x -> -2^ (-),` `\ y -> oo`
  `\ \ x -> -2^ (+),` `\ y -> -oo`
`text(As)` `\ \ x -> oo,` `\ y -> 0`
  `\ \ x -> – oo,` `\ y -> 0`



  EXT1 2013 11d



Functions, 2ADV’ F2 2007 HSC 3b

  1. Find the vertical and horizontal asymptotes of the hyperbola



    `qquad y = (x − 2)/(x − 4)`  and hence sketch the graph of  `y = (x − 2)/(x − 4)`.  (3 marks)

  2. Hence, or otherwise, find the values of  `x`  for which  `(x − 2)/(x − 4) ≤ 3`.  (2 marks)

Show Answers Only
  1. `text(See Worked Solutions.)`
  2. `x < 4\ text(and)\ x ≥ 5`
Show Worked Solution

i.    `y = (x − 2)/(x − 4)`

`text(Vertical asymptote at)\ \ x = 4`

`lim_(x → ∞) (x − 2)/(x − 4)` `= lim_(x → ∞) (1 − 2/x)/(1 − 4/x)=1`

`ytext(–intercept)\ = 1/2`

`xtext(–intercept)\ = 2`

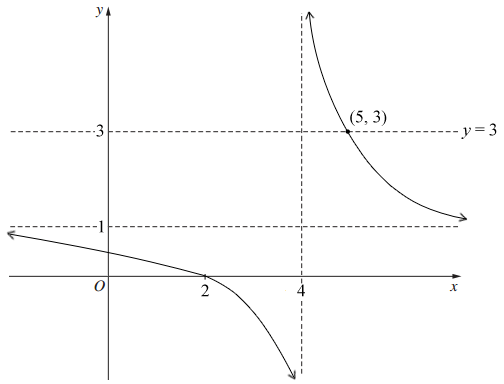

Geometry and Calculus, EXT1 2007 HSC 3b Answer



ii.  `text(Find)\ \ x\ \ text(so that)\ \ (x − 2)/(x − 4) ≤ 3`

`(x − 2)/(x − 4)` `= 3`
`x − 2` `= 3x − 12`
`2x` `= 10`
`x` `= 5`


`=>(5, 3)\ \ text(is the intersection of)\ \ y = 3\ and\ y = (x − 2)/(x − 4)`


`:. (x − 2)/(x − 4) ≤ 3\ \ text(when)\ \ x < 4\ \ text(and)\ \ x ≥ 5.`

Functions, 2ADV’ F2 2012 HSC 13b

  1. Find the horizontal asymptote of the graph  `y=(2x^2)/(x^2 + 9)`.   (1 mark)

  2. Without the use of calculus, sketch the graph  `y=(2x^2)/(x^2 + 9)`, showing the asymptote found in part (i).    (2 marks)

Show Answers Only
  1. `text(Horizontal asymptote at)\ y = 2`

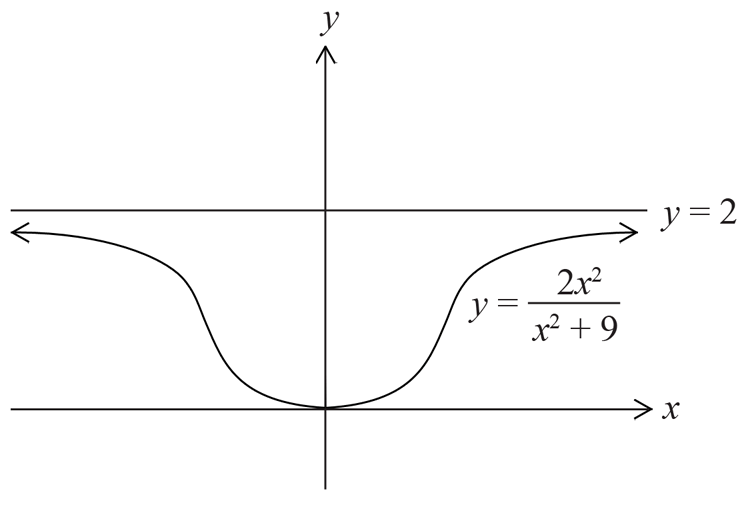

  2.
    Geometry and Calculus, EXT1 2012 HSC 13b Answer
Show Worked Solution
i.    `y` `= (2x^2)/(x^2 +9)`
    `= 2/(1 + 9/(x^2))`



`text(As)\ \ x -> oo,\ y ->2`

`text(As)\ \ x -> – oo,\ y -> 2`

`:.\ text(Horizontal asymptote at)\ y = 2`



ii.    `text(At)\ \ x = 0,\ y = 0`

`f(x) = (2x^2)/(x^2 + 9) >= 0\ text(for all)\ x`

`f(–x) = (2(–x)^2)/((–x)^2 + 9) = (2x^2)/(x^2 + 9) = f(x)`

`text(S)text(ince)\ \ f(x) = f(–x) \ \ =>\ text(EVEN function)`

Geometry and Calculus, EXT1 2012 HSC 13b Answer
