GEOMETRY, FUR1-NHT 2019 VCAA 7 MC

Two similar right-angled triangles are shown in the diagram below.




The total perimeter of the two triangles, in metres, is

  1. 21
  2. 30
  3. 36
  4. 42
  5. 45
Show Answers Only

`C`

Show Worked Solution



`text(Ratio of similar sides)\ = 3 : 6 = 1 : 2`

`text(Base of 12 m in ratio)\ 1 : 2 = 4 : 8`




`text(Length of hypotenuses:)`

`h_1 = sqrt(3^2 + 4^2) = 5`

`h_2 = sqrt(6^2 + 8^2) = 10`


`:. \ text(Perimeter) ` `= 3 + 4 + 5 + 6 + 8 + 10`
  `= 36 \ text(m)`


`=> \ C`

GEOMETRY, FUR1 2019 VCAA 4 MC

Triangle `M`, shown below, has side lengths of 3 cm, 4 cm and 5 cm.





Four other triangles have the following side lengths:

    • Triangle `N` has side lengths of 3 cm, 6 cm and 8 cm.
    • Triangle `O` has side lengths of 4 cm, 8 cm and 12 cm.
    • Triangle `P` has side lengths of 6 cm, 8 cm and 10 cm.
    • Triangle `Q` has side lengths of 9 cm, 12 cm and 15 cm.

The triangles that are similar to triangle `M` are

  1. triangle `N` and triangle `O`.
  2. triangle `N`, triangle `O` and triangle `P`.
  3. triangle `O` and triangle `P`.
  4. triangle `O` and triangle `Q`.
  5.  triangle `P` and triangle `Q`.
Show Answers Only

`E`

Show Worked Solution

`text(Similarity test: all side pairs are in the same ratio.)`

`text(Triangle)\ P:`

`3/6 = 4/8 = 5/10 =>\ text(similar)`


`text(Triangle)\ Q:`

`3/9 = 4/12 = 5/15 =>\ text(similar)`


`text(Triangles)\ N, O \ => \ text(ratios not equal)`

`=>  E`

GEOMETRY, FUR1 2016 VCAA 2 MC

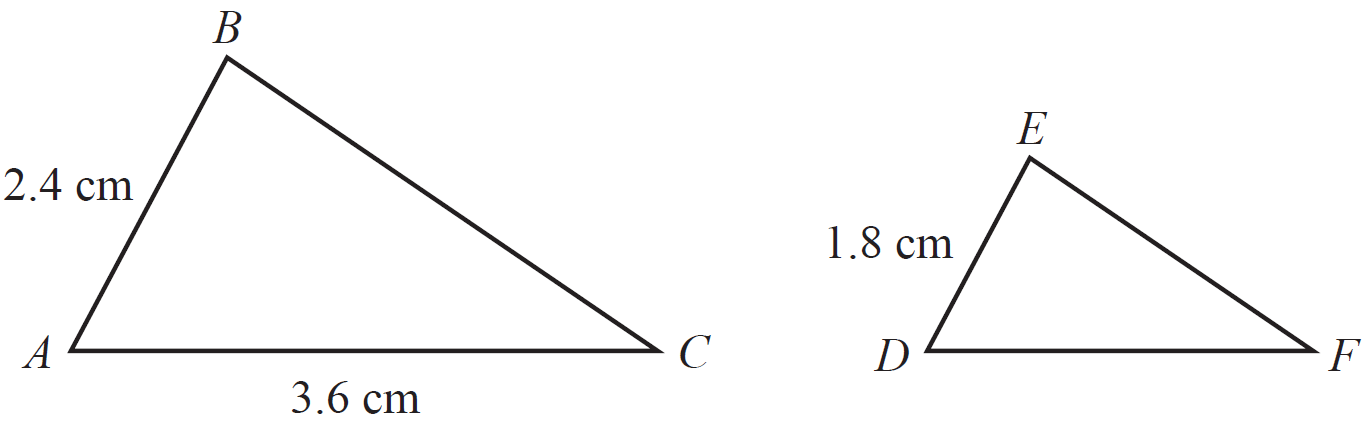

Triangle ABC is similar to triangle DEF.





The length of DF, in centimetres, is

  1. `0.9`
  2. `1.2`
  3. `1.8`
  4. `2.7`
  5. `3.6`
Show Answers Only

`D`

Show Worked Solution

`text(Using similar ratios,)`

`(DF)/(DE)` `= (AC)/(AB)`
`(DF)/1.8` `= 3.6/2.4`
`:. DF` `= ((3.6 xx 1.8))/2.4`
  `= 2.7\ text(cm)`

`=> D`

GEOMETRY, FUR2 2010 VCAA 4

A flying fox suspension wire begins at `V`, 12.5 metres above `T` as shown in the diagram below. It ends at `S`, 4.5 metres above `K`.


GEOMETRY, FUR2 2010 VCAA 4


At `P`, the flying fox wire passes over `H`.

The horizontal distances `TH` and `HK` are 95 metres and 65 metres respectively.

Calculate the vertical distance, `PH`, in metres.  (2 marks)

Show Answers Only

`7.75\ text(m)`

Show Worked Solution

GEOMETRY, FUR2 2010 VCAA 4 Answer


`Delta VAS\ text(|||)\ Delta PBS\ \ (A A A)`

♦♦♦ Mean mark 11%.
`(PB)/(BS)` `= (VA)/(AS)`
`(PB)/(65)` `= 8/160`
`:. PB` `= (8 xx 65)/160`
  `= 3.25\ text(m)`



`:. PH` `= PB + BH`
  `= 3.25 + 4.5`
  `= 7.75\ text(m)`



`text(Alternative solution)`

`text(In)\ Delta VAS,`

`tantheta` `= 8/160`
`:. theta` `= 2.862…^@`



`text(In)\ DeltaPBS,`

`tantheta` `= (PB)/65`
`PB` `= 65 xx tan2.862…^@`
  `= 3.25\ text(m)`



`:. PH = 3.25 + 4.5 = 7.75\ text(m)`

GEOMETRY, FUR1 2011 VCAA 8 MC

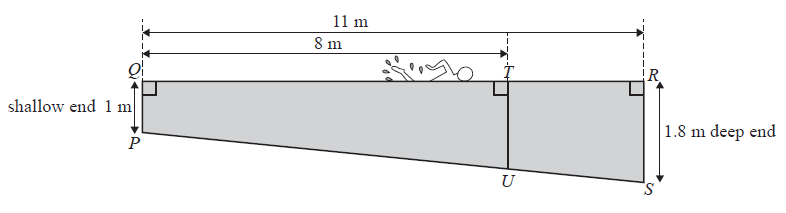

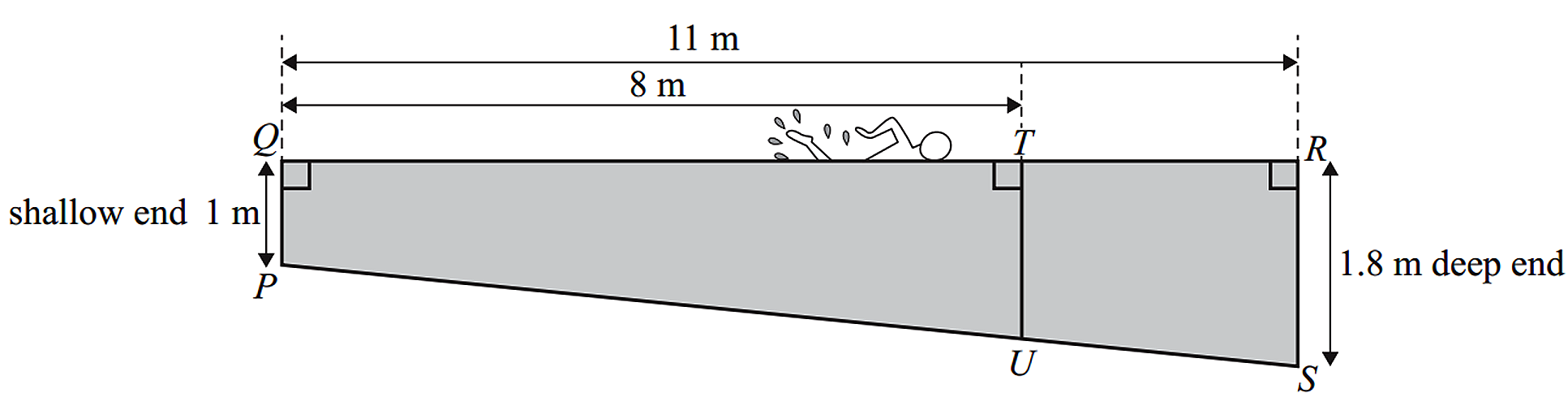

The diagram below shows a cross-section, ` PQRS`, of a swimming pool.

The swimming pool is 11 metres long and the depth increases uniformly from 1 metre at the shallow end to 1.8 metres at the deep end.

The depth of the water at a point 8 metres from the shallow end, represented by `TU` on the diagram is closest to

A.  `1.25\ text(metres)`

B.  `1.31\ text(metres)`

C.  `1.34\ text(metres)`

D.  `1.58\ text(metres)`

E.  `1.62\ text(metres)`

Show Answers Only

`D`

Show Worked Solution

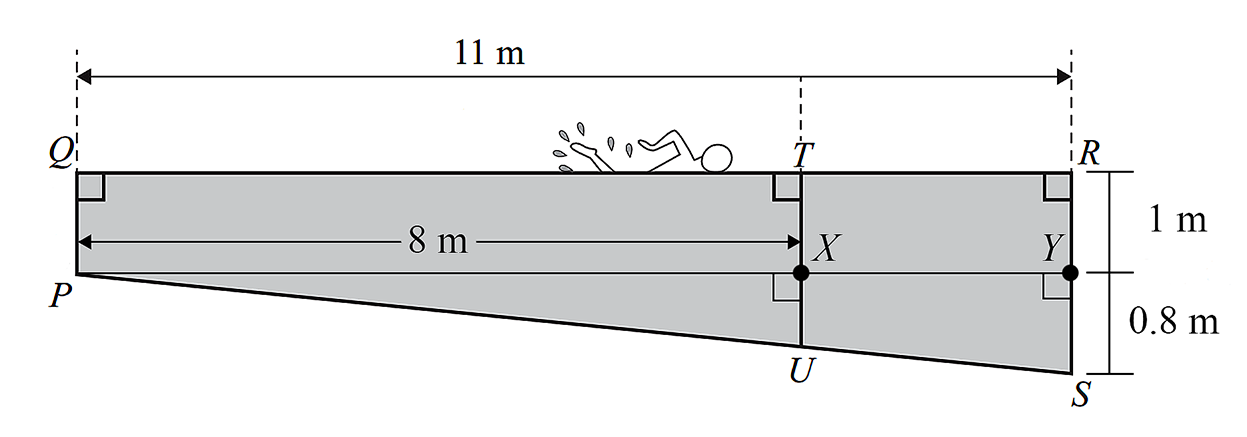

`/_ PXU = /_ PYS = 90^@`

♦ Mean mark 40%.
MARKERS’ COMMENT: The most common mistake was to apply the properties of similar triangles to trapeziums, leading to an incorrect answer of B.

`/_ XPU\ text(is common)`

`:. Delta PXU\ text(|||)\ Delta PYS\ text{(equiangular)}`

`(XU)/8` `= (YS)/11` `text{(corresponding sides of}`
`\ text{similar triangles)}`
`:. XU` `= (8 xx 0.8)/11`
  `= 0.581…\ \ text(m)`



`:. text(Depth)\ TU = 1.581…\ \ text(m)`

`=> D`

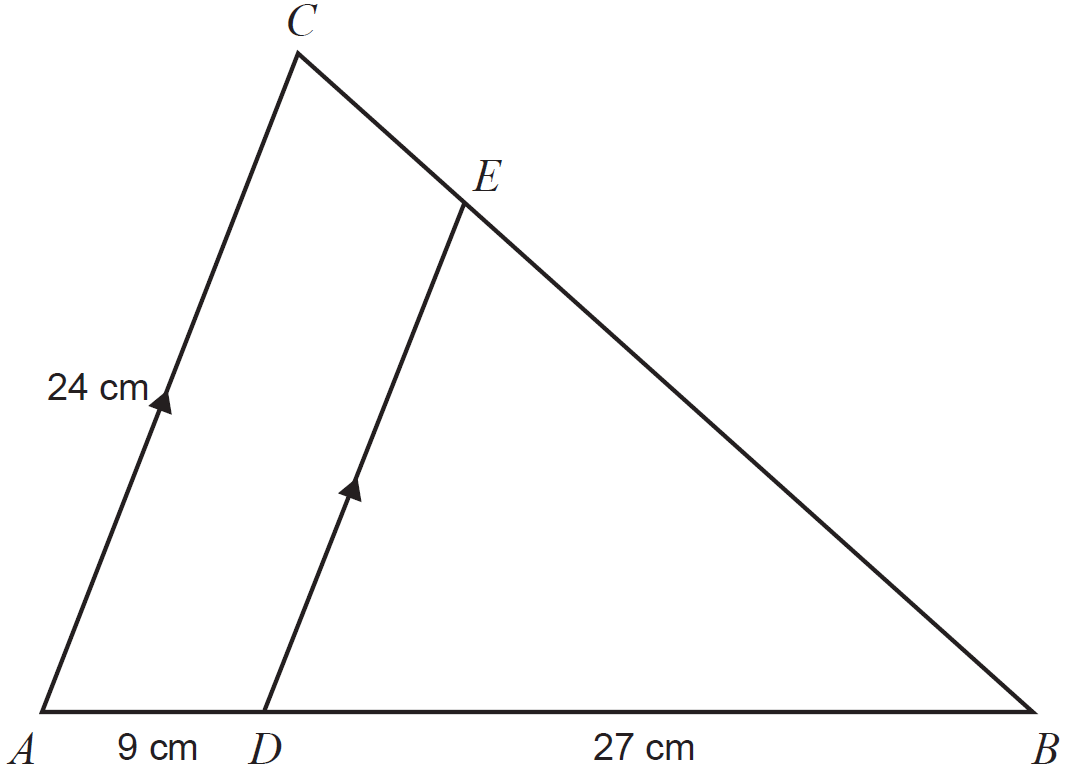

GEOMETRY, FUR1 2006 VCAA 7 MC

GEOMETRY, FUR1 2006 VCAA 7 MC


In the diagram, `AD = 9\ text(cm),  AC = 24\ text(cm) and DB = 27\ text(cm.)`

Line segments `AC` and `DE` are parallel.

The length of `DE` is

A.     `6\ text(cm)`

B.     `8\ text(cm)`

C.   `12\ text(cm)`

D.   `16\ text(cm)`

E.   `18\ text(cm)`

Show Answers Only

`E`

Show Worked Solution

GEOMETRY, FUR1 2006 VCAA 7 MC Answer

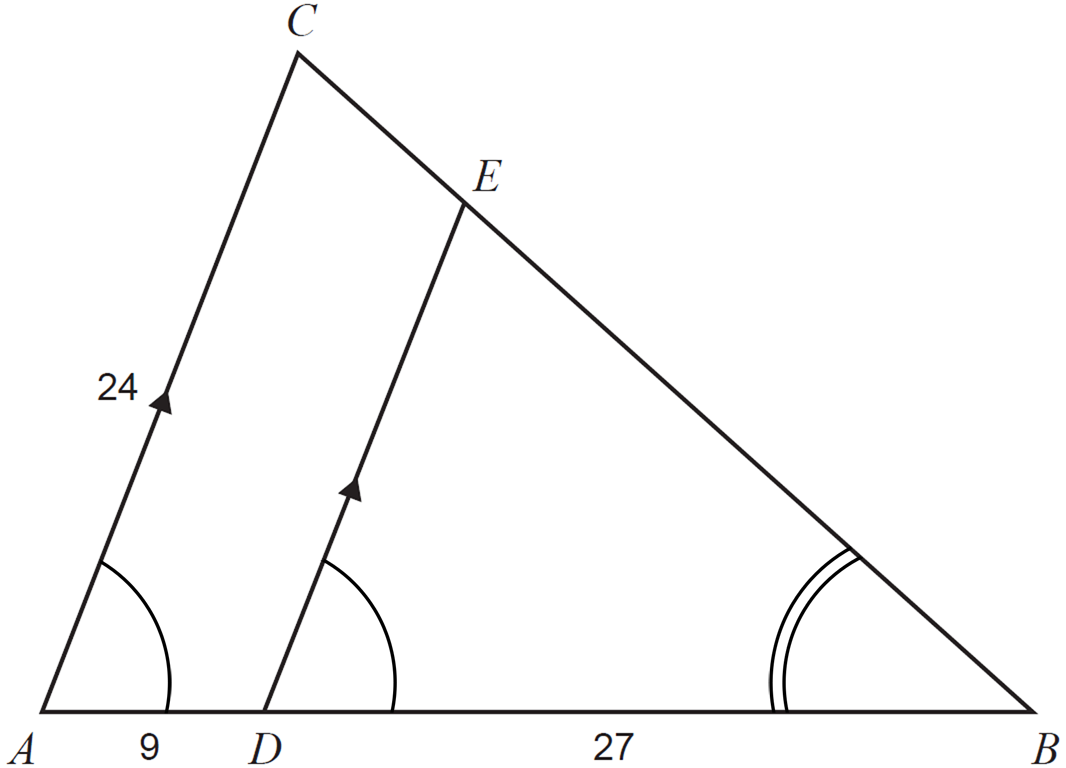

`/_CAD = /_EDB\ \ \ text{(} text(corresponding angles,)\ AC\ text(||)\ DE text{)}`

`/_DBE\ text(is common)`

`:. Delta ACB\ text(|||)\ Delta DEB\ \ text{(equiangular)}`



`:.\ (DE)/(DB)` `= (AC)/(AB)` `\ \ \ text{(corresponding sides}`
`\ \ \ \ text{of similar triangles)}`
`(DE)/27` `= 24/36`
`DE` `= (24 xx 27)/36`
  `= 18\ text(cm)`


`=>  E`

GEOMETRY, FUR1 2013 VCAA 6 MC

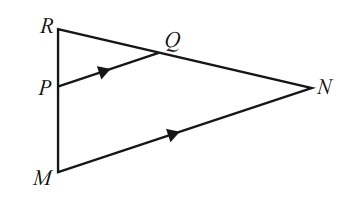

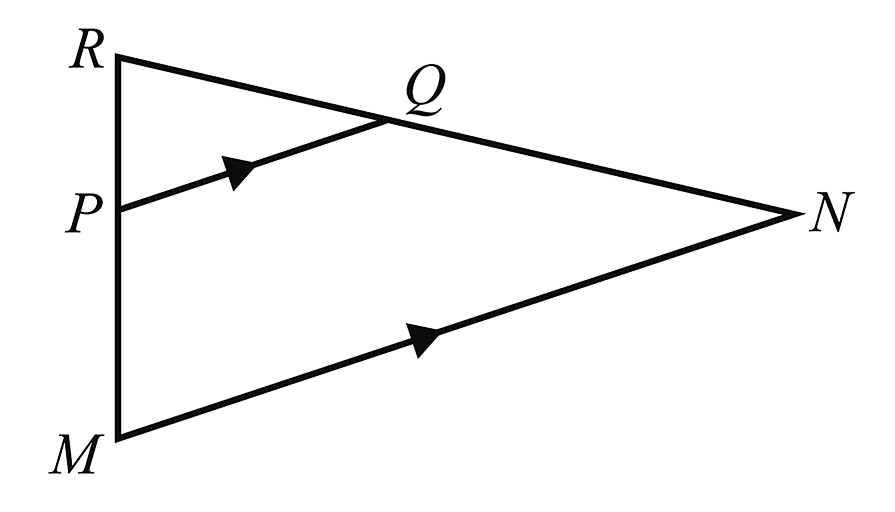

In triangle `MNR`, point `P` lies on side `MR` and point `Q` lies on side `NR`.

The lines `PQ` and `MN` are parallel.

The length of `RQ` is 4 cm, the length of `QN` is 6 cm and the length of `PQ` is 5 cm.


The length of `MN`, in cm, is equal to

A.    `7.5`

B.    `8.3`

C.  `12.0`

D.  `12.5`

E.  `15.0`

Show Answers Only

`D`

Show Worked Solution

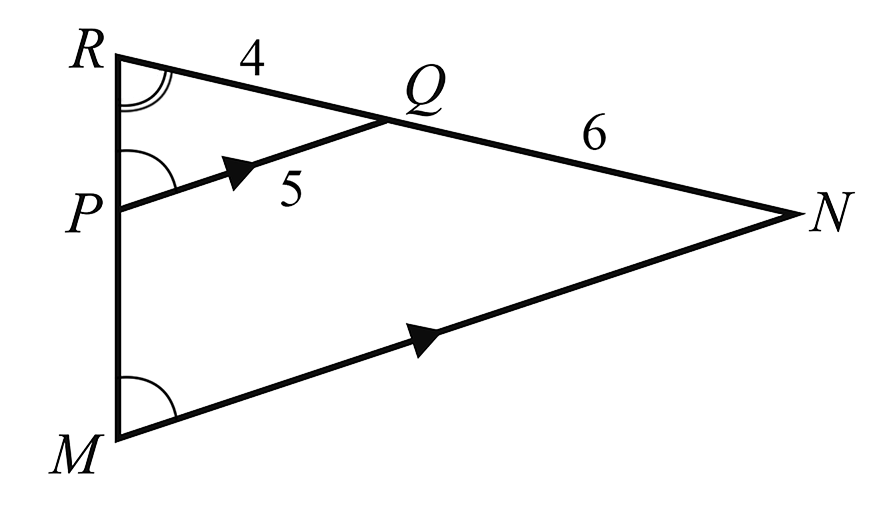

`/_ PRQ\ \ text(is common)`

`/_ RPQ = /_ RMN\ \ (text{corresponding}\ PQ\ text{||}\ MN)`

`:. Delta RPQ\ text(|||)\ Delta RMN\ text{(equiangular)}`

`∴ (MN)/(RN)` `= (PQ)/(RQ)` `\ \ \ \ text{(corresponding sides of}`
`\ \ \ \ \ text{similar triangles)}`
`(MN)/10` `= 5/4`
`:.MN` `= 12.5\ text(cm)`

`=> D`

GEOMETRY, FUR1 2009 VCAA 1 MC

GEOMETRY, FUR1 2009 VCAA 1 MC


The two triangles, `ABC` and `FGH`, are similar.

The length `GH` is

A.   `14\ text(cm)`

B.   `24\ text(cm)`

C.   `26\ text(cm)`

D.   `28\ text(cm)`

E.   `32\ text(cm)`

Show Answers Only

`D`

Show Worked Solution

`Delta ABC\ text(|||)\ Delta FGH`

`:. (GH)/(BC)` `=(GF)/(BA)`
`(GH)/(14)` `=(24)/(12)`
`:.GH` `= 28 \ text(cm)`


`=>  D`
