ENGINEERING, AE 2023 HSC 17 MC

Three machined parts drawn to AS 1100 are shown.


Which row of the table correctly identifies the AS 1100 standard representations?


  \(1\) \(2\) \(3\)
\( \text{A.} \) \( \text{Counterbore} \) \( \text{Spotface} \) \( \text{Countersink} \)
\( \text{B.} \) \( \text{Spotface} \) \( \text{Countersink} \) \( \text{Counterbore} \)
\( \text{C.} \) \( \text{Countersink}  \) \( \text{Spotface} \) \( \text{Counterbore} \)
\( \text{D.} \) \( \text{Countersink} \) \( \text{Counterbore} \) \( \text{Spotface} \)
Show Answers Only

\(  C \)

Show Worked Solution

\(\Rightarrow  C \)

ENGINEERING, AE 2023 HSC 4 MC

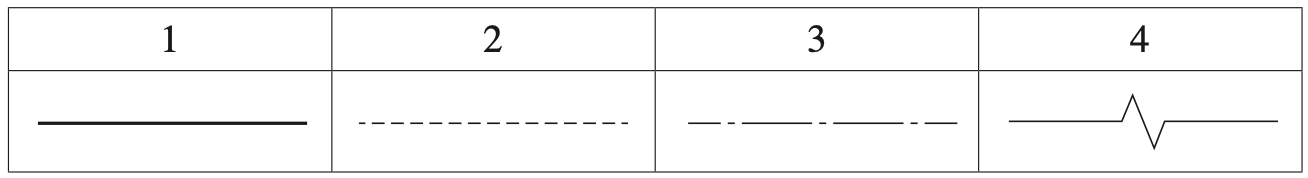

Four types of lines are shown.



Which row of the table correctly identifies the typical application of each line type according to AS 1100 ?


  \(1\) \(2\) \(3\) \(4\)
\( \text{A.} \) \( \text{Outline} \) \( \text{Concealed} \) \( \text{Centre}\) \( \text{Break}\)
\( \text{B.} \) \( \text{Solid} \) \( \text{Hidden detail}\) \( \text{Chain}\) \( \text{End}\)
\( \text{C.} \) \( \text{Outline} \) \( \text{Hidden detail}\ \ \ \ \ \) \( \text{Centre}\) \( \text{Break}\)
\( \text{D.} \) \( \text{Development}\ \ \ \ \  \) \( \text{Stitch line}\) \( \text{Reference}\ \ \ \ \ \) \( \text{Section}\ \ \ \ \ \ \)
Show Answers Only

\( C \)

Show Worked Solution

\(\Rightarrow C \)

ENGINEERING, AE 2020 HSC 27a

Explain why engineering production drawings prepared for Australian use should adhere to AS 1100 drawing standards.   (2 marks)

Show Answers Only
  • AS1100 standards are important as they provide an unambiguous, standard method of communicating engineering drawings.
  • This standard can be applied nationally and understood internationally due to the strict rules which must be adhered to.
  • It is far easier to communicate ideas with visuals rather than words, and using these standards makes this communication clearer and easier to understand.
Show Worked Solution
  • AS1100 standards are important as they provide an unambiguous, standard method of communicating engineering drawings.
  • This standard can be applied nationally and understood internationally due to the strict rules which must be adhered to.
  • It is far easier to communicate ideas with visuals rather than words, and using these standards makes this communication clearer and easier to understand.

ENGINEERING, AE 2020 HSC 21c

The following drawing provides a series of orthographic views of a machine part, supported by a 'modified' title block. Some of the features have been labelled with the numbers 4 to 10.



With reference to the orthographic views and the modified title block, complete the table below.   (4 marks)


Show Answers Only

Show Worked Solution


Mean mark 51%.
