Probability, STD2 S2 2011 HSC 25c

At another school, students who use mobile phones were surveyed. The set of data is shown in the table.

2UG 2011 25c

  1. How many students were surveyed at this school?   (1 mark)

  2. Of the female students surveyed, one is chosen at random. What is the probability that she uses pre-paid?   (1 mark)

Ten new male students are surveyed and all ten are on a plan. The set of data is updated to include this information.

  1. What percentage of the male students surveyed are now on a plan? Give your answer to the nearest per cent.   (1 mark)

Show Answers Only

a.    `580`

b.    `text(54%)`

c.    `text(42%)`

Show Worked Solution

a.    `text(# Students surveyed)=319+261=580`


b.    `Ptext{(Female uses prepaid)}`

`=text(# Females on prepaid)/text(Total females)=172/319=0.53918… ~~ 54\text{% (nearest %)}`


c.    `text(% Males on plan)` `=text(# Males on plan + 10)/text(Total males + 10)=(103+10)/(261+10)`
  `=113/271=0.4169…=42\text{%  (nearest %)}`

Statistics, STD2 S1 2011 HSC 25b

The graph below displays data collected at a school on the number of students
in each Year group, who own a mobile phone.


2UG 2011 25b


  1. Which Year group has the highest percentage of students with mobile phones?   (1 mark)

  2. Two students are chosen at random, one from Year 9 and one from Year 10.



    Which student is more likely to own a mobile phone?



    Justify your answer with suitable calculations.   (2 marks)

  3. Identify a trend in the data shown in the graph.   (1 mark)

Show Answers Only

a.   `text{Year 12 (100%)}`

b.   `text(Year 10)`

c.   `text(See Worked Solutions for detail)`

Show Worked Solution

a.   `text(Year 12 (100%))`

MARKER’S COMMENT: Many students ignore the instruction to use calculations and lose marks as a result.


b.     `text(% Ownership in Year 9)` `=55/70`
    `=\ text{78.6%  (1d.p.)}`
      `text(% Ownership in Year 10)` `=50/60`
    `=\ text{83.3%  (1d.p.)}`


`:.\ text(The Year 10 student is more likely to own a mobile phone.)`


c.   `text(% Ownership increases as students)`

 `text(progress from Year 7 to Year 12.)`

Statistics, STD2 S1 2011 HSC 25a

A study on the mobile phone usage of NSW high school students is to be conducted.

Data is to be gathered using a questionnaire.

The questionnaire begins with the three questions shown.

2UG 2011 25a

  1. Classify the type of data that will be collected in Q2 of the questionnaire.   (1 mark)

  2. Write a suitable question for this questionnaire that would provide discrete ordinal data.   (1 mark)

  3. An initial study is to be conducted using a stratified sample.



    Describe a method that could be used to obtain a representative stratified sample.   (1 mark)

  4. Who should be surveyed if it is decided to use a census for the study?   (1 mark)

Show Answers Only

a.    `text(Categorical)`

b.    `text(See Worked Solutions)`

c.    `text(See Worked Solutions)`

d.    `text(A census would involve all high school students in NSW.)`

Show Worked Solution

a.    `text(Categorical)`


b.    `text(How often do you use your mobile phone each day?)`

`text{(Option structure:- Never, Rarely, Sometimes, Often, Always.)}`


c.   `text(The method could be to work out how many)`

♦♦♦ Mean mark 7%.
COMMENT: Know random, systematic and stratified sampling definitions.

`text{students are in each year and ask 10% of the}`

`text{students in each year. (Note the sample of}`

`text{students in each year must be  proportional to}`

`text{their percentage in the population).}`



♦♦♦ Mean mark 18%.
MARKER’S COMMENT: A specific population is required here.

d.    `text(A census would involve all high school)`

`text(students in NSW.)`

Financial Maths, STD2 F4 2010 HSC 28a

The table shows monthly home loan repayments with interest rate changes from February to October 2009.

 2010 28a

  1. What is the change in monthly repayments on a  $250 000  loan from February 2009 to April 2009?   (1 mark)

  2. Xiang wants to borrow  $307 000  to buy a house.



    Xiang’s bank approves loans for customers if their loan repayments are no more than 30% of their monthly gross salary.



    Xiang’s monthly gross salary is $6500.



    If she had applied for the loan in October 2009, would her bank have approved her loan?



    Justify your answer with suitable calculations.   (3 marks)

  3. Jack took out a loan at the same time and for the same amount as Xiang.



    Graphs of their loan balances are shown.

          2010 28a2

    Identify TWO differences between the graphs and provide a possible explanation for each difference, making reference to interest rates and/or loan repayments.   (2 marks)

Show Answers Only

a.    `text(Monthly repayments decrease by $15)`

b.    `text(S)text(ince repayments of 1987.29 > 1950, the loan)`

`text(would not have been approved.)`

c.    `text(Differences)`

`text(1. Jack’s loan balance falls more sharply for first 12 years)`

`text(2. Jack’s loan balance falls less sharply between years 12-30.)`


`text(Explanation)`

`text(1. Jack made larger repayments for first 12 years, OR)`

`text(Jack made the same repayments but had a lower interest rate)`

`text(for the first 12 years.)`

`text(2. Jack made smaller repayments in years 12 – 30.)`

Show Worked Solution
a.     `text(Repayment)\ text{(Feb 09)}` `= 1588`
  `text(Repayment)\ text{(Apr 09)}` `= 1573`

`text(Difference) = 1588-1573 = 15`

`:.\ text(Monthly repayments decrease by $15)`



♦ Mean mark 39%
MARKER’S COMMENT: Borrowing $307,000 can be achieved by borrowing $300,000, and then `7` times the table repayment value for borrowing $1000.

b.    `text(Loan) = $307\ 000`

`text{Repayments (Oct 09)}` `= 1942 + (7 xx 6.47)= 1942 + 45.29`
  `= $1987.29\ text(per month)`


`text(30% Gross salary)= 6500 xx\ text(30%)= $1950\ text(per month)`


`:.\ text(S)text(ince repayments of $1987.29 > $1950, the loan)`

`text(would not have been approved.)`


c.    `text(Differences)`

`text(1. Jack’s loan balance falls more sharply for first 12 years.)`

`text(2. Jack’s loan balance falls less sharply between years 12-30.)`


`text{Explanation(s)}`

♦ Mean mark 36%
MARKER’S COMMENT: Explanations were generally poor and many failed to refer directly to the graphs shown, or reference Xiang or Jack directly.

`text(1. Jack made larger repayments for 1st 12 years, OR)`

`text(Jack made the same repayments but had a)`

`text(lower interest rate for the first 12 years.)`

`text(2. Jack made smaller repayments in years 12-30.)`

Probability, STD2 S2 2013 HSC 30b

In a class there are 15 girls (G) and 7 boys (B). Two students are chosen at random to be class representatives.

  1. Complete the tree diagram below.   (2 marks)



  2. What is the probability that the two students chosen are of the same gender?   (2 marks)

Show Answers Only

 a.

b.    `6/11`

Show Worked Solution

a.

b.      `Ptext{(same gender)}` `=P(G,G) + P(B,B)`
    `=(15/22 xx 14/21) + (7/22 xx 6/21)`
    `=210/462 + 42/462`
    `=252/462=6/11`
♦ Mean mark (b) 40%.

Probability, STD2 S2 2013 HSC 29c

Mary is designing a website that requires unique logins to be generated.

She plans to generate the logins using two capital letters from the alphabet followed by a series of numerals from 0 to 9 inclusive. All logins will have the same number of numerals. Repetition of letters and numerals is allowed.

What is the minimum number of numerals required for each login so that Mary can generate at least 3 million logins?

Justify your answer with suitable calculations.   (2 marks)

Show Answers Only

 `4`

Show Worked Solution
♦ Mean mark 34%
COMMENT: Students can use their rough working to find an appropriate “number of numerals” where their answer should start.

`text(# Combinations must be > 3 million:)`

`text(If we have 3 numerals,)`

`text(# Combinations)` `=26 xx 26 xx 10 xx 10 xx 10`
  `=676\ 000 < 3\ 000\ 000`

`=> text(need more numeral(s) )`



`text(If we have 4 numerals,)`

`text(# Combinations)` `=26 xx 26 xx 10 xx 10 xx 10 xx 10`
  `=6760\ 000 > 3\ 000\ 000`



`:.\ text(Minimum number of numerals) = 4`



Probability, STD2 S2 2011 HSC 24b

A die was rolled 72 times. The results for this experiment are shown in the table.

\begin{array} {|c|c|}
\hline
\rule{0pt}{2.5ex} \textit{Number obtained} \rule[-1ex]{0pt}{0pt} & \textit{Frequency} \\
\hline
\rule{0pt}{2.5ex} \ 1 \rule[-1ex]{0pt}{0pt} & 16 \\
\hline
\rule{0pt}{2.5ex} \ 2 \rule[-1ex]{0pt}{0pt} & 11 \\
\hline
\rule{0pt}{2.5ex} \ 3 \rule[-1ex]{0pt}{0pt} & \textbf{A} \\
\hline
\rule{0pt}{2.5ex} \ 4 \rule[-1ex]{0pt}{0pt} & 8 \\
\hline
\rule{0pt}{2.5ex} \ 5 \rule[-1ex]{0pt}{0pt} & 12 \\
\hline
\rule{0pt}{2.5ex} \ 6 \rule[-1ex]{0pt}{0pt} & 15 \\
\hline
\end{array}

  1. Find the value of `A`.   (1 mark)

  2. What was the relative frequency of obtaining a 4.   (1 mark)

  3. If the die was unbiased, which number was obtained the expected number of times?   (1 mark)

Show Answers Only

a.    \(10\)

b.    \(\dfrac{1}{9}\)

c.    \(5\)

Show Worked Solution

a.    \(\text{Since die rolled 72 times:}\)

\(A=72-(16+11+8+12+15)=10\)

♦ Mean mark 38%
IMPORTANT: Many students confused ‘relative frequency’ with ‘frequency’ and incorrectly answered 8.


b.    \(\text{Relative frequency of 4}=\dfrac{8}{72}=\dfrac{1}{9}\)


c.    \(\text{Expected frequency of any number}=\dfrac{1}{6}\times 72=12\)

\(\therefore\ \text{5 was obtained the expected number of times.}\)

Algebra, STD2 A2 2011 HSC 23b

Sticks were used to create the following pattern.

The number of sticks used is recorded in the table.

\begin{array} {|l|c|}
\hline
\rule{0pt}{2.5ex} \text{Shape $(S)$} \rule[-1ex]{0pt}{0pt} & \;\;\; 1 \;\;\; & \;\;\; 2 \;\;\; & \;\;\; 3 \;\;\; \\
\hline
\rule{0pt}{2.5ex} \text{Number of sticks $(N)$}\; \rule[-1ex]{0pt}{0pt} & \;\;\; 5 \;\;\; & \;\;\; 8 \;\;\; & \;\;\; 11 \;\;\; \\
\hline
\end{array}

  1. Draw Shape 4 of this pattern.  (1 mark)

  2. How many sticks would be required for Shape 100?    (1 mark)

  3. Is it possible to create a shape in this pattern using exactly 543 sticks?



    Show suitable calculations to support your answer.    (2 marks)

Show Answers Only
  1. `text(See Worked Solutions.)`
  2. `302`
  3. `text(No)`
Show Worked Solution

  i.     `text(Shape 4 is shown below:)`

ii.     `text(S)text(ince)\ \ N=2+3S`

♦ Mean mark 48%.
MARKER’S COMMENT: Students should attempt to find a “rule” in such questions, and use this formula to solve the question, as per the Worked Solution.
`text(If)\ \ S` `=100`,
`N` `=2+(3xx100)`
  `=302`



iii.    `543` `=2+3S`
  `3S` `=541`
  `S` `=180 1/3`



`text(S)text(ince S is not a whole number, 543 sticks)`

`text(will not create a figure.)`

Statistics, STD2 S1 2011 HSC 17 MC

The heights of the players in a basketball team were recorded as 1.8 m, 1.83 m, 1.84 m, 1.86 m and 1.92 m. When a sixth player joined the team, the average height of the players increased by 1 centimetre.

What was the height of the sixth player?

  1. 1.85 m
  2. 1.86 m
  3. 1.91 m
  4. 1.93 m
Show Answers Only

`C`

Show Worked Solution
`text(Old Mean)` `=(1.8+1.83+1.84+1.86+1.92)-:5`
  `=9.25/5=1.85\ \ text(m)`


`text{S}text{ince the new mean = 1.86m  (given)}`

`text(New Mean)` `=text(Height of all 6 players) -: 6`
`:.1.86` `=(9.25+h)/6\ \ \ \ (h\ text{= height of new player})`
`h` `=(6xx1.86)-9.25=1.91\ \ text(m)`

`=> C`

Statistics, STD2 S1 2011 HSC 14 MC

A data set of nine scores has a median of 7.

The scores  6, 6, 12 and 17  are added to this data set.

What is the median of the data set now?

  1. 6
  2. 7
  3. 8
  4. 9
Show Answers Only

`B`

Show Worked Solution

`text(S)text(ince an even amount of scores are added below and)`

`text(above the existing median, it will not change.)`

`=>B`

Financial Maths, STD2 F5 2009 HSC 27a

The table shows the future value of a $1 annuity at different interest rates over different numbers of time periods.


2UG-2009-27a

  1. What would be the future value of a `$5000` per year annuity at 3% per annum for 6 years, with interest compounding yearly?   (1 mark)

  2. What is the value of an annuity that would provide a future value of  `$407\ 100`  after 7 years at 5% per annum compound interest?   (1 mark)

  3. An annuity of $1000 per quarter is invested at 4% per annum, compounded quarterly for 2 years. What will be the amount of interest earned?   (3 marks)

Show Answers Only

a.    `$32\ 342`

b.    `$50\ 000`

c.    `$285.70`

Show Worked Solution

a.    `text(Table factor when)\ \ n = 6,\ \ \ r =\ 3text(%) \ => \ 6.4684`

`:.\ FV= 5000 xx 6.4684= $32\ 342`


b.    `text(Table factor when)\ \ n = 7,\ \ \ r =\ text(5%)`

♦ Mean mark (b) 45%
MARKER’S COMMENT: A common error was to multiply $407 100 by 8.1420 rather than divide.

`=> 8.1420`

`text(Let)\ \ A = text(annuity)`

`FV= A xx 8.1420`

`A= (FV)/8.1420= (407\ 100)/8.1420= $50\ 000`


c.    `n=8\ \ \ (text(8 quarters in 2 years) )`

♦♦ Mean mark (c) 31%
MARKER’S COMMENT: When questions asked for the interest paid on annuities, remember to subtract the total principal amounts contributed.

`r = text(4%)/4 =\ text{1%  per quarter}`

`:.\ text(Table factor) => 8.2857`

`FV=1000 xx 8.2857=$8285.70`

`text(Interest)` `= FV (text(annuity) )\-text(Principal)`
  `= 8285.70-(8 xx 1000)= $285.70`


`:.\ text(Interest earned is $285.70)`

Algebra, STD2 A4 2009 HSC 28a

Anjali is investigating stopping distances for a car travelling at different speeds. To model this she uses the equation

`d = 0.01s^2+ 0.7s`,

where `d` is the stopping distance in metres and `s` is the car’s speed in km/h.

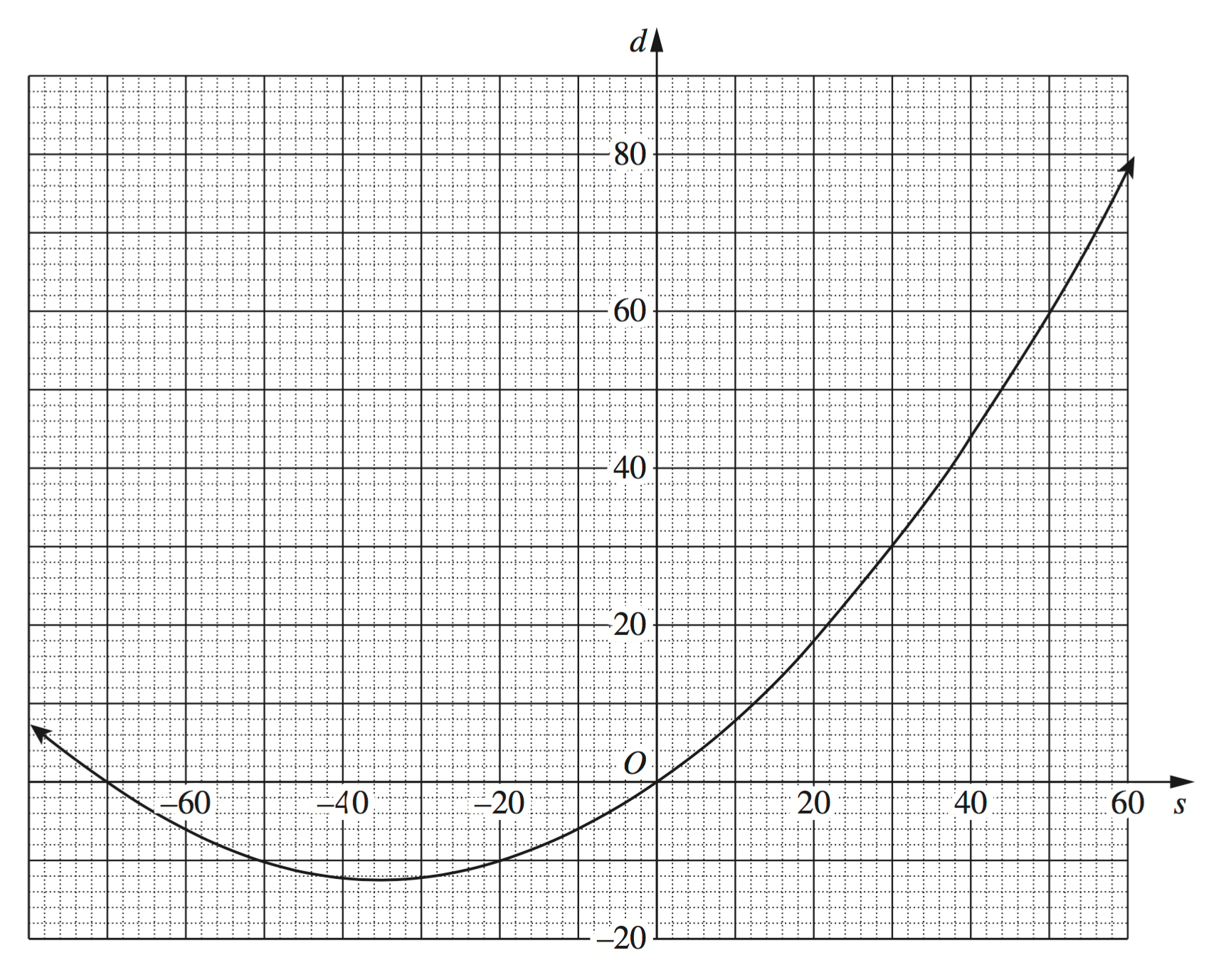

The graph of this equation is drawn below.

2009 28a

  1. Anjali knows that only part of this curve applies to her model for stopping distances.



    In your writing booklet, using a set of axes, sketch the part of this curve that applies for stopping distances.   (1 mark)

  2. What is the difference between the stopping distances in a school zone when travelling at a speed of 40 km/h and when travelling at a speed of 70 km/h?   (2 marks)

Show Answers Only

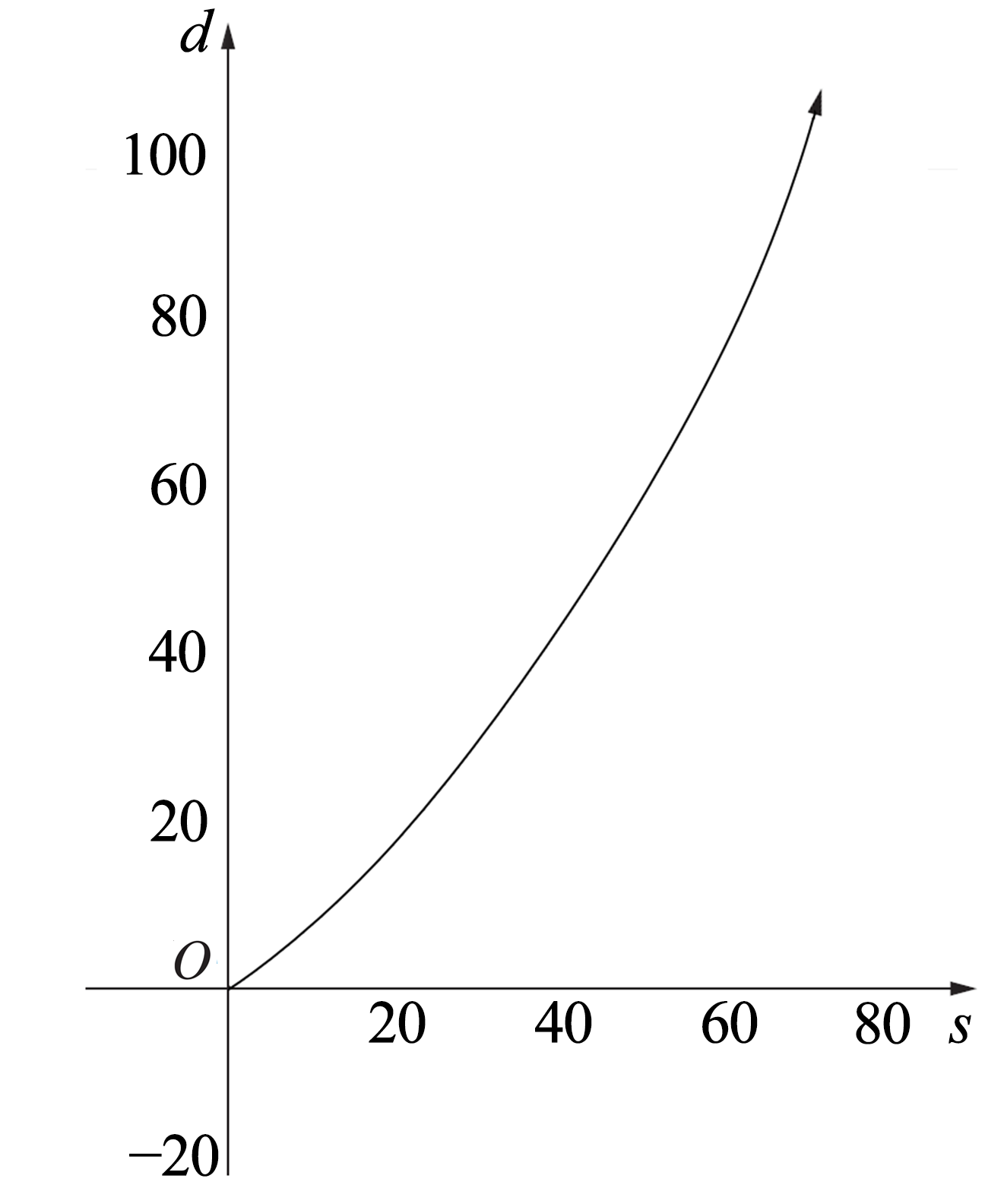

 a.
        2UG-2009-28a-Answer

b.    `54\ text(metres)`

Show Worked Solution
a.

2UG-2009-28a-Answer

b.    `text(When)\ \ s = 40:`

♦ Mean mark 41%
COMMENT: Students could easily have used the graph for calculating part (b).

`d= 0.01(40^2)+ 0.7 (40)= 44\ text(m)`

`text(When)\ \ s = 70:`

`d= 0.01 (70^2) +0.7(70)= 98\ text(m)`


`:.\ text(Difference)= 98-44= 54\ text(metres)`

Financial Maths, STD2 F4 2009 HSC 26c

Margaret borrowed $300 000 to buy an apartment. The interest rate is 6% per annum, compounded monthly. The repayments were set by the bank at $2200 per month for 20 years.

The loan balance sheet shows the interest charged and the balance owing for the first month.

2009 26c

  1. What is the total amount that is to be paid for this loan over the 20 years?   (1 mark)

  2. Find the values of `A` and `B`.   (2 marks)

Show Answers Only

a.    `$528\ 000`

b.    `A = $1496.50, B = $298\ 596.50`

Show Worked Solution
♦ Mean mark 39%
MARKER’S COMMENT: 1 mark allocation flags the answer should not be too involved.

a.    `text(Monthly repayment) = $2200`

`text(# Repayments)\ = 20 xx 12 = 240`

`:.\ text(Total paid)= 2200 xx 240= $528\ 000`


b.    `text(Interest rate monthly)\ = text(6%)/12=\ text(0.5%)`

`A` `= text(Principal at start of month) xx 0.5/100`
  `= 299\ 300 xx 0.5/100= $1496.50`



`B` `=\ text(Principal + interest – repayment)`
  `= 299\ 300 + 1496.50-2200= $298\ 596.50`

Measurement, STD2 M2 2009 HSC 26b

John lives in Denver and wants to ring a friend in Osaka.

  1. In Denver it is 9 pm Monday. Given Osaka has a UTC of +9 and Denver has a UTC of –7, what time and day is it in Osaka then?   (1 mark)

  2. John’s friend in Osaka sent him a text message which happened to take 14 hours to reach him. It was sent at 10 am Thursday, Osaka time.



    What was the time and day in Denver when John received the text?   (2 marks)

Show Answers Only

a.   `1\ text(pm Tuesday)`

b.   `8\ text(am Thursday)`

Show Worked Solution

a.    `text{Denver is behind Osaka time by 16 hours.}`

`:.\ text(Time in Osaka)` `= 9\ text(pm Monday plus 16 hours)`
  `= 1\ text(pm Tuesday)`



♦ Mean mark (b) 34%
b.   `text(Denver is 16 hours behind Osaka)`
   `:.\ text(John will receive the text at 10 am Thursday)`
   `text(less 16 hours plus 14 hours.)`
   `text{(i.e. 8 am Thursday.)}`

Statistics, STD2 S1 2009 HSC 26a

In a school, boys and girls were surveyed about the time they usually spend on the internet over a weekend. These results were displayed in box-and-whisker plots, as shown below.


2UG-2009-26a

  1. Find the interquartile range for boys.   (1 mark)

  2. What percentage of girls usually spend 5 or less hours on the internet over a weekend?   (1 mark)

  3. Jenny said that the graph shows that the same number of boys as girls usually spend between 5 and 6 hours on the internet over a weekend.



    Under what circumstances would this statement be true?   (1 mark)

Show Answers Only

a.    `4`

b.    `text(75% of girls spend 5 hours or less)`

c.    `text(5-6 hours for girls accounts for 25% of all girls)`

`text(5-6 hours for boys accounts for 25% of all boys,)`

`text(as median to upper quartile is 25%.)`

`=>text( This will be the same number only if the number of)`

`text(all girls surveyed equals the number of boys surveyed.)`

Show Worked Solution

a.    `text(Interquartile range)=6-2=4`

♦♦ Mean mark (b): 31%

b.    `text(Upper quartile = 5`

`:.\ text(75% of girls spend 5 or less hours)`

♦♦♦ Mean mark (c): 9%

c.    `text(5-6 hours for girls accounts for 25% of all girls)`

`text(5-6 hours for boys accounts for 25% of all boys,)`

`text(as median to upper quartile is 25%.)`

`=>text( This will be the same number only if the number of)`

`text(all girls surveyed equals the number of boys surveyed.)`

Statistics, STD2 S5 2009 HSC 25d

In Broken Hill, the maximum temperature for each day has been recorded. The mean of these maximum temperatures during spring is 25.8°C, and their standard deviation is 4.2° C.

  1. What temperature has a `z`-score of  –1?   (1 mark)

  2. What percentage of spring days in Broken Hill would have maximum temperatures between 21.6° C and 38.4°C?



    You may assume that these maximum temperatures are normally distributed and that

  3.

    • 68% of maximum temperatures have `z`-scores between –1 and 1
    • 95% of maximum temperatures have `z`-scores between –2 and 2
    • 99.7% of maximum temperatures have `z`-scores between –3 and 3.   (3 marks)

Show Answers Only

a.    `21.6^@`

b.    `text(83.85%)`

Show Worked Solution

a.    `mu = 25.8\ \ \ sigma = 4.2`

`text(Using)\ \ \ \ z` `= (x-mu)/sigma`
`-1` `= (x-25.8)/4.2`
`x-25.8` `= -4.2`
`x` `= 21.6°`



`:.\ 21.6^@\ text(has a)\ z text(-score of)  -1`


b.    `z text(-score of)\ 21.6 =-1`

♦ Mean mark (b) 41%
MARKER’S COMMENT: Many students failed to use the answer to (d)(i), costing them valuable exam time.

`text(Find)\ z text(-score of 38.4)`

`z\ (38.4)` `= (38.4-25.8)/4.2=3`



`text(68% of scores are between)\ z=-1\ text(and 1)`

`=>\ text(34%)\ text(are between)\ z=-1\ text(and 0)`

`text(99.7% of scores are between)\ z=-3\ text(and 3)`

`=>\ text(49.85%)\ text(are between)\ z=0\ text(and 3)`


`:.\ text(% Temps between 21.6° and 38.4°)`

`=\ text(34% + 49.85%)=\ text(83.85%)`

Measurement, 2UG 2009 HSC 25c

There is a lake inside the rectangular grass picnic area `ABCD`, as shown in the diagram.


2UG-2009-25c


  1. Use Simpson’s Rule to find the approximate area of the lake’s surface.   (3 marks)
  2. The lake is 60 cm deep. Bozo the clown thinks he can empty the lake using a four-litre bucket.
  3. How many times would he have to fill his bucket from the lake in order to empty the lake?  (Note that 1 m³ = 1000 L)`.    (2 marks)





Show Answers Only
  1. `508\ text(m²)`
  2. `text(76 200 times)`
Show Worked Solution
(i)     `text(Area of lake = Area of rectangle)\ – text(Area of grass)`
`text(Area of rectangle)` `= 24 xx 55`
  `= 1320\ text(m²)`



`text(Area of grass)` `~~ h/3 [y_0 + 4y_1 + y_2]\ \ \ text(… applied twice)`
  `~~ 12/3 [20 + 4 xx 5 + 10] + 12/3 [35 + 4 xx 22 + 30]`
  `~~ 4[50] + 4[153]`
  `~~ 200 + 612`
  `~~ 812\ text(m²)`



`:.\ text(Area of lake)` `~~ 1320\ – 812`
  `~~ 508\ text(m²)`



♦ Mean mark 44%
STRATEGY: Most students who did calculations in cm² and cm³ made errors. Keeping calculations in metres is much easier here.
(ii)    `V` `= Ah`
    `= 508 xx 0.6`
    `= 304.8\ text(m³)`
    `= 304\ 800\ text(L)\ \ \ text{(since 1 m³ = 1000  L)}`



`text(# Times to fill bucket)` `= (304\ 800)/4`
  `= 76\ 200`



`:.\ text(Bozo would have to fill his bucket)`

`text(76 200 times to empty the lake.)`

Algebra, STD2 A1 2009 HSC 25a

Simplify  `5-2(x + 7)`.   (2 marks)

Show Answers Only

 `-2x-9`

Show Worked Solution
♦ Mean mark 47%
`5-2(x + 7)` `= 5-2x-14`
  `= -2x-9`

Financial Maths, STD2 F4 2013 HSC 28e

Zheng has purchased a computer for $5000 for his company. He wants to compare two different methods of depreciation over two years for the computer.

Method 1: Straight-line with $1250 depreciation per annum.

Method 2: Declining balance with 35% depreciation per annum.

Which method gives the greatest depreciation over the two years? Justify your answer with suitable calculations.   (3 marks)

Show Answers Only

 `text(Method 2)`

Show Worked Solution

`text(Method 1)`

`text(Depreciation over 2 years)` `=2xx 1250`
  `= $2500`


`text(Method 2)`

`text(Depreciation (Year 1) )` `=35text(%) xx 5000`
  `=$1750`
`text(Depreciation (Year 2) )` `=35text(%) xx (5000-1750)`
  `=$1137.50`



`text(Depreciation over 2 years)` `=1750 + 1137.50`
  `=$2887.50`


`:.\ text(Method 2 gives the greater depreciation.)`

Financial Maths, STD2 F4 2013 HSC 28d

Adhele has 2000 shares. The current share price is  $1.50  per share. Adhele is paid a dividend of  $0.30  per share.

  1. What is the current value of her shares?   (1 mark)
  2. Calculate the dividend yield.   (1 mark)
Show Answers Only

a.    `$3000`

b.    `text(20%)`

Show Worked Solution

a.    `text(# Shares)=2000`

`text(Share price) = $1.50`

`:.\ text(Current value)= 2000 xx 1.50=$3000`

♦♦♦ Mean mark (b) 13%

MARKER’S COMMENT: A large majority of students had a poor understanding of the term dividend yield.



b.     `text(Dividend yield)` `=\ text(Dividend)/text(Share price)`
    `= 0.30/1.50=20\%`

Statistics, STD2 S4 2013 HSC 28b

Ahmed collected data on the age (`a`) and height (`h`) of males aged 11 to 16 years.

He created a scatterplot of the data and constructed a line of best fit to model the relationship between the age and height of males.


  1. Determine the gradient of the line of best fit shown on the graph.   (1 mark)

  2. Explain the meaning of the gradient in the context of the data.   (1 mark)

  3. Determine the equation of the line of best fit shown on the graph.   (2 marks)

  4. Use the line of best fit to predict the height of a typical 17-year-old male.   (1 mark)

  5. Why would this model not be useful for predicting the height of a typical 45-year-old male?   (1 mark)

Show Answers Only

a.    `text(Gradient = 6)`

b.    `text(Males should grow 6 cm per year between the ages 11-16.)`

c.    `h = 6a + 80`

d.    `text(182 cm)`

e.    `text(People slow and eventually stop growing after they become adults.)`

Show Worked Solution

a.    `text{Gradient}\ =(176-146)/(16-11)=30/5=6`


b.    `text{Males should grow 6cm per year between the ages 11–16.}`


♦♦ Mean marks of 38%, 26% and 25% respectively for parts (a)-(c).

c.    `text{Gradient = 6,  Passes through (11, 146)}`

`y-y_1` `=m(x-x_1)`
`h-146` `=6(a-11)`
`h` `=6a-66+146`
  `=6a + 80`



d.   `text{Substitute}\ \ a=17\ \ \text{into equation from part (c):}`

`h=(6 xx 17) +80=182`

`:.\ text{A typical 17 year old is expected to be 182cm.}`


e.    `text(People slow and eventually stop growing after they become adults.)`

Measurement, STD2 M2 2013 HSC 27e

Karin is in Athens, which is two hours ahead of Greenwich Mean Time. Marco is in New York, which is five hours behind Greenwich Mean Time.

  1. Karin is going to ring Marco at 10 pm on Tuesday, Athens time.



    What day and time will it be in New York when she rings?   (1 mark)

  2. Marco is going to fly from New York to Athens. His flight will leave on Wednesday at 9 am, New York time, and will take 11 hours.



    What day and time will it be in Athens when he arrives?   (2 marks)

Show Answers Only

a.   `text(3 pm Tuesday)`

b.   `text(Marco arrives on Thurs at 3 am)`

Show Worked Solution

a.    `text(Athens is Greenwich)\ +\ text(2 hours)`

`text(New York is Greenwich)-5\ text(hours)`

`text(Athens is 7 hrs ahead of New York)`

`=>\ text(10 pm Tuesday in Athens) = text(3 pm Tuesday in New York)`


`:.\ text(It will be 3 pm Tuesday when Karin rings)`


b.    `text(Flight takes 11 hours)`

`text(If Marco leaves on Wed at 9 am)`

`=>\ text(He arrives at 9 am + 11 hrs + 7 hrs)`


`:.\ text(Marco arrives on Thurs at 3 am)`

Algebra, STD2 A4 2013 HSC 27a

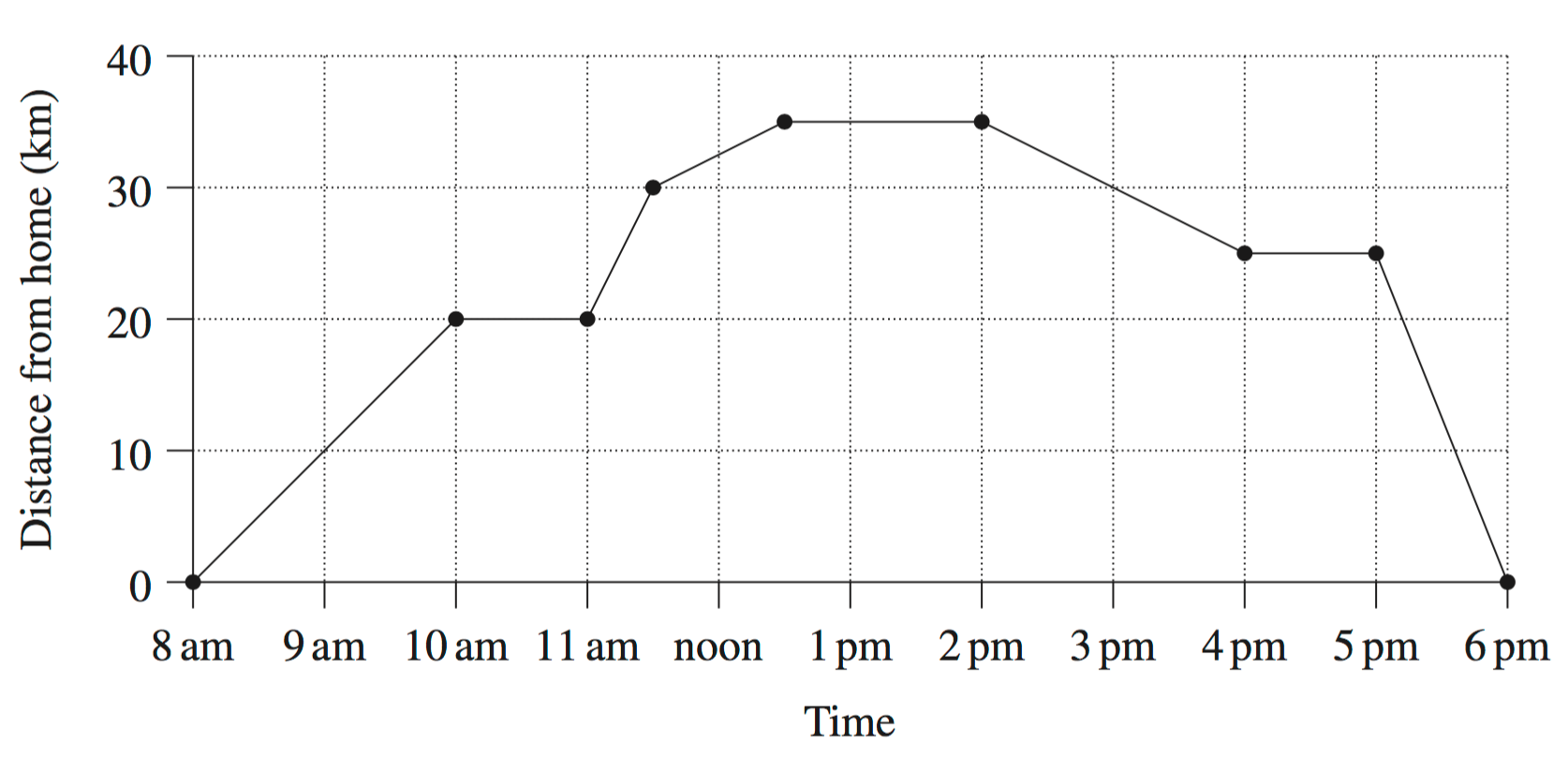

Lucy went for a bike ride. She left home at 8 am and arrived back at home at 6 pm. A graph representing her journey is shown.

2013 27a

  1. What was the total distance that she rode during the day?   (1 mark)

  2. How much time did Lucy spend riding her bike during the day?     (1 mark)

Show Answers Only
  1. `70\ text(km)`
  2. `6.5\ text(hours)`
Show Worked Solution
a.    `text(Total distance)` `=35 +35`
    `= 70\ text(km)`



b.    `text(Time away from home) = 10\ text(hours)`
`text(Time resting)` `= 1 + 1.5+ 1`
  `= 3.5\ text(hours)`



`:.\ text(Time riding)` `=10-3.5`
  `=6.5\ text(hours)`

Statistics, STD2 S1 2013 HSC 26f

Jason travels to work by car on all five days of his working week, leaving home at 7 am each day. He compares his travel times using roads without tolls and roads with tolls over a period of 12 working weeks.

He records his travel times (in minutes) in a back-to-back stem-and-leaf plot.


2013 26f


  1. What is the modal travel time when he uses roads without tolls?  (1 mark)

  2. What is the median travel time when he uses roads without tolls?   (1 mark)

  3. Describe how the two data sets differ in terms of the spread and skewness of their distributions.   (2 marks)

Show Answers Only

a.    `52\ text(minutes)`

b.    `50.5\ text(minutes)`

c.    `text(Spread)`

`text{Times without tolls have a tighter spread (range = 22)}`

`text{than times with tolls (range = 55).}`

`text(Skewness)`

`text(Times without tolls shows virtually no skewness while`

`text(times with tolls are positively skewed.)`

Show Worked Solution

a.  `text(Modal time) = 52\ text(minutes)`

♦ Mean mark 36%
MARKER’S COMMENT: Finding a median proved challenging for many students. Take note!


b.  `text(30 times with no tolls)`

`text(Median)` `=\ text(Average of 15th and 16th)`
  `=(50 + 51)/2= 50.5\ text(minutes)`



♦ Mean mark 39%


 c.  `text(Spread)`

`text{Times without tolls have a much tighter}`

`text{spread (range = 22) than times with tolls}`

`text{(range = 55).}`

`text(Skewness)`

`text(Times without tolls shows virtually no skewness)`

`text(while times with tolls are positively skewed.)`

Statistics, STD2 S1 2013 HSC 26b

Write down a set of six data values that has a range of 12, a mode of 12 and a minimum value of 12.   (2 marks)

Show Answers Only

 `12, 12, 12, 16, 18, 24`

Show Worked Solution

`12, 12, 12, 16, 18, 24`

`text(NB. There are many correct solutions.)`



Measurement, STD2 M6 2013 HSC 26a

Triangle `PQR` is shown.

2013 26a

Find the size of angle `Q`, to the nearest degree.    (2 marks)

Show Answers Only

`110^@\ \ \ text{(nearest degree)}`

Show Worked Solution
♦ Mean mark 47%

`text(Using Cosine rule)`

`cos /_Q` `= (a^2 + b^2-c^2)/(2ab)`
  `= (53^2 + 66^2-98^2)/(2xx53xx66)`
  `=-0.3486…`



`:. /_Q` `= 110.4034…`
  `= 110^@\ \ \ text{(nearest degree)}`

Statistics, STD2 S5 2010 HSC 24c

The marks in a class test are normally distributed. The mean is 100 and the standard deviation is 10.

  1. Jason's mark is 115. What is his  `z`-score?   (1 mark)

  2. Mary has a `z`-score of 0. What mark did she achieve in the test?   (1 mark)

  3. What percentage of marks lie between 80 and 110?



    You may assume the following:



    • 68% of marks have a `z`-score between –1 and 1



    • 95% of marks have a `z`-score between  –2 and 2



    • 99.7% of marks have a `z`-score between –3 and 3.   (2 marks)

Show Answers Only

a.    `1.5`

b.    `100`

c.    `81.5%`

Show Worked Solution

a.    ` text(Given) \ \ mu=100,\ \ sigma=10`

MARKER’S COMMENT: Too may students had calculator errors in this question, giving away easy marks. BE CAREFUL!

`text(If mark is 115,)`

`ztext(-score)` `=(115-mu)/sigma`
  `=(115-100)/100=1.5`


b.    `z text(-score = 0 when mark equals the mean)`

`:.\ text(Mary’s score was)\ 100`



♦ Mean mark 42%
c.    `ztext(-score of)\ 110` `=(110-100)/10=1`
`ztext(-score of)\ 80` `=(80-100)/10=–2`


`text(68% of marks lie between)\ z=-1 \ text(and)\  1`

 `=>text(34%  lie between)\ z= 0\ text(and)\ 1`

`text(95%  of marks lie between)\ z=-2 \ text(and)\  2`

 `=> text(47.5%  lie between)\ z=-2\ text(and)\ 0`



`:.\ text(% marks between 80 and 110`

`=\ text(34% + 47.5%)=\ text(81.5%)`

Algebra, STD2 A1 2010 HSC 24a

Fred tried to solve this equation and made a mistake in Line 2.

\begin{array}{rl}
4(y+2)-3(y+1)= -3\ & \ \ \ \text{Line 1} \\
4y+8-3y+3= -3\ &\ \ \ \text{Line 2} \\
y+11 =-3\ &\ \ \ \text{Line 3} \\
y =-14& \ \ \ \text{Line 3}
\end{array}

Copy the equation in Line 1.

  1. Rewrite Line 2 correcting his mistake.   (1 mark)

  2. Continue your solution showing the correct working for Lines 3 and 4 to solve this equation for `y`.   (1 mark)

Show Answers Only

a.   `4y+8+3y-3=-3`

b.   `y+5=-3`

`y=-8`

Show Worked Solution
a.     `4(y+2)-3(y+1)` `=-3\ \ \ \ \ \ text(Line)\ 1`
  `4y+8-3y-3` `=-3\ \ \ \ \  text(Line)\ 2`



b.     `y+5` `=-3\ \ \ \ \ \ text(Line)\ 3`
  `y` `=-8\ \ \ \ \ \ text(Line)\ 4`

Measurement, STD2 M7 2010 HSC 23b

The elevation and floor plan of a building are shown.

2010 23b

Calculate the area of the floor of this building in square metres.   (2 marks)

Show Answers Only

`46\ text(m)^2`

Show Worked Solution
MARKER’S COMMENT: Less errors were made by students who converted to metres FIRST, before calculating the area.
`text(Floor Area)` `=text(Area)\ 1+text(Area)\ 2`
  `=(8xx5)+(2xx3) \ \ \ \ text{(1 m = 1000 mm)}`
  `=46\ text(m)^2`

Algebra, STD2 A1 2010 HSC 18 MC

Which of the following correctly express  `x`  as the subject of  `a=(nx)/5` ?

  1. `x=(an)/5`
  2. `x=(5a)/n`
  3. `x=(a-5)/n`
  4. `x=5a-n`
Show Answers Only

`B`

Show Worked Solution
`a` `=(nx)/5`
`nx` `=5a`
`x` `=(5a)/n`


`=>  B`

Measurement, STD2 M2 2010 HSC 15 MC

In this diagram of the Earth, `O` represents the centre and `B` lies on both the Equator and the Greenwich Meridan.


What is the latitude and longitude of point `A`?

  1.    `\text{30°N  110°E}`
  2.   `\text{30°N  110°W}`
  3.   `\text{60°N  110°E}`
  4.   `\text{60°N  110°W}`
Show Answers Only

`A`

Show Worked Solution

 `text{Since}\ A\ \text{is 30° North of the Equator}`

   `=> text{Latitude}\ =30^circ \text{N}`

  `text{Since}\ A\ \text{is 110° East of Greenwich}`

   `=>text{Longitude}\ =110^circ \text{E}`


`:. \ \text{Coordinates of}\ A\ \text{= (30°N, 110°E)}`

`=>  A`

Statistics, STD2 S1 2009 HSC 24c

The Australian Bureau of Statistics provides the NSW government with data on the age of residents living in different areas across the state. After analysing this data, the government makes decisions relating to the provision of services or facilities.

Give an example of a possible decision the government might make and describe how the data might justify this decision.   (2 marks)

Show Answers Only

`text(The data might show that a large number of retirees live in a)`

`text(particular area. The government could decide to increase)`

`text(public transport in the area as the older retirees get, the more)`

`text(they rely on public transport.)`

Show Worked Solution

`text{One example (of many):}`

`text(The data might show that a large number of retirees live in a)`

`text(particular area. The government could decide to increase)`

`text(public transport in the area as the older retirees get, the more)`

`text(they rely on public transport.)`

Statistics, STD2 S1 2009 HSC 24b

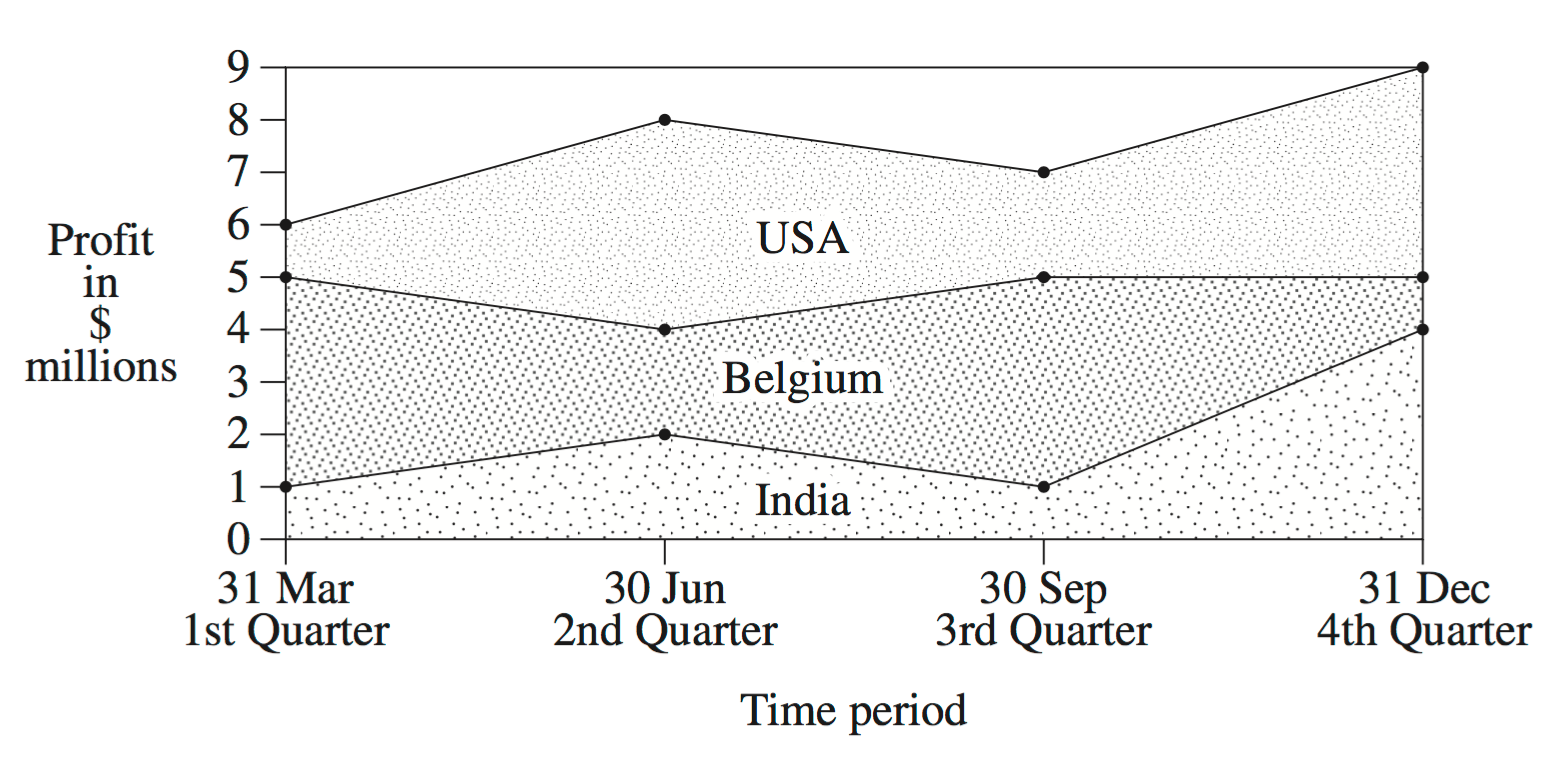

Tayvan is an international company that reports its profits in the USA, Belgium and India at the end of each quarter. The profits for 2008 are shown in the area chart.

2009 24b

  1. What was the total profit for Tayvan on June 30?   (1 mark)
  2. What was Tayvan’s profit in Belgium on March 31?     (1 mark)
Show Answers Only
  1. `$8\ 000\ 000\ \ text{(from graph)}`
  2. `$4\ 000\ 000`
Show Worked Solution
MARKER’S COMMENT: Area charts provide cumulative totals. Many students did not know this and incorrectly answered 14 million.
(i)     `$8\ 000\ 000\ \ \ text{(from graph)}`



(ii)    `text{Belgium profit (30 March)}`
  `= $5\ 000\ 000-$1\ 000\ 000`
  `= $4\ 000\ 000`

Statistics, STD2 S1 2009 HSC 24a

The diagram below shows a stem-and-leaf plot for 22 scores.


2UG-2009-24a


  1.  What is the mode for this data?   (1 mark)

  2.  What is the median for this data?   (1 mark)

Show Answers Only

a.   `78`

b.   `46`

Show Worked Solution

a.    `text(Mode) = 78`

b.    `22\ text(scores)`

`=>\ text(Median is the average of 11th and 12th scores)`

`:.\ text(Median)= (45 + 47)/2=46`

Financial Maths, STD2 F1 2009 HSC 23d

The tables below show information about fees for MyBank accounts.

2009 23d

  1. Li has a Cheap Access Account. During September, he made



        • five withdrawals using internet banking
        • two cash withdrawals from a MyBank ATM
        • four EFTPOS purchases
        • two cash withdrawals at other ATMs.



    What was the total amount that Li paid in bank fees for the month of September?   (3 marks)

  2. In October, what is the maximum that Li could pay in withdrawal fees to ensure that a Cheap Access Account costs him no more than a Free Access Account?    (1 mark)

Show Answers Only

a.    `$12.50`

b.    `$3`

Show Worked Solution
a.    `text(Withdrawals from internet)` `5 xx 0.30` `= 1.50`
  `text(Withdrawals from MyBank ATM)` `2 xx 0.50` `= 1.00`
  `text(EFTPOS purchases)` `4 xx 0.50` `=2.00`
  `text(Withdrawal from other ATMs)` `2 xx 2.00` `=4.00`
  `text(Account Fee)` `1 xx 4.00` `= 4.00`



`:.\ text(Total bank fees in Sep)`

`= 1.50 + 1.00 + 2.00 + 4.00 + 4.00= $12.50`

b.   `text(Monthly account fee (Cheap Access) ) = $4`

♦ Mean mark 47%
MARKER’S COMMENT: Many students misinterpreted this question. Read carefully!

`text(Monthly account fee (Free Access) ) =$7`

`text(Difference) = 7 -4 = $3`


`:.\ text(Maximum Li could pay in withdrawal fees)`

`text(is $3 to ensure Cheap Access costs no more.)`

Measurement, STD2 M1 2009 HSC 23c

The diagram shows the shape and dimensions of a terrace which is to be tiled.


  1. Find the area of the terrace.   (2 marks)

  2. Tiles are sold in boxes. Each box holds one square metre of tiles and costs $55. When buying the tiles, 10% more tiles are needed, due to cutting and wastage.



    Find the total cost of the boxes of tiles required for the terrace.   (2 marks)

Show Answers Only

a.   `13.77\ text(m)^2`

b.   `$880`

Show Worked Solution
a.
`text(Area)` `=\ text(Area of big square – Area of 2 cut-out squares`
  `= (2.7 + 1.8) xx (2.7 + 1.8)\-2 xx (1.8 xx 1.8)`
  `= 20.25\-6.48= 13.77\ text(m²)`


b.    `text(Tiles required)= (110 text{%}) xx 13.77= 15.147\ text(m)^2`

`=>\ text(16 boxes are needed)`

`:.\ text(Total cost of boxes)=16 xx $55= $880`

Measurement, STD2 M6 2009 HSC 23a

The point `A` is 25 m from the base of a building. The angle of elevation from `A` to the top of the building is 38°.


  1. Show that the height of the building is approximately 19.5 m.   (1 mark)

  2. A car is parked 62 m from the base of the building.



    What is the angle of depression from the top of the building to the car?



    Give your answer to the nearest minute.   (2 marks)

Show Answers Only

a.    `text{Proof  (See Worked Solutions)}`

b.    `17^@28^{′}`

Show Worked Solution

a.    `text(Need to prove height (h) ) ~~ 19.5\ text(m)`

`tan 38^@` `= h/25`
`h` `= 25 xx tan38^@`
  `= 19.5321…`
  `~~ 19.5\ text(m)\ \ text(… as required.)`



b.

`text(Let)\ \ /_ \ text(Elevation (from car) ) = theta`

♦♦ Mean mark 33%
MARKER’S COMMENT: If >30 “seconds”, round to the next “minute”.
`tan theta` `= h/62`
  `= 19.5/62`
  `= 0.3145\ …`
`:. theta` `= 17.459\ …`
  `= 17^@27^{′}33^{″}..`
  `=17^@28^{′}\ \ text{(nearest minute)}`



`:./_ \ text(Depression to car) =17^@28^{′}\ \ text{(alternate to}\ theta text{)}`

Measurement, STD2 M1 2009 HSC 19 MC

Two identical spheres fit exactly inside a cylindrical container, as shown.


The diameter of each sphere is 12 cm.

What is the volume of the cylindrical container, to the nearest cubic centimetre?

  1. `1357\ text(cm)^3`
  2. `2714\ text(cm)^3`
  3. `5429\ text(cm)^3`
  4. `10\ 857\ text(cm)^3`
Show Answers Only

`B`

Show Worked Solution

`text(S)text(ince diameter sphere = 12 cm) `

`=>\ text(Radius of cylinder = 6 cm)`

`text(Height of cylinder)` `= 2 xx text(diameter of sphere)`
  `= 2 xx 12= 24\ text(cm)`
`:.\ text(Volume cylinder)` `= pi r^2 h= pi xx 6^2 xx 24`
  `= 2714.336…\ text(cm³)`


`=>  B`

Data, 2UG 2009 HSC 18 MC

Huong used the ‘capture–recapture’ technique to estimate the number of trout living in a dam.

• She caught, tagged and released 20 trout.

• Later she caught 36 trout at random from the same dam.

• She found that 8 of these 36 trout had been tagged.

What estimate should Huong give for the total number of trout living in this dam, based on her use of the ‘capture–recapture’ technique?

(A)   `56`

(B)   `90`

(C)  `160`

(D)  `162`

Show Answers Only

`B`

Show Worked Solution
TIP: Work out a set structure to answer these types of questions efficiently. One example is shown in the Worked Solution where the Capture and Recapture are both stated as fractions <1 and then equated.

`text(Let population) = P`

`text(Capture) = 20/P`

`text(Recapture) = 8/36`

`=> 20/P` `= 8/36`
`8P` `= 36 xx 20`
`P` `= (36 xx 20)/8`
  `= 90`

`=>  B`

Algebra, 2UG 2009 HSC 15 MC

Which of the following correctly expresses  `n`  as the subject of  `v = (3mn^2)/r` ?

(A)  `n = +- sqrt(rv)/(3m)`

(B)  `n = +- r sqrt(v/(3m))`

(C)  `n = +- (r sqrtv)/(3m)`

(D)  `n = +- sqrt((rv)/(3m))`

Show Answers Only

`D`

Show Worked Solution
`v` `= (3mn^2)/r`
`3mn^2` `= rv`
`n^2` `= (rv)/(3m)`
`n` `= +- sqrt((rv)/(3m))`

`=>  D`

Measurement, STD2 M1 2009 HSC 11 MC

 What is the area of the shaded part of this quadrant, to the nearest square centimetre?

  1. 34 cm²
  2. 42 cm²
  3. 50 cm²
  4. 193 cm²
Show Answers Only

`B`

Show Worked Solution
`text(Area)` `=text(Area of Sector)-text(Area of triangle)`
  `= (theta/360 xx pi r^2)-(1/2 xx bh)`
  `= (90/360 xx pi xx 8^2)-(1/2 xx 4 xx 4)`
  `= 50.2654…-8= 42.265…\ text(cm²)`


`=>  B`

Probability, STD2 S2 2009 HSC 9 MC

A wheel has the numbers 1 to 20 on it, as shown in the diagram. Each time the wheel is spun, it stops with the marker on one of the numbers.


The wheel is spun 120 times.

 How many times would you expect a number less than 6 to be obtained?

  1. `20`
  2. `24`
  3. `30`
  4. `36`
Show Answers Only

`C`

Show Worked Solution

`P(text(number < 6) ) = 5/20 = 1/4`

`:.\ text(Expected times)= 1/4 xx text(times spun)= 1/4 xx 120= 30`

`=>  C`

Probability, STD2 S2 2009 HSC 8 MC

Some men and women were surveyed at a football game. They were asked which team they supported. The results are shown in the two-way table.


2UG-2009-8MC

What percentage of the women surveyed supported `Team\ B`, correct to the nearest percent?

  1. 23%
  2. 45%
  3. 47%
  4. 55%
Show Answers Only

`D`

Show Worked Solution

`text(% Women for)\ Team\ B= (text(# Women for)\ Team\ B)/text(# Women surveyed)= 90/165= 54.54\ … %`

`=>  D`

Measurement, STD2 M6 2009 HSC 4 MC

Which is the correct expression for the value of `x` in this triangle?




  1. `8/cos30°`
  2. `8/sin30°`
  3. `8 xx cos30°`
  4. `8 xx sin30°`
Show Answers Only

`A`

Show Worked Solution
`cos30^@` `= 8/x`
`:.\ x` `= 8/cos30^@`


`=>  A`

Probability, STD2 S2 2010 HSC 12 MC

A group of 347 people was tested for flu and the results were recorded. The flu test  results are not always accurate.

2010 12 MC

A person is selected at random from the tested group.

What is the probability that their test result is accurate, to the nearest per cent?

  1.    21%
  2.    22%
  3.    95%
  4.    96%
Show Answers Only

`C`

Show Worked Solution
`P\ text((Test accurate))` `=text(Accurate readings)/text(Total tested)`
  `=(72+256)/347=94.5244…%`

`=>  C`

Measurement, STD2 M6 2010 HSC 9 MC

Three towns `P`, `Q`  and `R` are marked on the diagram.

The distance from `R` to `P` is 76 km.  `angle RQP=26^circ`  and  `angle RPQ=46^@.`




  What is the distance from  `P`  to  `Q`  to the nearest kilometre?

  1. `100\ text(km)`
  2. `125\ text(km)`
  3. `165\ text(km)`
  4. `182\ text(km)`
Show Answers Only

`C`

Show Worked Solution
`angle QRP` `=180-(26+46)     (180^circ\ text(in) \ Delta)`
  `=108^circ`


`text{Using sine rule}`

`(PQ)/sin108^circ` `=76/sin26^circ`
`PQ` `=(76xxsin108^circ)/sin26^circ=164.88\ text(km)`

`=>  C`

Algebra, STD2 A4 2012 HSC 30c

In 2010, the city of Thagoras modelled the predicted population of the city using the equation

`P = A(1.04)^n`.

That year, the city introduced a policy to slow its population growth. The new predicted population was modelled using the equation

`P = A(b)^n`.

In both equations, `P` is the predicted population and `n` is the number of years after 2010.

The graph shows the two predicted populations.


  1. Use the graph to find the predicted population of Thagoras in 2030 if the population policy had NOT been introduced.   (1 mark)

  2. In each of the two equations given, the value of `A` is 3 000 000.
  3. What does `A` represent?   (1 mark)

  4. The guess-and-check method is to be used to find the value of `b`, in  `P = A(b)^n`.
  5. i.  Explain, with or without calculations, why 1.05 is not a suitable first estimate for `b`.   (1 mark)

  6. ii. With  `n = 20`  and  `P = 4\ 460\ 000`, use the guess-and-check method and the equation  `P = A(b)^n`  to estimate the value of `b` to two decimal places. Show at least TWO estimate values for `b`, including calculations and conclusions.   (2 marks)

  7. The city of Thagoras was aiming to have a population under 7 000 000 in 2050. Does the model indicate that the city will achieve this aim?
  8. Justify your answer with suitable calculations.   (2 marks)

Show Answers Only

a.    `6\ 600\ 000`

b.    `text(The population in 2010.)`

c.i   `\text(See Worked Solution)`

c.ii  `b = 1.03, 1.02`

d.    `text(See Worked Solution)`

Show Worked Solution

a.    `text(2030 occurs at)\ \ n = 20\ \ text(on the)\ x text(-axis.)`

`text(Expected population (no policy) ) = 6\ 600\ 000`


b.    `A\ text(represents the population when)\ \ n=0`

`text(which is the population in 2010.)`


c.i   `P = A(1.05)^n\ text(would be steeper and lie above)`

`P = A(1.04)^n\ text(since)\ 1.05 > 1.04`


c.ii  `text(Let)\ \ b = 1.03`

`P= 3\ 000\ 000 xx 1.03^20= 5\ 418\ 000`


`text(Let)\ \ b = 1.02`

`P= 3\ 000\ 000 xx 1.02^20= 4\ 457\ 800`

`:. b = 1.02`


d.    `text(In 2050,)\ n = 40`

`P` `= 3\ 000\ 000 xx 1.02^40`
  `= 6\ 624\ 119\ \ (text(nearest whole))`


`text(S)text(ince the population is below 7 million,)`

`text(the model will achieve the aim.)`

Algebra, STD2 A4 2012 HSC 30b

A golf ball is hit from point `A` to point `B`, which is on the ground as shown. Point `A` is 30 metres above the ground and the horizontal distance from point `A` to point `B` is  300 m.


The path of the golf ball is modelled using the equation

`h = 30 + 0.2d-0.001d^2`

where

`h` is the height of the golf ball above the ground in metres, and

`d` is the horizontal distance of the golf ball from point `A` in metres.

The graph of this equation is drawn below.



  1. What is the maximum height the ball reaches above the ground?   (1 mark)

  2. There are two occasions when the golf ball is at a height of 35 metres.



    What horizontal distance does the ball travel in the period between these two occasions?   (1 mark)

  3. What is the height of the ball above the ground when it still has to travel a horizontal distance of 50 metres to hit the ground at point `B`?   (1 mark)

  4. Only part of the graph applies to this model.
  5. Find all values of `d` that are not suitable to use with this model, and explain why these values are not suitable.   (2 marks)

Show Answers Only

a.    `40 text(m)`

b.    `140 text(m)`

c.    `text(17.5 m)`

d.    `d < 0\ text(and)\ d>300`

Show Worked Solution

a.    `text(Max height) = 40 text(m)`


b.    `text(From graph:)`

`h = 35\ text(when)\ \ x = 30\ \ text(and)\ \ x = 170`

`:.\ text(Horizontal distance)= 170-30= 140\ text(m)`


c.    `text(Ball hits ground at)\ \ x = 300`

MARKER’S COMMENT: Responses for (c) in the range  `17<=\ h\ <=18`  were deemed acceptable.

`text(Find)\ y\ text(when)\ \ x = 250:`

`text(From graph,)\ y = 17.5\ text(m)`

`:.\ text(Height of ball is 17.5 m at a horizontal distance of 50 m before)\ B.`


d.    `text(Values of)\ d\ text(not suitable:)`

♦♦♦ Mean mark (d) 12%
MARKER’S COMMENT: Many students did not refer to the domain `d>300` as unsuitable to the model.

`text(If)\ d < 0 text(, it assumes the ball is hit away from point)\ B.`

`\text{This is not the case in our example.}`


`text(If)\ d > 300 text(,)\ h\ text(becomes negative which is not possible)`

`\text(– i.e. the ball cannot go below ground level.)`

Financial Maths, STD2 F1 2012 HSC 29d

Su-Lin pays a monthly contribution of 5% of her salary into a superannuation fund. Her salary is  `$81\ 600`  per annum.

What is the amount of Su-Lin’s monthly contribution?   (2 marks)

Show Answers Only

`$340`

Show Worked Solution

`text(Annual super cont.)=5 text(%) xx 81\ 600= $4080`

`:.\ text(Monthly contribution)= 4080/12= $340`

Statistics, STD2 S3 2012 HSC 29a*

Tourists visit a park where steam erupts from a particular geyser.

The brochure for the park has a graph of the data collected for this geyser over a period of time.

The graph shows the duration of an eruption and the time until the next eruption, timed from the end of one eruption to the beginning of the next.




  1. Tony sees an eruption that lasts 4 minutes. Based on the data in the graph, what is the minimum time that he can expect to wait for the next eruption? (1 mark)

  2. Julia saw two consecutive eruptions, one hour apart. Based on the data in the graph, what was the longest possible duration of the first eruption that she saw?    (1 mark)

  3. What does the graph suggest about the association between the duration of an eruption and the time to the next eruption? (1 mark)

Show Answers Only
  1. `70\ text(minutes)`
  2. `3\ text(minutes)`
  3. `text(It suggests that the longer an eruption lasts for, the longer)`

  4.

    `text(you will wait until the next one.)`

Show Worked Solution

i.  `70\ text(minutes)\ \ text{(refer to graph)}`



ii.  `text(3 minutes)`

♦ Mean mark (b) 47%

`text(Locate 60 minutes on)\ y text(-axis and look for longest)`

`text{duration (i.e. the largest}\ x text{-axis value)}\ text(for that)`

`text(given)\ y text(-value.)`



iii.  `text(It suggests that the longer an eruption lasts for,)`

`text(the longer you will wait until the next one, or)`

`text(there is a positive correlation between the length)`

`text(of an eruption and the time until the next one.)`

Financial Maths, 2UG 2012 HSC 28e

Matthew bought a laptop priced at  $2800. He paid a 10% deposit and made monthly repayments of  $95.20  for 3 years.

What annual flat rate of interest was Matthew charged? Justify your answer with suitable calculations.   (4 marks)

Show Answers Only

`text(12% p.a.)`

Show Worked Solution

`text(Find)\ \ r:`

`text(Loan)` `= text(price)\-text(deposit)`
  `= 2800\-(text{10%} xx 2800)`
  `= $2520`



`text(Repayments)` `= 95.20 xx 3 xx 12`
  `= $3427.20`

`text(Interest paid)` `= 3427.20\-2520`
  `= $907.20`



`text(Using)\ \ I` `= Prn`
`907.20` `= 2520 xx r xx 3`
`:.r` `= 907.20/(2520 xx 3)`
  `= 0.12`
  `= 12 text(% p.a.)`

Probability, STD2 S2 2012 HSC 27e

A box contains 33 scarves made from two different fabrics. There are 14 scarves made from silk (S) and 19 made from wool (W).
Two girls each select, at random, a scarf to wear from the box.

  1. Complete the probability tree diagram below.   (2 marks)



  2. Calculate the probability that the two scarves selected are made from silk.   (1 mark)

  3. Calculate the probability that the two scarves selected are made from different fabrics.   (2 marks)

Show Answers Only

a.




b.    `P\ text{(2 silk)}= 91/528`

c.    `P\ text{(different fabrics)}= 133/264`

Show Worked Solution

a.

♦ Mean mark (a) 43%.
b.    `P\ text{(2 silk)}` `= P(S_1) xx P(S_2)`
  `= 14/33 xx 13/32= 91/528`



c.    `P\ text{(different)}` `= P (S_1,W_2) + P(W_1,S_2)`
  `= (14/33 xx 19/32) + (19/33 xx 14/32)`
  `= 532/1056= 133/264`
♦ Mean mark (c) 41%.
MARKER’S COMMENT: In better responses, students multiplied along the branches and then added these two results together

Financial Maths, STD2 F1 2012 HSC 27a

Tai earns a gross weekly wage of  $1024. Each week her deductions are:

    •    tax instalment of  $296.40
    •    health fund contribution of  $24.50
    •    union fees of  $15.80.

        She also pays  $3640  over the year as her share of the household expenses.

        What percentage of her net wage does Tai pay for household expenses?   (3 marks)

Show Answers Only

`text{10.18%}`

Show Worked Solution
MARKER’S COMMENT: The best answers used clear steps in calculating deductions and net wages, and kept wages in their weekly form until the last step.

`text(Gross wage)= text($1024 per week)`

`text(Weekly Deductions)= 296.40 + 24.50 + 15.80= $336.70`

`text(Net Weekly Wage)=1024-336.70=$687.30`

`text(Annual Net Wage)=52xx687.30=$35\ 739.60`

`:.\ text{Household expenses}= 3640/(35\ 739.60)= 10.18478…=\ text{10.18%   (to 2 d.p.)}`



Statistics, STD2 S1 2012 HSC 28d

The test results in English and Mathematics for a class were recorded and displayed in the box-and-whisker plots.


  1. What is the interquartile range for English?   (1 mark)

  2. Compare and contrast the two data sets by referring to the skewness of the distributions and the measures of location and spread.   (3 marks)

Show Answers Only

a.    `text{IQR}_text{(English)}\ = 80-50=30`

b.    `text(Skewness)`

  • `text(English has greater negative skew)`
  • `text(Maths is more normally distributed)`

`text(Location and Spread)`

  • `text(English has a range of 85, Maths has 40.)`
  • `text{English has larger IQR than Maths (30 vs 15)}`
  • `text{Maths’ median (75) is higher than English (70)}`
  • `text{Same upper quartile marks (80)}`
  • `text(English has highest and lowest individual mark)`
Show Worked Solution

a.    `text{IQR}_text{(English)}\ = 80-50=30`

♦ Mean mark (b) 35%
MARKER’S COMMENT: Markers are looking for students to use the correct language of location and spread such as mean, median, interquartile range, standard deviation and skewness.

b.  `text(Skewness)`

  • `text(English has greater negative skew)`
  • `text(Maths is more normally distributed)`

`text(Location and Spread)`

  • `text(English has a range of 85, Maths has 40.)`
  • `text{English has larger IQR than Maths (30 vs 15)}`
  • `text{Maths’ median (75) is higher than English (70)}`
  • `text{Same upper quartile marks (80)}`
  • `text(English has highest and lowest individual mark)`

Measurement, 2UG 2011 HSC 13 MC

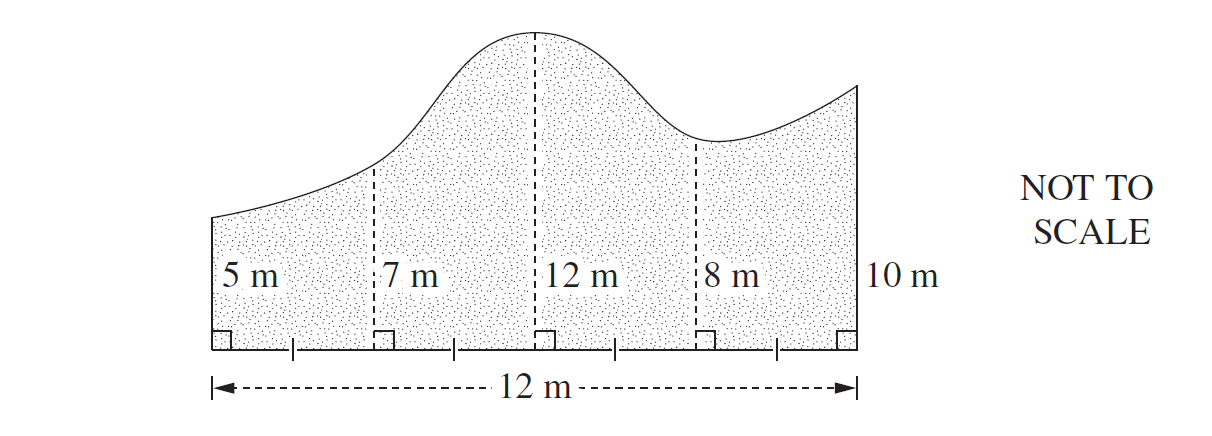

The diagram represents a field.

2UG 2011 13

What is the area of the field, using two applications of Simpson’s rule?

(A) `\ 99\ text(m²)`

(B) `126\ text(m²)`

(C) `198\ text(m²)`

(D) `396\ text(m²)`

Show Answers Only

`A`

Show Worked Solution
`A` `=h/3(y_0+4y_1+y_2)\ …\ text(applied twice)`
  `=3/3(5+4xx7+12)+3/3(12+4xx8+10)`
  `=45+54`
  `=99\ text(m²)`

`=>A`

Algebra, 2UG 2011 HSC 12 MC

Which of the following expresses `(6x^2y)/3-:(2y)/5` in its simplest form?

  1. `5x^2`
  2. `30x^2y`
  3. `1/(5x^2)`
  4. `5/(4x^2y^2)`
Show Answers Only

`A`

Show Worked Solution
ALGEBRA TIP: When you divide by a fraction, invert the divisor and multiply as shown in the Worked Solution.
`(6x^2y)/3-:(2y)/5` `=(6x^2y)/3xx5/(2y)`
  `=(30x^2y)/(6y)`
  `=5x^2`


`=>A`

Statistics, STD2 S1 2011 HSC 11 MC

The sets of data, `X` and `Y`, are displayed in the histograms.

2UG 2011 11

Which of these statements is true?

  1. `X` has a larger mode and `Y ` has a larger range.
  2. `X` has a larger mode and the ranges are the same.
  3. The modes are the same and `Y` has a larger range.
  4. The modes are the same and the ranges are the same.
Show Answers Only

`B`

Show Worked Solution
♦ Mean mark 47%

`text(Mode of)\ X=9`

`text(Range of)\ X=9-3=6`

`text(Mode of)\ Y=8`

`text(Range of)\ Y=11-5=6`

`:. X\ text(has a larger mode and ranges are the same)`

`=>B`

Statistics, STD2 S4 2011 HSC 8 MC

In which graph would the data have a correlation coefficient closest to  – 0.9?

2UG 2011 8

Show Answers Only

`D`

Show Worked Solution

`text{Data needs to show a strong negative correlation}`

`text{(i.e. top left to lower right.)}`

`=>D`

Measurement, STD2 M2 2011 HSC 3 MC

Perth in Western Australia is 8 hours ahead of Coordinated Universal Time (UTC). Cape Town in South Africa is 2 hours ahead of UTC.

What is the time in Cape Town when it is 1 pm in Perth?

  1.  3 am
  2. 7 am
  3. 7 pm
  4. 11 pm
Show Answers Only

`B`

Show Worked Solution

`text(Perth is 6 hrs ahead of Cape Town)`

`:.\ 1 text(pm in Perth = 7 am in Cape Town)`

`=> B`

Probability, STD2 S2 2011 HSC 2 MC

Which of the following could be the probability of an event occurring?

  1. `1`
  2. `6/5`
  3. `1.27`
  4. `text(145%)`
Show Answers Only

`A`

Show Worked Solution

`text(Probabilities must lie between 0 and 1 inclusive.)`

`=>A`
